Haltech Fuel Level Sender Signal Conditioner - ( Haltech HT-038002 )

Haltech Fuel Level Sender Signal Conditioner

If you’re running a Haltech ECU or other standalone engine management system with a digital dash, you’ve probably discovered that reading your factory fuel level sender directly often doesn’t yield consistent or accurate values. That’s exactly the problem this signal conditioner solves.

We found through our own testing — using a Haltech Elite 2500 paired with an AEM CD-7 dash — that without this signal conditioner, we simply couldn’t get reasonable or stable readings from the stock fuel level sender. Once installed, this box provided a clean, reliable voltage output that the ECU and dash could easily interpret, giving accurate and consistent fuel level data.

How It Works

This unit converts the factory sender’s resistance-based (OHM) signal into a smooth voltage-based output. It also buffers and slightly delays the signal, preventing jumpy readings caused by fuel slosh or electrical noise. The conditioner includes its own voltage reference source, so your ECU no longer depends on unstable resistance values.

For ECUs with strong internal pull-up resistors (like some Haltech units), this box eliminates the issue of limited or skewed range — ensuring your tank reads full to empty properly instead of showing only half or erratic levels.

Technical Notes

• Compatible with most aftermarket ECUs and digital dashes

• Converts resistance (OHM) signal to voltage (V) output

• Internal buffering for smoother readings

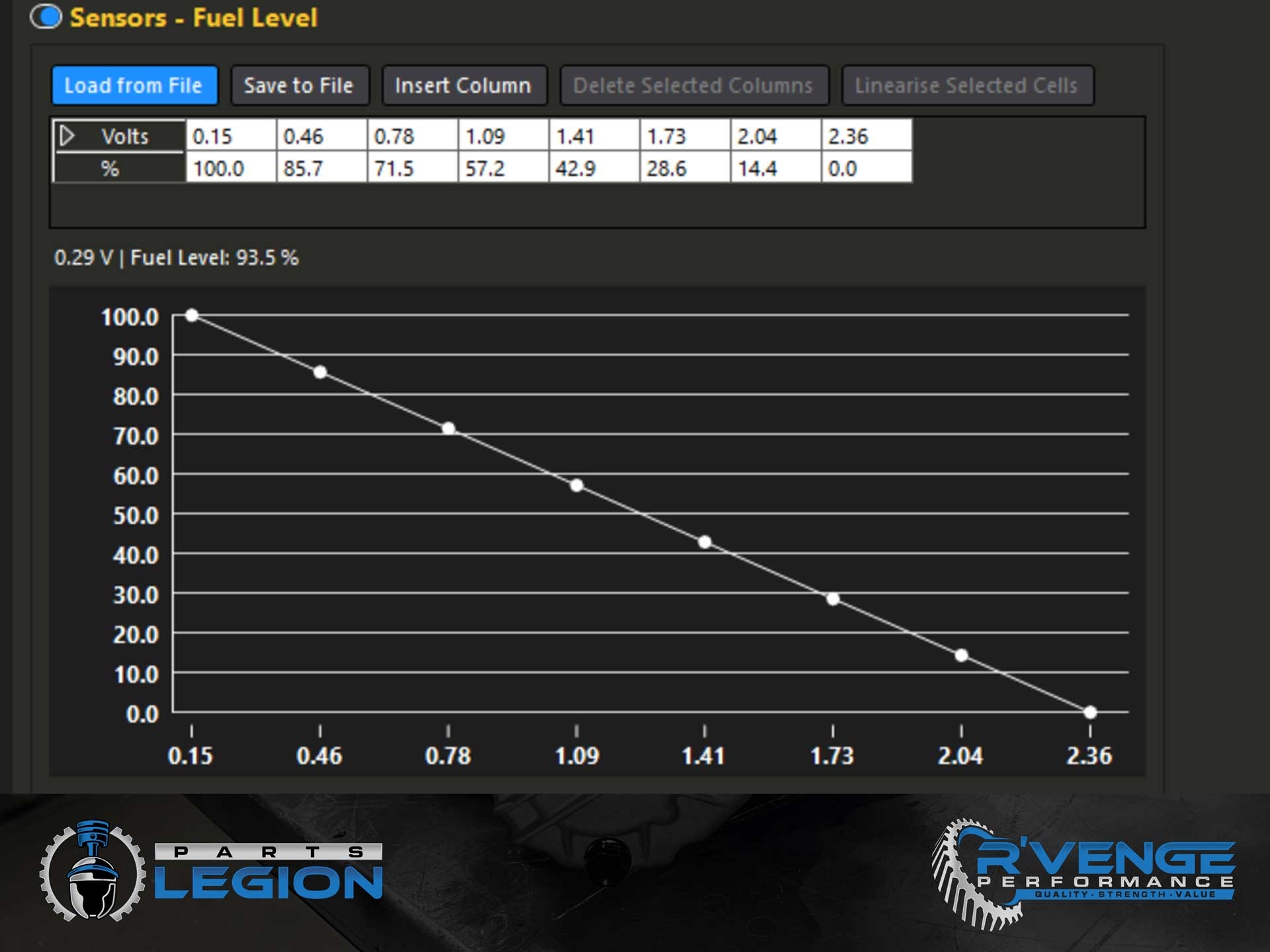

• Adjustable calibration for empty, full, and intermediate points

• Tested on 3000GT/Dodge Stealth factory senders

• Bench-verified at both minimum and maximum float positions

Potentiometer-style arm sensors are generally linear, but fuel tanks aren’t. Because the sender measures depth rather than volume, tank shape can affect linearity. This conditioner allows easy fine-tuning of intermediate points so your gauge or dash accurately represents remaining fuel.

Why You Need It

If your aftermarket ECU or digital dash shows unstable, limited-range, or inaccurate fuel readings, this signal conditioner is the missing link. It bridges the gap between factory fuel senders and high-performance electronics — providing the accuracy and reliability your setup deserves.
