The new generation Terra Series winches from Superwinch are engineered specifically to meet the rugged demands of ATV and UTV enthusiasts. Available 2500 lbs. capacities with a choice of wire or synthetic rope, these powerful winches have been redesigned and improved inside and out. Each winch is loaded with a powerful motor, strong all steel gearing and a steel drum for superior performance and durability. All Terra Series winches are equipped with a remotely mountable control box that houses a sealed solenoid and circuit breaker to ensure reliable operation. Free spool function is simple to manage with an easy to engage ergonomic control knob. Each winch includes a 10' wired remote control and a handlebar mounted rocker switch for dependable control and maximum versatility. The Terra Series winches have an IP67 rating for water and dust protection so they are always ready for action.
Terra 2500 Winch; 2500 lbs; 12 Vdc; 3/16 In X 40 ft Steel Rope; Solenoid W/Circuit Breaker; Remote And Switch; 1.5 hp; 3-Stage Planetary; 138:1Gear Ratio; 4-Way Roller Fairlead;

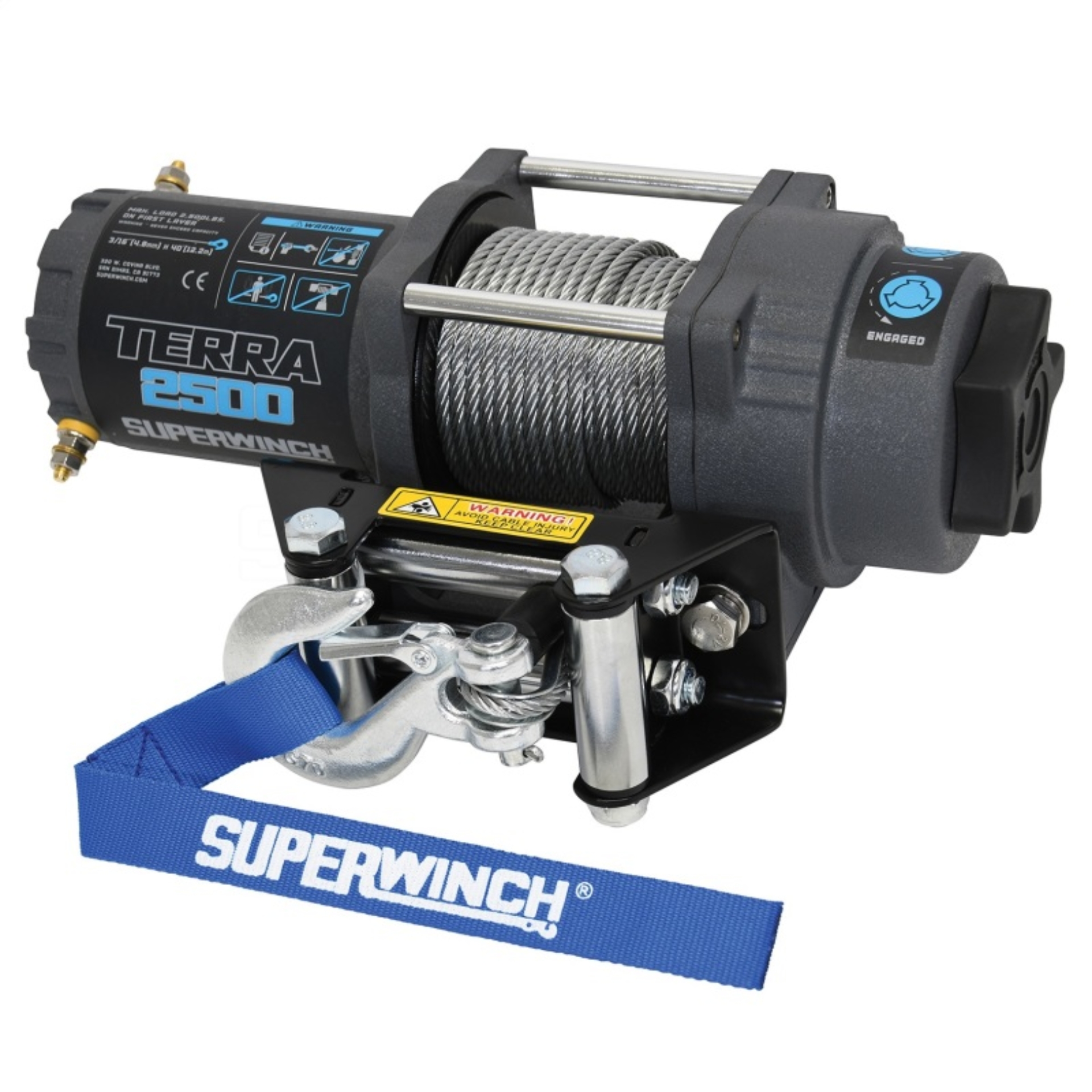

Superwinch 2500 LBS 12V DC 3/16in x 40ft Steel Rope Terra 2500 Winch - Gray Wrinkle
10 Ft. Rugged Remote Control With Handlebar Mounted Rocker Switch
10 ft. handheld remote with handlebar rocker switch
Narrow drum allows easier mounting in tight spaces
Easy to engage ergonomic freespool control knob
3-Stage planetary gearing with 138:1 ratio
Heavy-duty, clevis pinned, latched hook
Heavy-Duty Clevis Pinned Latched Hook
Mounting Bolt Pattern 3 in. X 4.9 in.
Sealed solenoid with circuit breaker
IP67 protection from water and dust
Includes Installation Instructions
4-way roller fairlead (wire rope)
Mounting bolt pattern 3" x 4.87"
1.5 HP permanent magnetic motor
Gray wrinkle powder coat finish
Rated Line Pull Of 2500 Lbs
3/16 in. - 40 ft. wire rope
Universal mounting plate
Heavy-duty steel drum
4 Way Roller Fairlead
2,500 lbs capacity
All steel gear set
Terra 2500 Winch
Clockable motor
Winch
