Staying true to the ICON Alloys approach, the Hammer PRO has been engineered to maximize caliper clearance and optimize wheel position for un-hindered suspension travel and steering function. Backspace and wheel offset dimensions have been strategically developed to reduce scrub radius, improving all-around handling and ride quality. The Hammer PRO has also been strength tested to yield an incredible 3,650lb load rating - making it one of the strongest wheel options on the market. With build features such as these, it's clear that a set of ICON Alloys Hammer PRO wheels is the perfect complement to any truck, Jeep, or SUV.

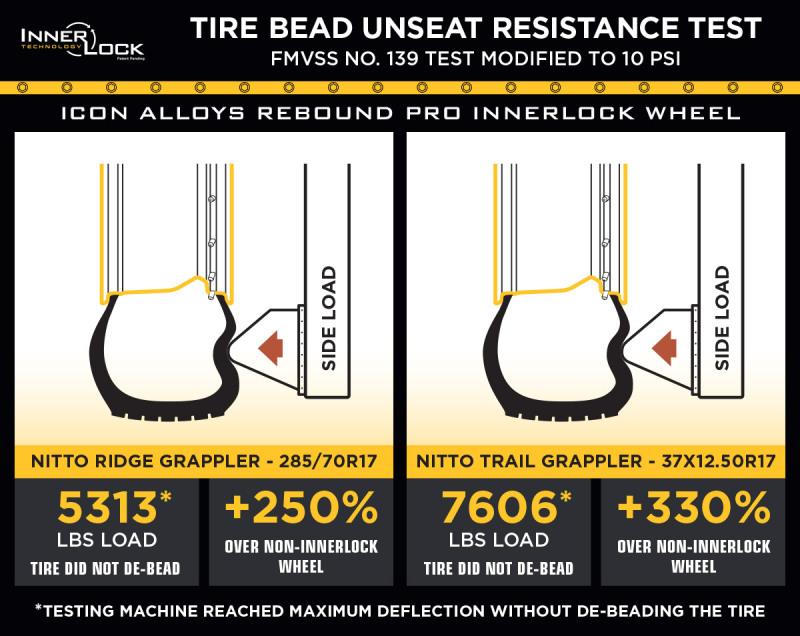

During an accelerated R&D process ICON engineers subjected the InnerLock technology to thousands of miles of real-world abuse throughout harsh and unforgiving environments. After on-vehicle testing was concluded, wheels were sent to an independent contractor for precise lab testing, specifically the FMVSS No.139 Tire Bead Unseat Resistance Test (modified to 10 psi). Results from multiple tests validated the effectiveness of ICON’s InnerLock technology by exceeding the mechanical limits of the machine (over 7600lbs load) without ever de-beading the tire.
Any hardcore off-road enthusiast knows the numerous benefits that lower tire pressures offer such as improved ride quality and a larger contact patch for increased traction. However, low pressures also increase the risk of de-beading the tire during extreme side loads or aggressive driving. While traditional bead lock wheels address this issue by clamping the tire’s bead, they also need frequent maintenance, require specialty tools/parts, increase rotational mass, and are NOT legal for on-road use.

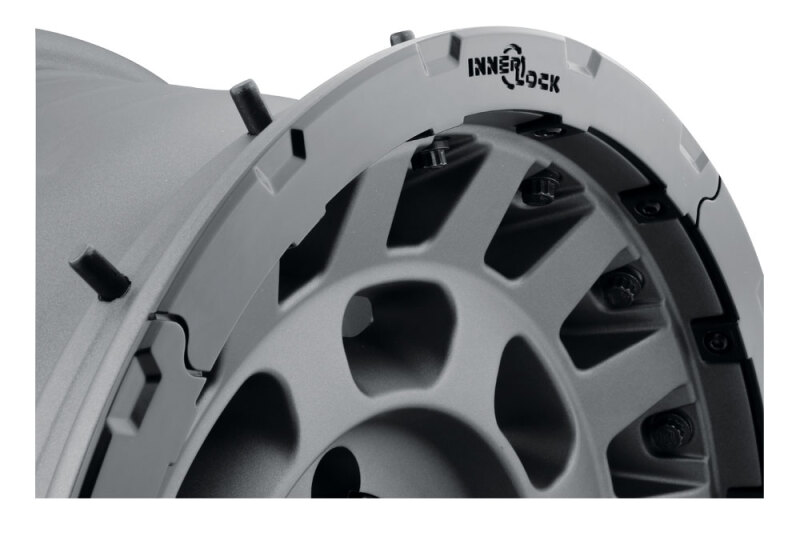

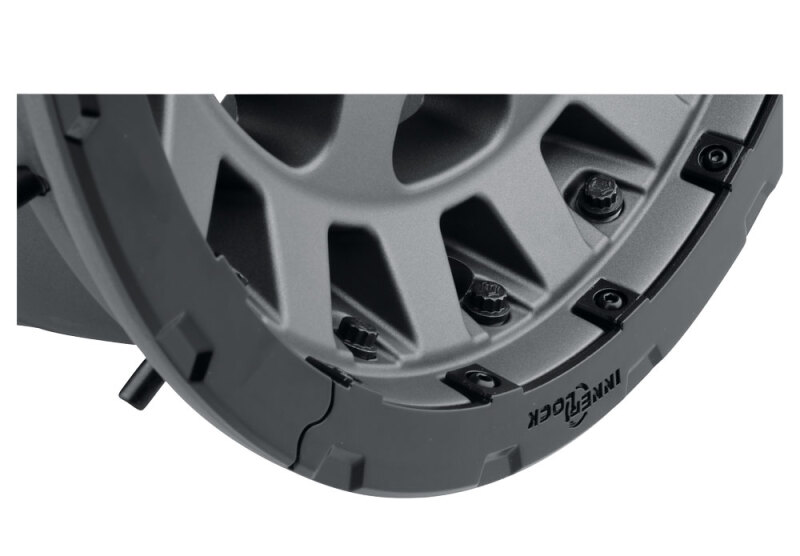

The included high-grade aluminum, removable, and replaceable HALO Wheel Armor keeps the wheel looking new by protecting the Hammer PRO from trail rash. This HALO Wheel Armor is replaceable in 90° segments so individual sections can be changed if only a portion of the ring becomes damaged. Beyond superior form and function the HALO Wheel Armor can be easily customized to match your style for a truly unique wheel experience.

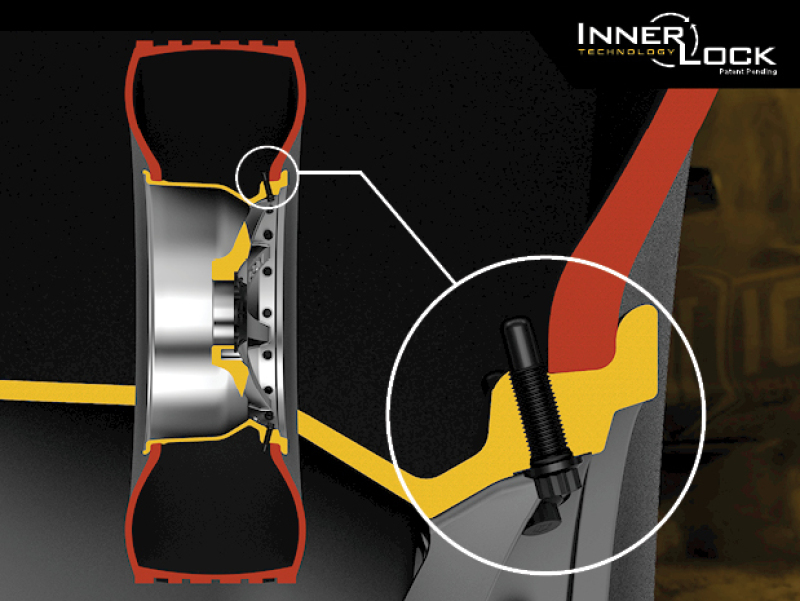

The ICON Alloys Hammer PRO with patented InnerLock technology offers the best of both worlds by using a robust bead retention system to keep the tire bead secured to the wheel while also being fully DOT compliant. This provides confidence in knowing that your wheels are prepared to tackle whatever situation you encounter - on or off the beaten path. InnerLock is ready for any type of terrain and every single adventure.
ICON Alloys Hammer PRO with patented InnerLock technology uses a robust bead retention system to keep the tire bead secured to the wheel while also being fully DOT compliant. Included HALO Wheel Armor protects the wheel from trail damage.
APPLICATION NOTE #211: May not be compatible with all TPMS sensors with rigid valve stems. Flexible rubber valve stems are recommended for InnerLock pin clearance when mounting tires on wheels.
Hardened bead retention pins utilize a SAE J1926 O-ring seal and are constructed from high strength alloy that is thermochemically treated for extreme corrosion resistance
Patented InnerLock technology (U.S. Patent No. 11,090,976) provides the ultimate blend of on-road safety and off-road performance, ideal for the “weekend warrior”
TECH NOTE: Professional mounting and balancing of an appropriately sized tire prior to installation onto vehicle is recommended.
High-grade aluminum, removable, and replaceable HALO Wheel Armor protects wheel from trail damage
Aluminum alloy construction provides strength properties that are well suited for off-road use
Bead retention system features alloy pins that are removable, reusable, and replaceable
Compatible with a wide variety of tires without the need for any shims or special tools
Application-specific dimensions optimize vehicle dynamics and tire clearance
Strategically placed hardware for maximum protection from trail damage
ICON ALLOYS HAMMER PRO CHARCOAL - 17 X 8.5 / 6 X 5.5 / 0MM / 4.75" BS
ICON Hammer Pro 17x8.5 / 6x5.5 / 0mm / 4.75in BS - Charcoal
Quick, easy, and safe tire installation and removal
Incredibly strong 3,650 lbs load rating
Engineered for DOT compliance
HAMMER PRO WHEEL
21017858347CH
Wheel
