Water/methanol injection for forced induction (turbocharged or supercharged) gas-powered race engines is a proven means for effectively reducing engine inlet air temperatures and suppressing harmful detonation. This allows racers to reliably increase boost and advance ignition timing-without using high-octane racing fuel-for power gains of up to 20%. AEM's Water Injection Kits utilize robust hardware and deliver more advanced features than any other comparably priced water/methanol injection system.
Heavy-Duty Waterproof High Pressure Injection Pump - Safe for Engine Bay/Frame Rail Mounting AEM's internally-bypassed water/methanol injection pump is waterproof and safe for mounting in loactions that are exposed the elements. It does not cycle on and off and provides quiet, smooth operation. It features robust construction including integral hose fittings, EPDM seals and a Santoprene diaphragm that provides consistent and reliable fluid delivery.
Note: FOR OPTIMUM RESULTS, ALL WATER/METHANOL INJECTION SYSTEMS AND FLOW GAUGES SHOULD BE RUN WITH AN WMI INLINE FILTER (PN 30-3003). For additional insurance against unintended flow, particularly when the pump and tank must be installed higher than the injections nozzle, we recommend adding our optional High-Flow Low-Current WMI Solenoid (PN 30-3326).
The second controller (Kit PN 30-3350, Kit PN 30-3351 (5 gallon and two injectors)) features a multiple input design that enables users to install AEM's Water/Methanol Injection Kit on ultra-high boost vehicles (above 35 PSI) using a 0-5v voltage-based external MAP sensor.
One is boost dependent for forced induction vehicles up to 35 PSI of boost (kit PN 30-3300). The Boost Dependent controller has an on-board manifold absolute pressure (MAP) sensor with a molded-in nipple for a boost hose pickup.
V2 Water/Methanol Injection Kit, Multi Input Controller - 0-5v/MAF Frequency or Voltage/Duty Cycle/Ext MAP, 200psi WM Pump, 5 Gallon Reservoir, Conductive Fluid Level Sensor
Terminated harness features positive lock connector with integrated pump ground circuit and additional wire for optional on/off flow solenoid
One machined billet injector with integral check valve to prevent unintended flow
AEM offers two different water/methanol controller designs for gas vehicles:
Water/Methanol for All Boost Levels of Forced Induction Gas Race Engines
Recirculation-style pump with integral fittings for quiet operation

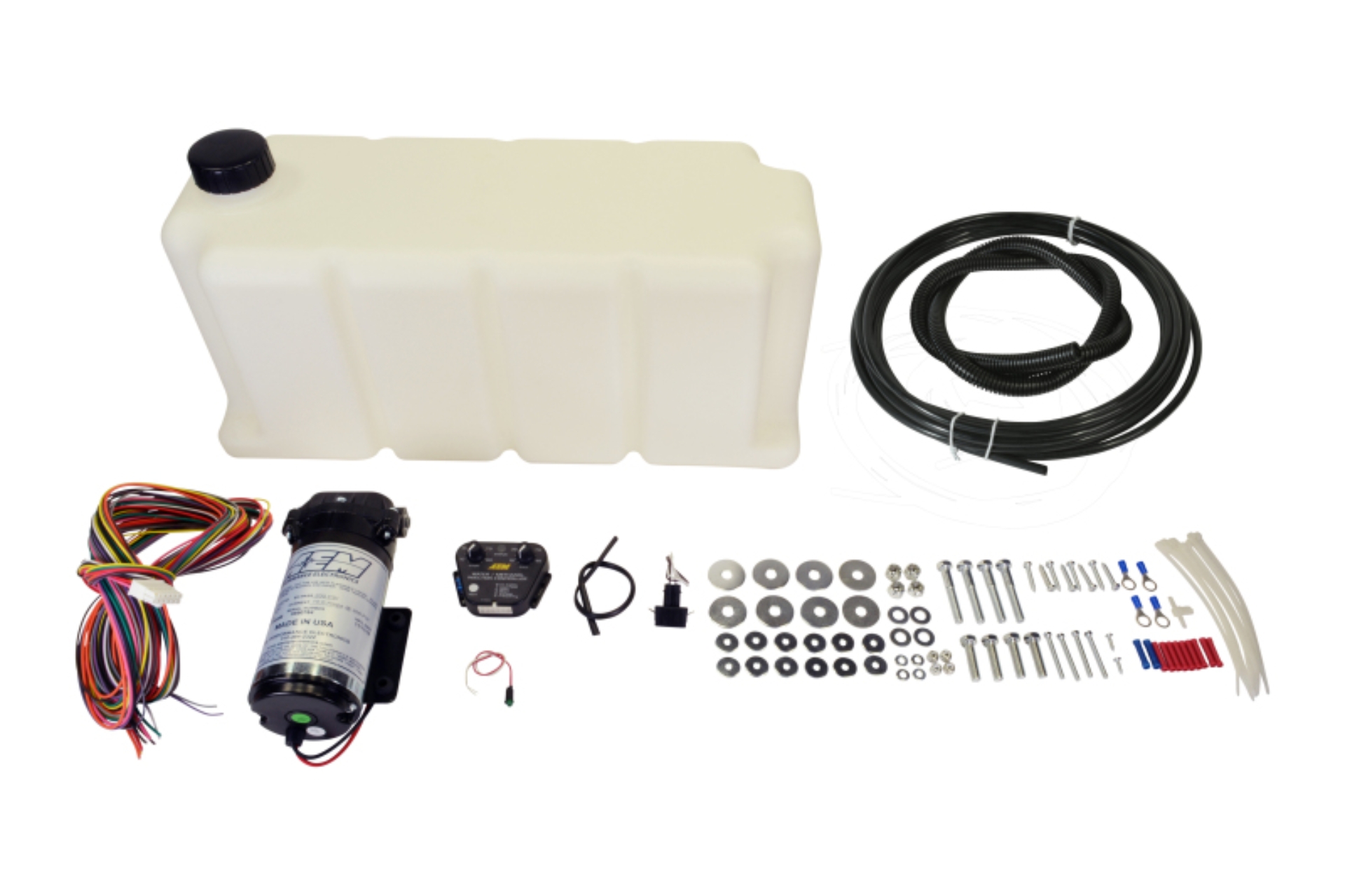

AEM V2 5 Gallon Diesel Water/Methanol Injection Kit - Multi Input
0-5v/MAF Frequency or Voltage/Duty Cycle/Ext MAP, 5 Gallon
LED dash light for system status and low fluid warning
Includes “Boost Safe” readiness failsafe system
THE AEM WATER/METHANOL INJECTION SYSTEM ADVANTAGE
20 ft. of high-pressure Nylon injection tubing
AEM V3 Water Methanol Injection Kit
H2O INJ KIT V3 EXT MAP 5GAL
AEM - Water/Meth Injection
Water Injection System Kit
Water/Meth Injection
AEMEWATEINJE
System Kit
