Skunk2 Alpha Series Valves for the Honda K20 and K24 are manufactured from HNV-3 martensitic steel (IN) and EV8 austenitic steel (EX) one-piece forgings. Each valve is heat-treated using a proprietary process for extraordinary strength and durability and then hard chrome plated to further increase strength, significantly reduce friction, and increase corrosion resistance. Other valves may appear similar, but only Alpha Series Valves feature specially designed valve head profiles to optimize airflow. Skunk2 designs, develops, and tests its entire valvetrain lineup in-house to ensure superior quality and maximum performance gains. Skunk2 valvetrain components provide exceptional performance, reliability, and quality and are standard-issue on each Skunk2 vehicle that we build and support.
Alpha Series Valve Set; 1mm OS Intake/Std. Exh.; Std. Compression; Dish Face-Intake 36mmx109mmx5.48mm/Exh. 30mmx108.6mmx5.45mm; Head Dia.-Intake/Exh. 36.00mm/30.00mm; Set of 16;

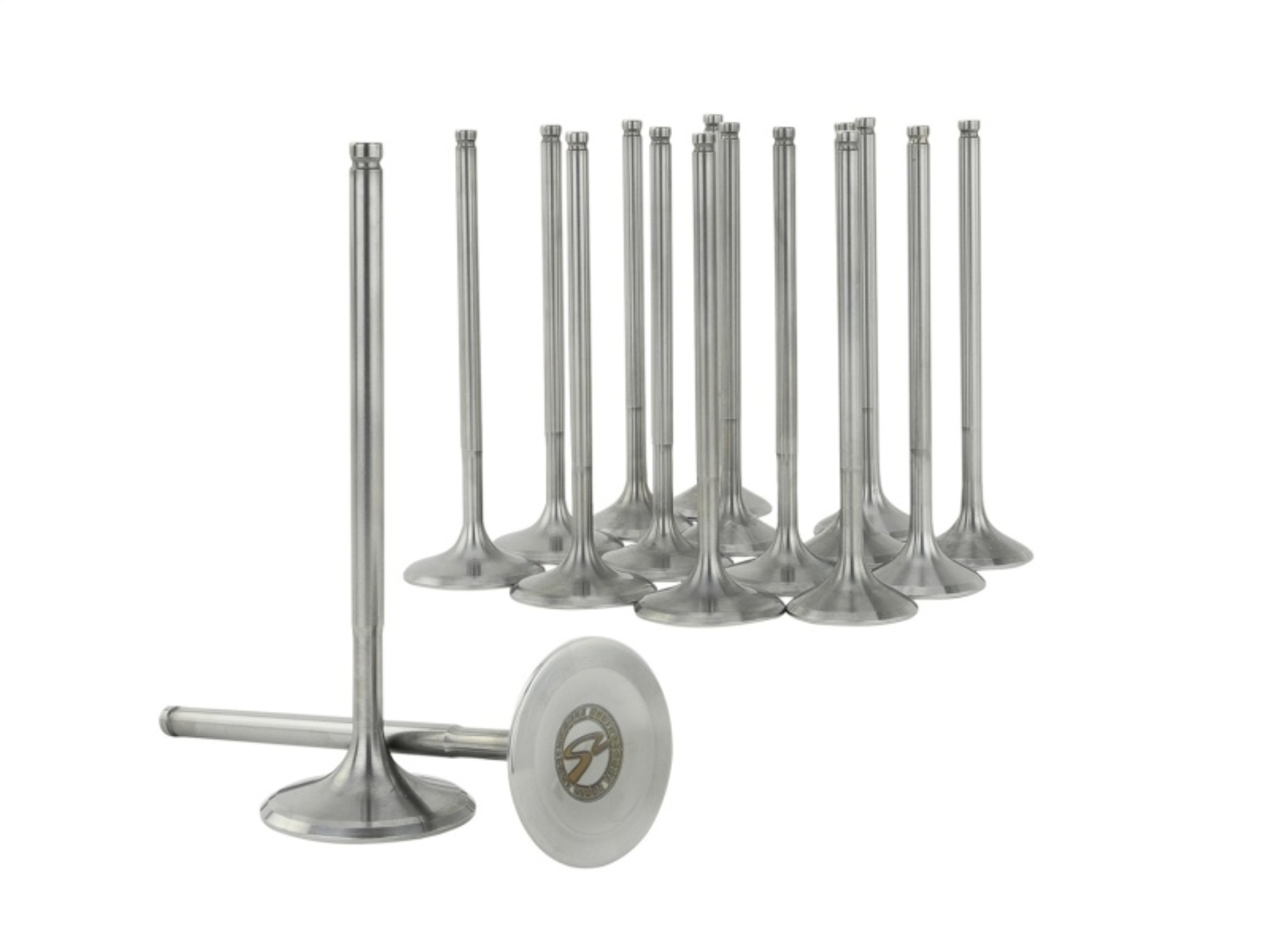

Skunk2 Alpha Series Honda/Acura +1mm K Series VTEC Valve (Standard Compression)
Overall Valve Length (Intake/Exhaust) 109mm/ 108.6mm
Head Diameter (Intake/Exhaust) 36.00mm/ 30.00mm
Stem Thickness (Intake/Exhaust) 5.48mm/ 5.45mm
Stainless Steel Alloy Construction
Optimum Sealing/Airflow/Stability
Proprietary Heat Treatment
3-10g Lighter Than Stock
Alpha Series Valve Set
Engine Valve Set
One-Piece Design
