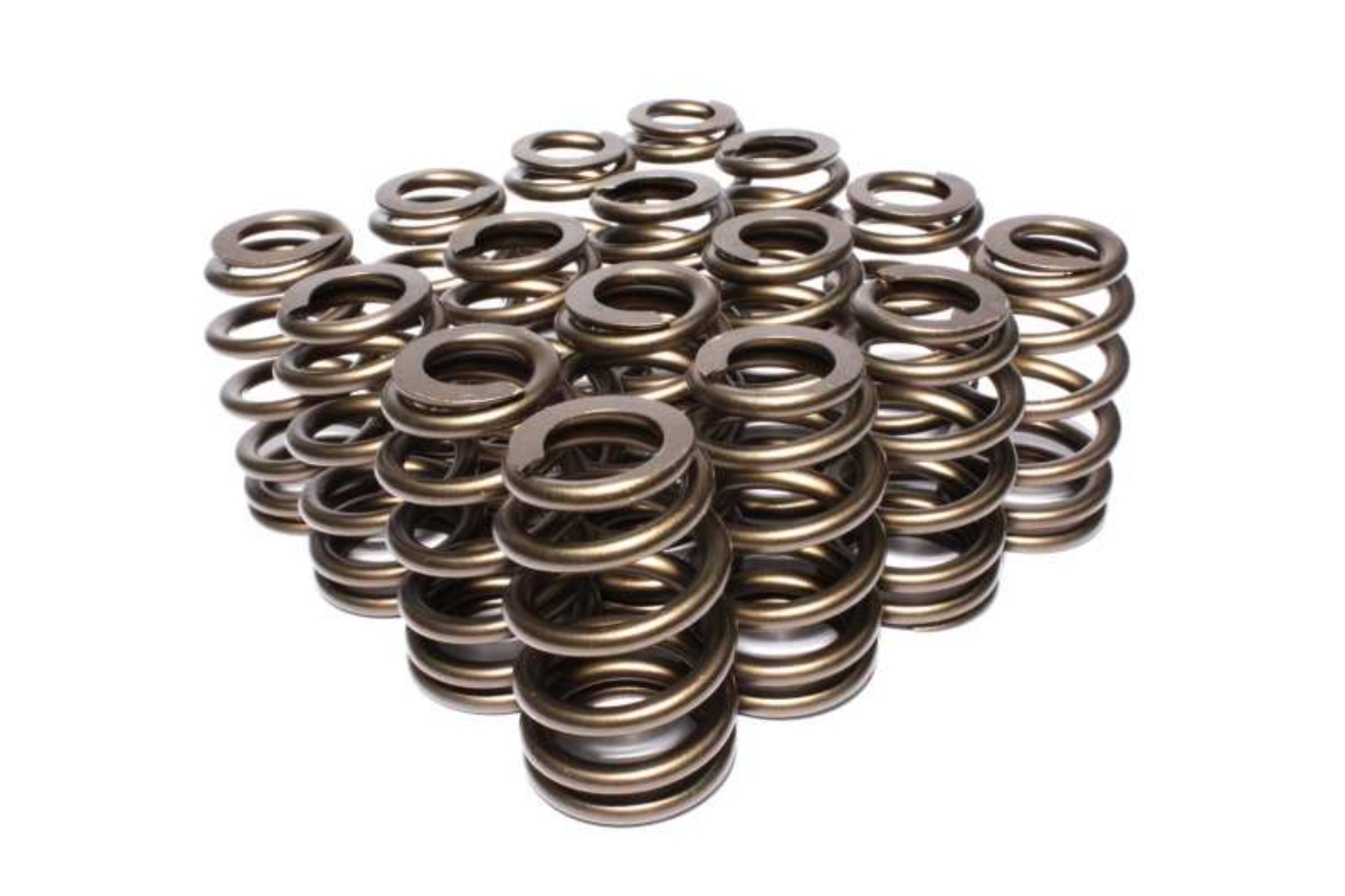

COMP Cams Valve Springs 1-185in Beehive - ( COMP Cams 26056-16 )

COMP Cams Beehive Valve Springs deliver increased valve train stability and a much lighter valve train. This is achieved with less spring pressure for better valve control and reduced weight of both the spring and retainer. The unique Beehive shape handles valve train stress more efficiently to eliminate damaging harmonics and increases high RPM horsepower and durability. The oval/multi-arc wire shape places the maximum area of the wire at the point of highest stress to handle valve train stress more efficiently and allow better heat dissipation for longer life. Because of the unique Beehive design, the valve train can handle more RPM and more aggressive cam profiles.

Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit

1.185"/1.454" OD, .731"/1.000" ID Beehive valve spring; 160 lbs 1.800", 420 lbs 1.150"; .640" maximum lift

COMP Cams Beehive Valve Springs, 1.185"/1.454" OD, 160 lbs 1.800", 420 lbs 1.150", Set of 16

Race Sportsman 1.454" OD Beehive Springs; 1.800" Installed Height; 16 Springs

COMP Cams Valve Springs 1.185in Beehive

Race S-man 1.454" Beehive 1.8" Ht

Valve Spring, Beehive

Engine Valve Spring
