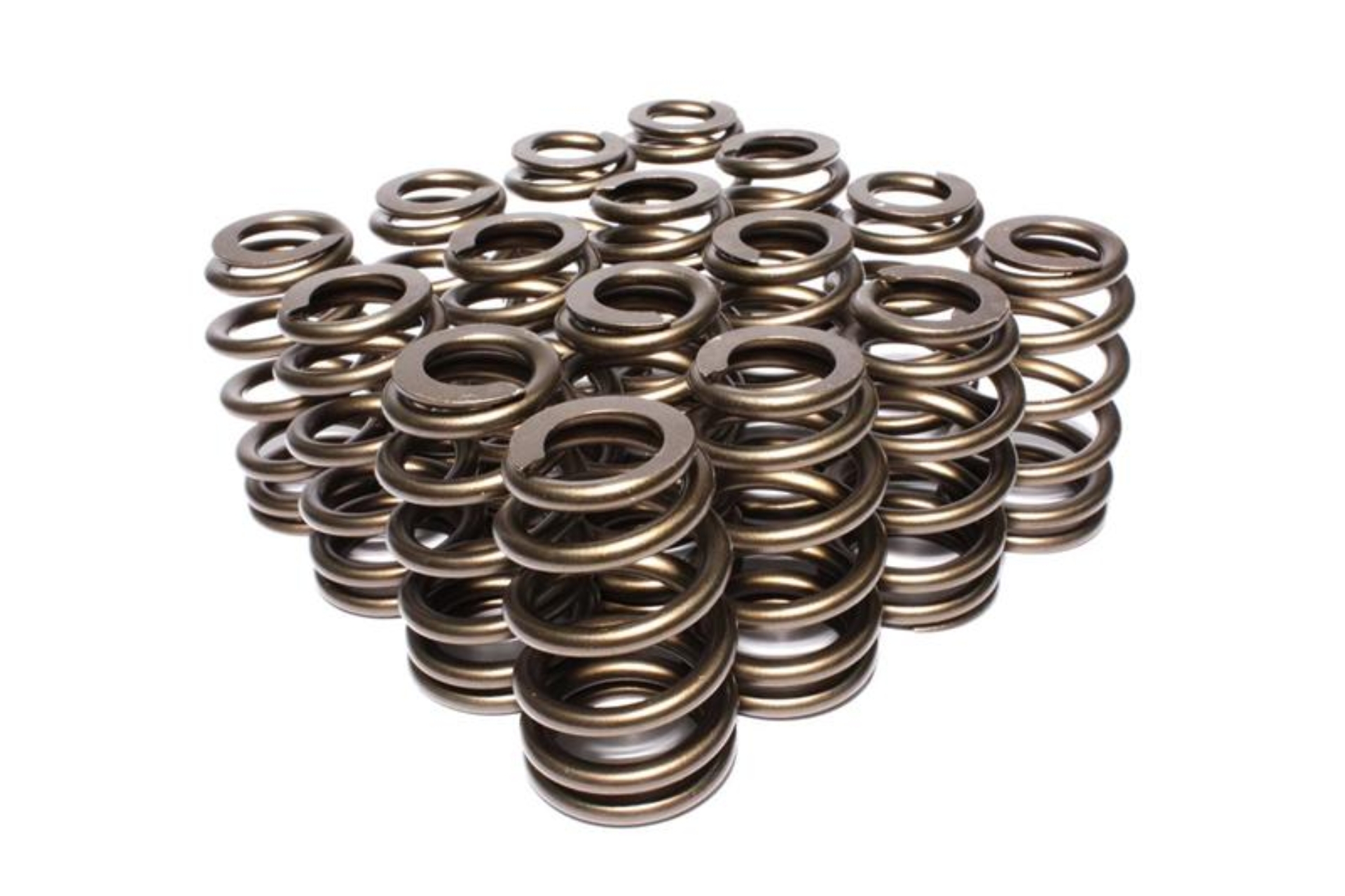

COMP Cams Beehive Valve Springs deliver increased valve train stability and a much lighter valve train. This is achieved with less spring pressure for better valve control and reduced weight of both the spring and retainer. The unique Beehive shape handles valve train stress more efficiently to eliminate damaging harmonics and increases high RPM horsepower and durability. The oval/multi-arc wire shape places the maximum area of the wire at the point of highest stress to handle valve train stress more efficiently and allow better heat dissipation for longer life. Because of the unique Beehive design, the valve train can handle more RPM and more aggressive Camshaft profiles. Part # OD ID Seat Load Open Load Coil Bind Rate (Lbs./In.) Titanium Retainer Steel Retainer Cup Seat Shims 26056 Top Bottom 1.1851.454 .7311.000 160 @ 1.800 420 @ 1.150 1.100 400 785 703, 705 4696, 4697, 4704 4757
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit
Race Sportsman 1.454" OD Beehive Springs, 1.800" Installed Height, 16 Springs
Race Sportsman 1.454" OD Beehive Springs; 1.800" Installed Height; 16 Springs
Beehive Valve Springs: Top 1.185" OD, .731" ID
COMP Cams Valve Springs 1.185in Beehive
Race S-man 1.454" Beehive 1.8" Ht
Bottom 1.454" OD, 1.000" ID
VALVE SPRING,1.454" BEEHIVE
Engine Valve Spring Kit
Engine Valve Spring
