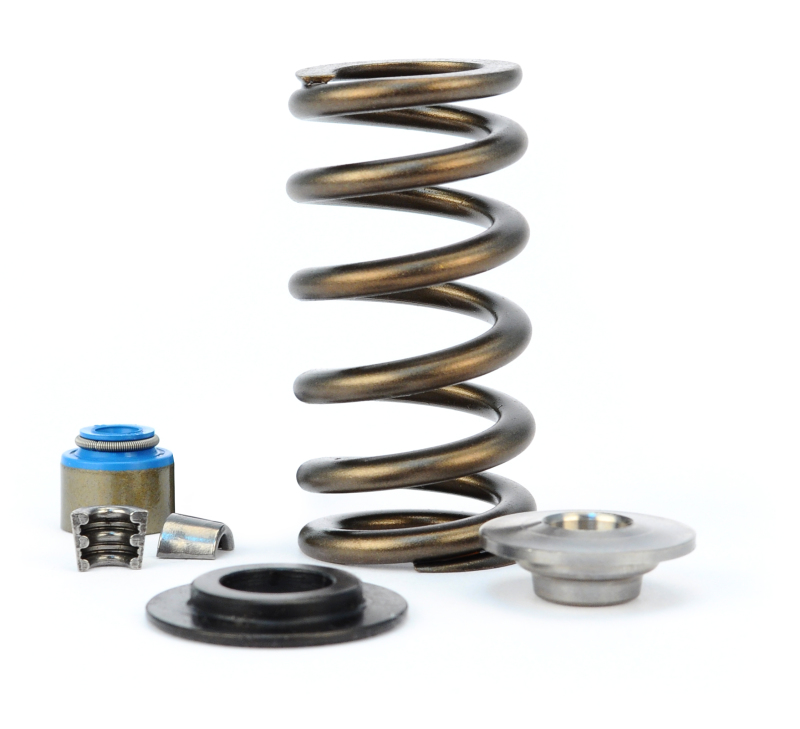

Ford Coyote and Boss 5.0L engines Max Lift Seat Load Open Load Rate Coil Bind Outer Diameter Inner Diameter .550" 93 lbs @ 1.57" 198 lbs @ 1.02" 191lbs/in .952" Top .959" / Bottom 1.061" Top .636" / Bottom .738" Please note the above image does not show full spring kit.
includes (32) springs, (32) retainers, (32) seats, and (32) Seals. Increased valve control over stock springs (especially at high RPM) thanks to a performance-driven design and proven modular engine track record Fits 2011-2014 and 2015-Later
Designed for '11-'14 and '15+ 5.0L Coyote and Boss engines, this beehive spring kit offers increased valve control at high RPM while allowing for higher valve lift from performance cams. Includes properly matched retainers, seals and seats.
See 26125CTS-KIT for .600" Max lift kit with lightweight tool steel retainers. See 26125CTI-KIT for .600" Max lift kit with lightweight titanium retainers.
Ford: Mustang 11 - 17 5 L Engine, Lincoln: Mark LT 11 - 14 5 L Engine, Ford: Lobo 11 - 17 5 L Engine, Ford: F-150 11 - 17 5 L Engine
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit
Creates higher load, higher RPM and more lift capacity than stock parts. Complete kit
See 26125CTI-KIT for .600" Max lift kit with lightweight titanium retainers.
Designed for both 2011 - 2014 and 2015+ Ford Coyote and Boss 5.0L engines.
Coyote Beehive Spring Kit w/ Chromemoly Steel Retainers, .510" Max Lift
Coyote Beehive Spring Kit w/ Chromemoly Steel Retainers; .510" Max Lift
COMP Cams Ford 5.0L Coyote Valve Spring Kit O.D. .959in
higher RPM and more lift capacity than stock.
VALVE SPRING KIT, FORD IH ST'L RETAINERS
Coyote Beehive Spring Kit .510" CS Ret
Increased valve control at high RPM.
Engine Valve Spring Kit
CyteBeeSprngKit113cy
Create higher load
.510" Maximum Lift
