Ford Coyote and Boss 5.0L engines Max Lift Seat Load Open Load Rate Coil Bind Outer Diameter Inner Diameter .600" 120 lbs @ 1.57" 275 lbs @ 1.02" 258 lbs/in .970" Top 1.013" / Bottom 1.101" Top .650" / Bottom .738" Please note the above image does not show full spring kit.
includes (32) springs, (32) retainers, (32) seats, and (32) Seals. Increased valve control over stock springs (especially at high RPM) thanks to a performance-driven design and proven modular engine track record Fits 2011-2014 and 2015-Later
Designed for '11-'14 and '15+ 5.0L Coyote and Boss engines, this beehive spring kit offers increased valve control at high RPM while allowing for higher valve lift from performance cams. Includes tool steel retainers, seals and seats.

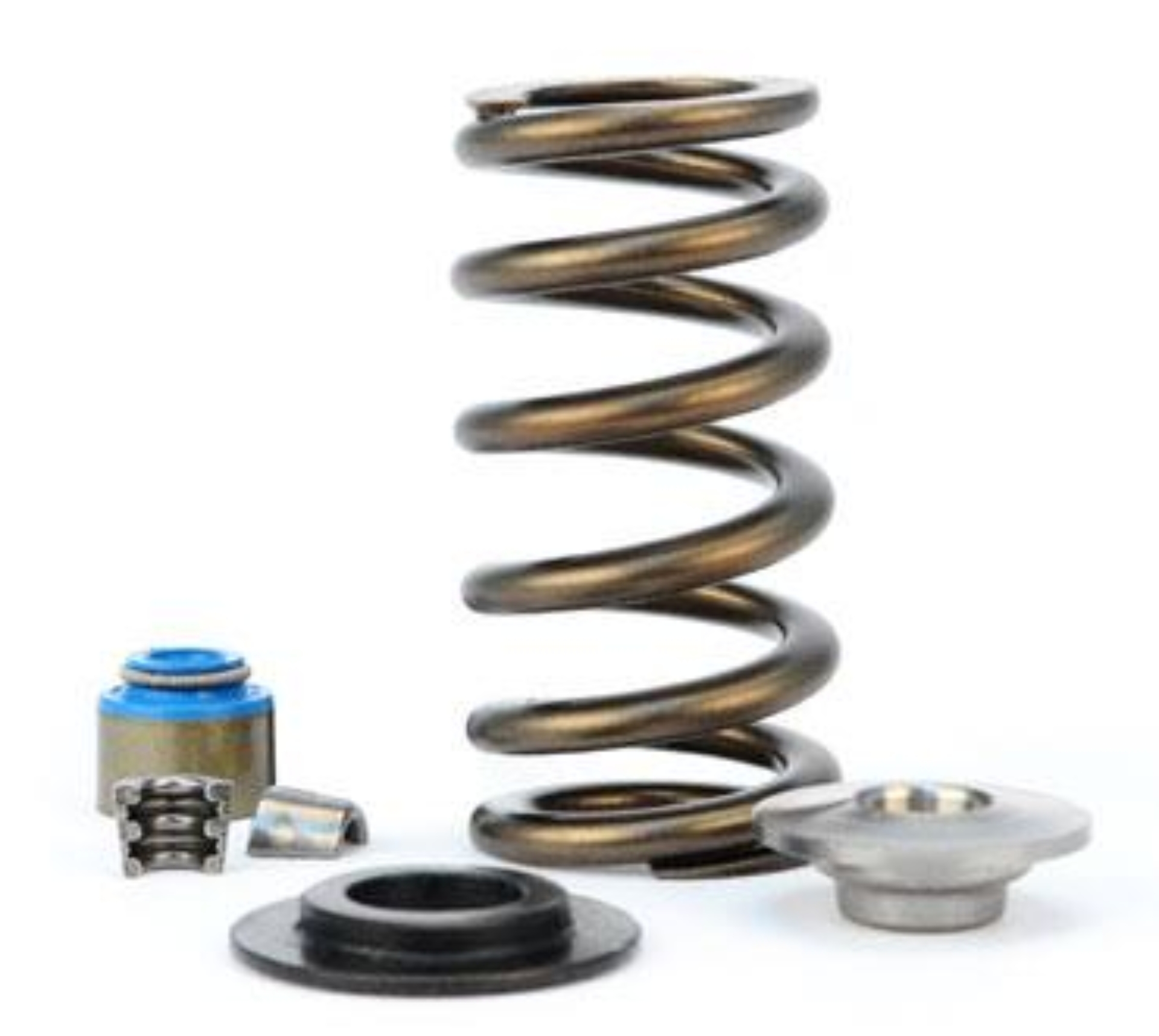

Please note the above image does not show full spring kit. Creates higher load, higher RPM and more lift capacity than stock parts. Complete kit
Ford: Mustang 11 - 17 5 L Engine, Lincoln: Mark LT 11 - 14 5 L Engine, Ford: Lobo 11 - 17 5 L Engine, Ford: F-150 11 - 17 5 L Engine
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit
Designed for both 2011 - 2014 and 2015+ Ford Coyote and Boss 5.0L engines.
COMP Cams 11-14 Ford Coyote/Boss 5.0L .600in Max Lift Valve Spring Kit
Coyote Beehive Spring Kit w/ Tool Steel Retainers, .600" Max Lift
Coyote Beehive Spring Kit w/ Tool Steel Retainers; .600" Max Lift
Available with Titanium retainers under 26125CTS-KIT.
VALVE SPRING KIT, FORD COY TOOL ST'L RETAINERS
higher RPM and more lift capacity than stock.
Coyote Beehive Spring Kit .600" TS Ret
Increased valve control at high RPM.
Engine Valve Spring Kit
CyteBeeSprnKit113cts
Create higher load
.600" Maximum Lift
