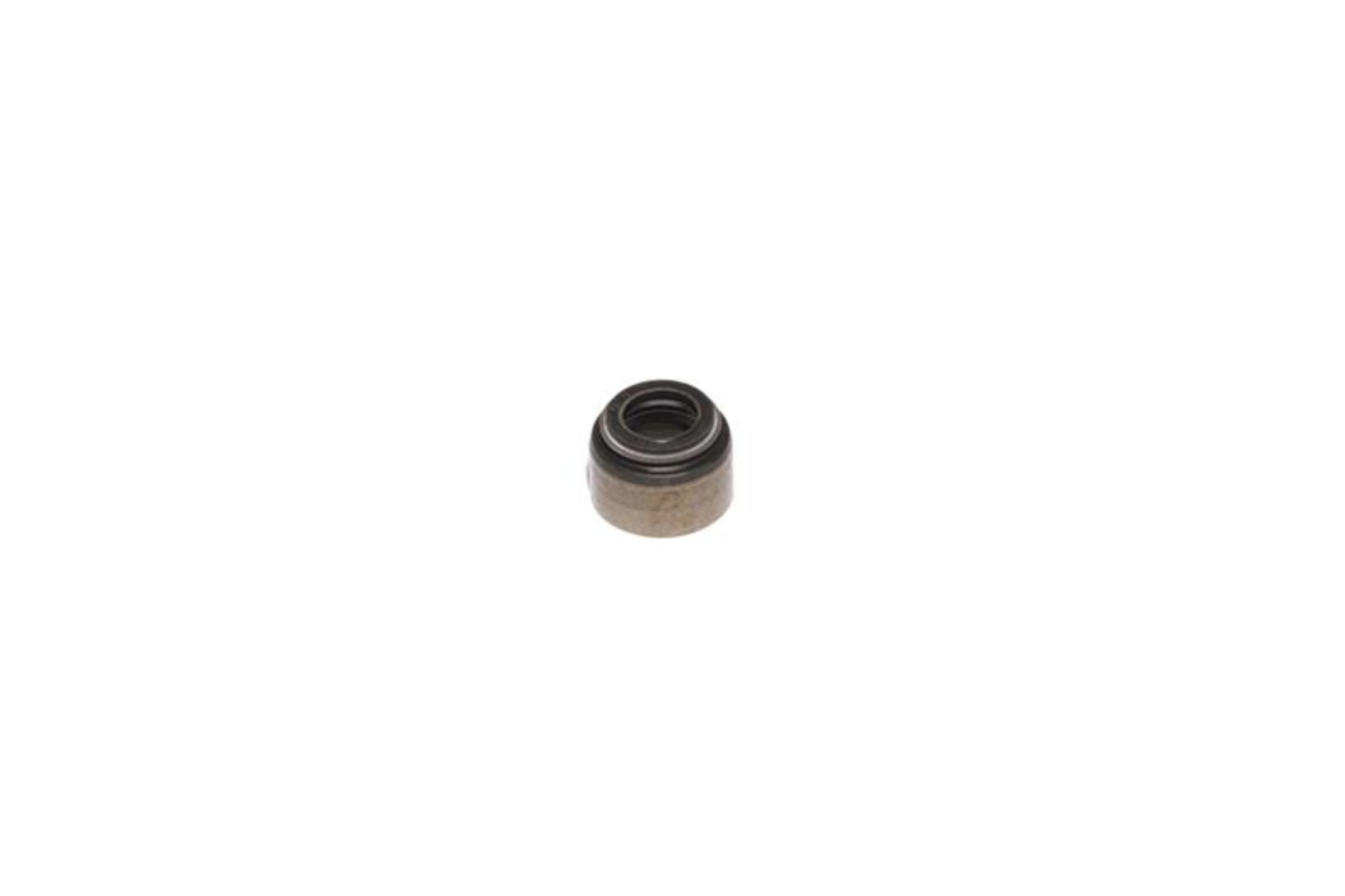

VALVE SEAL, 11/32" STEM

COMP Cams offers a complete line of valve stem Seals, from the stock GM "O-Ring" to the positive-stop PTFE Seal. These Seals are a must to keep unwanted oil from entering the combustion chamber through the clearance in the valve guides. The "O-Ring" Seals use the standard retainer and oil splash shield. The umbrella Seal is normally used when a larger-than-stock diameter spring is used, in the case of a double spring, the positive-stop PTFE Seal is used. We also have a smaller diameter Viton Seal available for triple spring Applications.

Providing the best sealing properties and spring clearance, viton valve seals are an excellent choice in performance applications. The 506 seal has a .610" OD and fits applications with 11/32" valves and .494" OD guides.

PTFE; Seal; Valve Guide; Valve Guide Seal; Valve Stem Seal; Valve Seals; 5/16" Valve Seals; 11/32" Valve Seals; .530" Valve Seal; Umbrella; O-Ring Seals; Viton Seals; 8 mm Seals

1 Black Viton Valve Seal for .494" Guide Size, 11/32" Valve Stem

Engines w/ 0.494" OD Valve Guides and 11/32" Valve Stems

Available in a set of 16 under 506-16

Viton Seal .494" Guide, 11/32" Stem

COMP Cams Valve Seal 11/32in Stem

Engine Valve Stem Oil Seal

VALVE SEAL, 11/32" STEM

Valve Stem Oil Seal
