The APR Stage 3 PowerMax GT2563S Turbocharger System for the MQB/MQB Evo 2.0T Ea888.4 (280-333 PS) engine, such as the MK8 Golf R, S3, Arteon, and many others, is a direct bolt-on upgrade that includes a Garrett turbocharger, installation kit, and APR software upgrade. This system delivers an impressive 478-543 HP and 409-435 FTLBS of torque, depending on octane level. Designed to maximize power with just an intake and intercooler, it requires no additional hardware.The Garrett PowerMax GT2563S Turbocharger provides a 20% increase in compressor flow and a 37% increase in turbine flow compared to the factory Continental turbocharger, all within a direct replacement bolt-on package. The turbine wheel, made from a Mar-M alloy rated for 1050°C, ensures the system can operate under extreme conditions without compromising reliability.The kit includes an upgrade to APR Stage 3 software from a lower stage, designed to achieve the specified power levels with only the intake and intercooler system. There is no need for additional, costly, or emissions-impacting exhaust systems, fueling modifications, or sensors at this power level.The horsepower and torque gains achieved with this turbocharger upgrade are substantial. APR's calibration engineering experts dedicated months to fine-tuning the Stage 3 Pmax engine and transmission software to provide an exceptional driving experience without imposing undue risk on your engine's lifespan. Reliability is a core principle of the APR experience and was a paramount design requirement for our engineering team.The software is available in both high and low torque configurations to respect transmission limits when additional upgrades, such as our Stage 3 TCU upgrade, are not feasible. While the turbocharger is capable of higher low-end torque, prioritizing engine reliability necessitates discipline.
Our software delivers a smooth, linear torque curve across both configurations and various octane levels, ensuring an exhilarating drive without placing undue stress on engine components.In designing this upgrade, our team meticulously adhered to Garrett's prescribed specifications for turbocharger reliability, including exhaust gas temperature and turbocharger shaft speed limits. Additionally, the software is calibrated to operate within the limits of factory sensors and fueling hardware, delivering a dependable driving experience.APR's calibration experts have also integrated additional safety and protection protocols into the ECU to guard against LSPI, knock, turbo shaft speed, exhaust gas temperature, turbo discharge temperature, exhaust back pressure, and fuel system limits. This ensures that drivers can fully enjoy their vehicle's performance without undue concern for premature component failure. At APR, we enhance the driving experience by delivering performance without compromise!
Specific software is required to use this system. Software is included for various vehicles. Software compatibility must be checked before purchase. This kit includes an upgrade to Stage 3 from a lower stage.
To get the advertised request, use a the APR Intake and APR Intercooler system. Factory 10,000 mile oil intervals are excessive. Cut oil intervals in half.
To add an additional layer of protection, use a high performance oil matching the factory weight and minimum factory specs.
Gains as high as +127-193 AWHP and +96-145 AWFT-LBS of torque over stock over (2022 US Golf R Baseline)
Power figures achieved on the stock exhaust & fueling with APR Intake & Intercooler
Mar-M alloy turbine wheel and stainless steel turbine housing rated for 1050°C
Application specifically derived Garrett compressor wheel and turbine aero
+20% compressor flow and +37% turbine flow compared to the factory turbo
APR Stage 3 PowerMax GT2563S Turbocharger System - 2.0T EA888.4

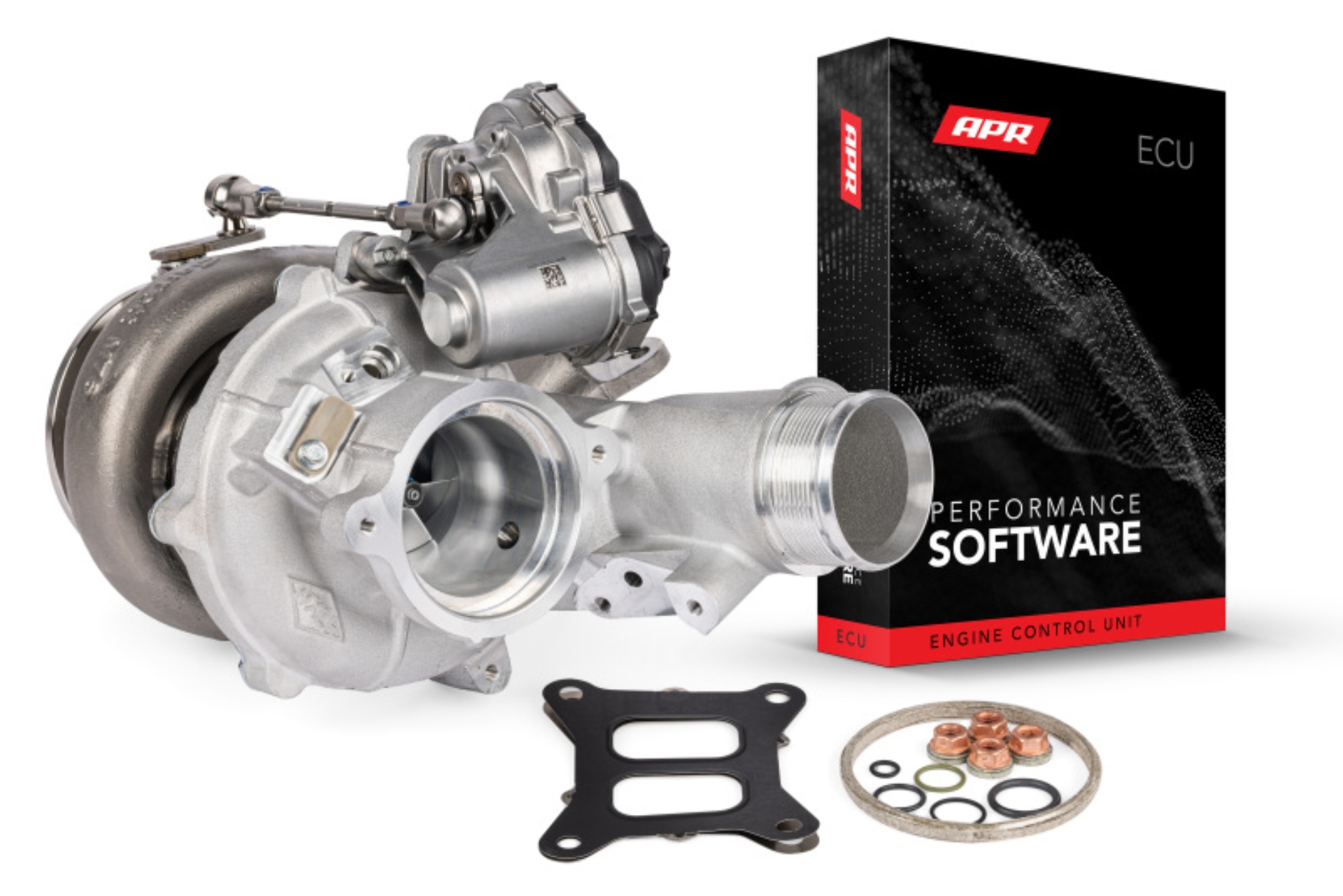

APR Stage 3 PowerMax GT2563S Turbocharger System (2.0T EA888.4)
Direct replacement Garrett PowerMax GT2563S Turbocharger
Delivers up to 478-543 HP and 409-435 FT-LBS of torque
Free upgrade to APR Stage 3 ECU/TCU from lower stage
Integrated thrust bearing reinforced for application
Fits 2022-2024 Audi S3/VW Arteon/Golf R
Does not alter emissions components
Plug-and-play with stock hardware
Fully machined speed sensor port
Install hardware kit included
MK8 GOLFR PMAX TURBO KIT
Turbo
