This turbo swap kit from WCFab will allow you to install an S300 based turbocharger on your 2004.5-2007 5.9 Cummins equipped Dodge Ram 2500 or 3500 with a 2nd Gen Style Exhaust Manifold (Sold Separately). Kit includes all components needed to install the turbo, mounting the manifold pointing up which allows for a quick and simple down pipe install- no cutting of your exhaust system required! WCFab's unique shorty down pipe connects to the v-band flange on the exhaust front pipe just as your factory turbo cast outlet elbow did.
Designed to be used with 2nd Gen Style Stainless Diesel or Steed Speed exhaust Manifold. If you are not purchasing a WCFab modified turbo and one of the specified manifolds from us, you must specify the brand of turbo and manifold you are using at the time of order so that we can help you verify compatibility. Some brands may require that you send parts to WCFab in order for the kit to be built using those components to ensure proper fitment of your kit.
Hot side Intercooler pipe uses a v-band connection at turbo. The kit INCLUDES welding of V-band flange to the SXE turbo cover. If you are not purchasing a WCFab modified turbo from us, it WILL need to be sent in to WCFab to have a flange welded onto the outlet (additional lead time applies).
WCFab's down pipe is an HX40 style flange connection at the turbo exhaust housing. This style offers the best seal, alignment, and easiest install. If you are not purchasing the turbo from WCFab you will need to make sure your turbine exhaust housing is machined to HX40 style outlet flange!
Also compatible with 2003-2004 model year trucks which have updated their exhaust down pipe / front pipe to the later 2004.5-2011 style part.
Not compatible with Banks Power Intercoolers! If you have a Banks Intercooler, please contact us for assistance placing your order.

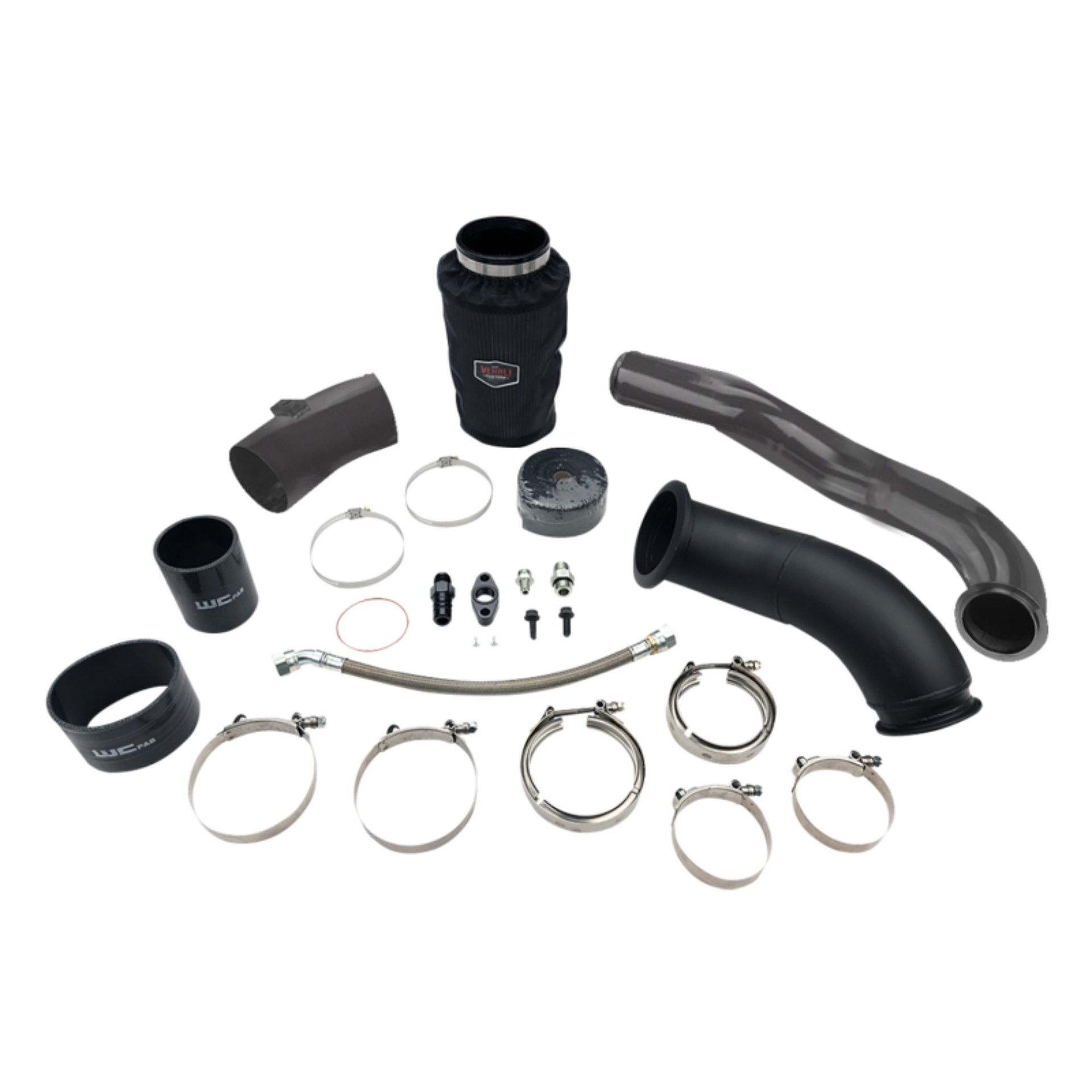

Wehrli 04.5-07 Dodge 5.9L Cummins S300 Turbo 2nd Gen Swap Kit (No Turbo/Manifold) - Bengal Blue
Wehrli Custom Fab S300 High Mnt Turbo 2nd Gen Swap Kit, for 04.5-07 Cummins 5.9L, Bengal Blue
S300 High Mnt Turbo 2nd Gen Swap Kit, for 04.5-07 Cummins 5.9L, Bengal Blue
3" Hot Side Intercooler Pipe (v-band style connection)
4" Shorty Down Pipe (Mates to exhaust system V-band)
Silicone Boots & Stainless Steel T-Bolt Clamps
Dry Air Filter & Outerwear's Pre-Filter Cover
S300 Hi Mt 2G Kit 04.5-07 Ram Dsl Bngl B
Durable Custom Powder Coat Finish
Coolant Hoses & Fittings
Oil Drain Line Assembly
Oil Feed Line Fitting
1/2" T4 Spacer plate
S300 2G 04.5-07 BB
Turbocharger Kit
Made in USA
4" Intake
