When you purchase a BD Transmission and Torque Converter package, you are getting a matched set that has been dyno tested together for ultimate performance, and reliability. Every transmission comes with BD's own Heavy Duty pan that adds extra fluid capacity and case strength. For towing, street or track, when it comes to a dependable transmission that will stand up to your diesel's power and torque demands, the clear choice is BD.
When you purchase a BD transmission and torque converter package, you are getting a matched set that has been dyno tested together for ultimate performance, and reliability. Every transmission comes with BD's own Heavy Duty pan that adds extra fluid capacity. For towing, street or track, when it comes to a dependable transmission that will stand up to your diesel's power and torque demands, the clear choice is BD.
Transmission Kit; Complete Trans; Incl. Auxiliary Filter/2 QT Extra Capacity Pan; Incl. Complete Torque Converter; Enhanced Stall; Stage 4;
BD ProTech68 pressure control module ramps up line pressure to 250 psi using MAP sensor to input load and adjust pressure required
BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum
Custom bonded gasket valve body separator plate increases line pressure while stopping internal cross leaks
BD Deep sump oil pan adds extra fluid and cooling capacity while reducing case flex

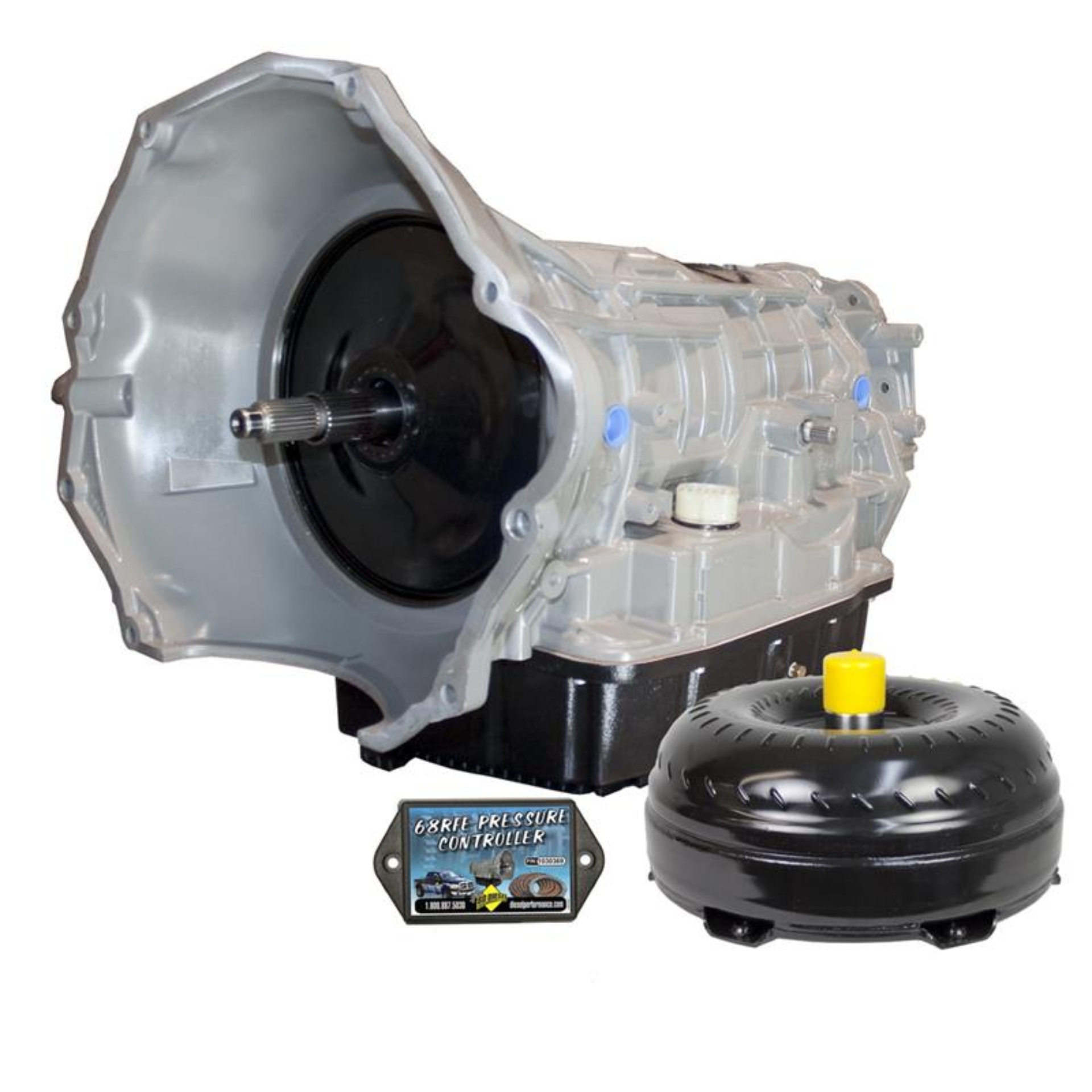

BD Diesel Transmission 2007.5-2018 Dodge 68RFE 4WD w/ Torq Force Converter Package
Steel girdle added to 2C piston to allow for more clutches and broader apply area
BD TowMaster Dodge 68RFE Transmission & Converter Package - 2007.5-2018 4wd
TCC limit valve machined and sleeved to address high wear area with in pump
Billet forged front cover with thicker walls and stronger mounting pads
Hard anodized valve body and new solenoid pack installed in every unit
Furnaced brazed turbine fins for improved fluid coupling efficiency
BD TowMaster Dodge 68RFE Trans & Converter Package 2007.5-2018 4wd
Over Drive clutches 33% increase & 2C clutches 33% increase
Heavy duty cam & roller design low reverse one way clutch
Ideal replacement for stock torque converter
Lower rpm response than the stock converter
Great for street and towing applications
High performance Enhanced stall stator
Upgraded Governor Pressure Transducer
TRANS & CONVERTER PACKAGE 68RFE 4WD
Custom Big Stack overdrive shaft
Automatic Transmission Assembly
Torque Convertor Enhanced Stall
BD reinforced accumulator plate
New 4C billet spring retainer
No Shuttle Shifting Problems
Stamped Forged 1 Piece Cover
Upgraded Governor Solenoid
More Efficient Operation
Good for 550 flywheel HP
Damper springs replaced
11.625 inch dual-clutch
No Race Abuse Covered
TRANSMISSION STAGE 4
Upgraded Valve body
Auto Trans Assembly
Furnace Brazed Fins
PROFORCE CONVERTER:
Transmission Kit
Aluminum HD Pan
TRANSMISSION:
