Hard anodized valve body and new solenoid pack installed in every unit; Custom valve body separator plate with gaskets increases line pressure while stopping internal cross leaks; Heavy duty cam & roller design low reverse one way clutch; New 4C billet spring retainer; Steel girdle added to 2C piston to allow for more clutches and broader apply area; BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum; Clutch count increased to hold high torque level - Over Drive 17% increase, Under Drive 20%, 2C 33% increase; BD reinforced accumulator plate; TCC limit valve machined and sleeved to address high wear area with in pump; BD Deep sump oil pan adds extra fluid and cooling capacity while reducing case flex; BD ProTech68 pressure control module ramps up line pressure to 250 psi using MAP sensor to input load and adjust pressure required
BD's 68RFE is the industry leading transmission. BD has addressed the common failures associated with the stock 68RFE. Burnt overdrive clutches are a thing of the past, utilizing custom billet QT100 reaction plates, longer "Big Stack" spline OD shaft, and 16 frictional surfaces. Every BD 68RFE is also build to withstand 250psi of line pressure for unrivaled torque holding capacity.
BD ProTech68 pressure control module ramps up line pressure to 250 psi using MAP sensor to input load and adjust pressure required
BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum
Custom bonded gasket valve body separator plate increases line pressure while stopping internal cross leaks
BD Deep sump oil pan adds extra fluid and cooling capacity while reducing case flex
Steel girdle added to 2C piston to allow for more clutches and broader apply area
TCC limit valve machined and sleeved to address high wear area with in pump
Hard anodized valve body and new solenoid pack installed in every unit
Heavy Duty Cam And Roller Design Low Reverse One Way Clutch
Over Drive clutches 33% increase & 2C clutches 33% increase
Heavy duty cam & roller design low reverse one way clutch
BD TowMaster Dodge 68RFE Transmission - 2007.5-2018 4wd
Valve Body Separator Plate Stops Internal Cross Leaks
BD TowMaster Dodge 68RFE Transmission 2007.5-2018 4wd

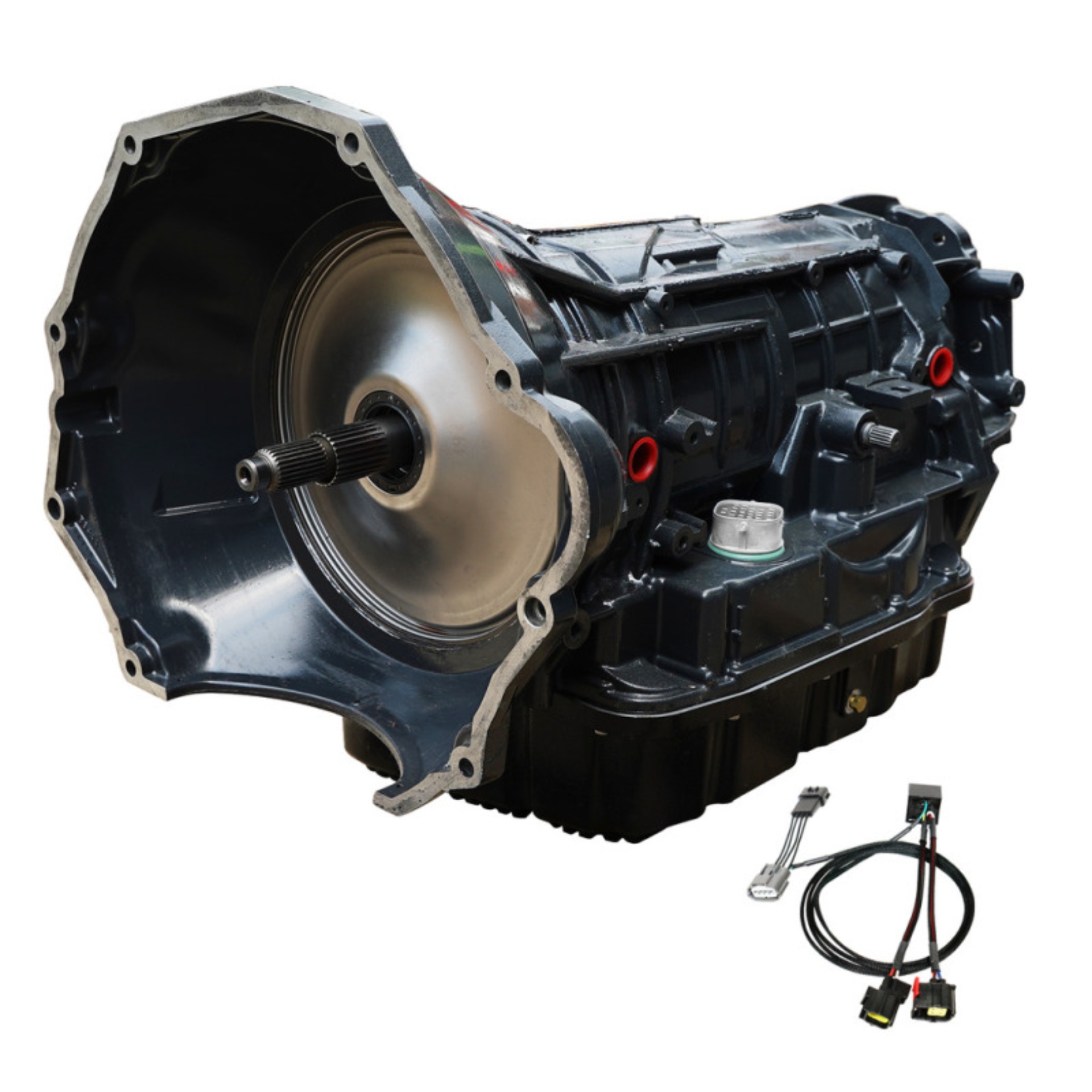

BD Diesel Transmission - 2007.5-2017 Dodge 68RFE 4WD
QT100 Pressure Plates For Increased Clutch Counts
TRANSMISSION 68RFE DODGE 2007-18 6.7 4WD
36 Month/150000 Mile Limited Warranty
Transmission; Complete; Stage 4;
Custom Big Stack overdrive shaft
Automatic Transmission Assembly
BD reinforced accumulator plate
New 4C billet spring retainer
No Race Abuse Covered
TRANSMISSION STAGE 4
Auto Trans Assembly
Transmission
