BD Diesel Performance is unique among its peers in that it designs, manufactures and distributes a wide range of products specifically engineered for performance diesel applications. Located in Abbotsford, British Columbia, Canada, BD's state-of-the-art facility covers 65,000 square feet, and employs 60 plus highly-trained individuals. The BD name became recognized in 1989, when the company introduced the first exhaust brake for the burgeoning diesel pick-up truck market. BD's roots, however, actually date back to 1972, when Valley Fuel Injection, Ltd. first opened its doors. Today, Valley Fuel Injection and BD Diesel Performance are one, with eight specialty divisions that focus on diesel power train components: Fuel Injection Calibration Department, Exhaust Brake Manufacturing, Electronic Circuit Design and Assembly, Transmission and Torque Converter Design and Remanufacturing, Turbocharger Design, Installation and Research and Development. BD's comprehensive approach to the diesel performance aftermarket ensures not only quality products, but educated dealers and satisfied customers. Thank you for your interest in BD Diesel Performance!
BD's 68RFE is the industry leading transmission. BD has addressed the common failures associated with the stock 68RFE. Burnt overdrive clutches are a thing of the past, utilizing custom billet QT100 reaction plates, longer "Big Stack" spline OD shaft, and 16 frictional surfaces. Every BD 68RFE is also build to withstand 250psi of line pressure for unrivaled torque holding capacity.
BD ProTech68 pressure control module ramps up line pressure to 250 psi using MAP sensor to input load and adjust pressure required
BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum
Custom bonded gasket valve body separator plate increases line pressure while stopping internal cross leaks
BD Deep sump oil pan adds extra fluid and cooling capacity while reducing case flex
Steel girdle added to 2C piston to allow for more clutches and broader apply area
TCC limit valve machined and sleeved to address high wear area with in pump
Hard anodized valve body and new solenoid pack installed in every unit
Use Of Third Party Or OE Converter Will Invalidate Trans. Warranty
Heavy Duty Cam And Roller Design Low Reverse One Way Clutch
Over Drive clutches 33% increase & 2C clutches 33% increase
Heavy duty cam & roller design low reverse one way clutch
BD TowMaster Dodge 68RFE Transmission - 2007.5-2018 2wd
BD TowMaster Dodge 68RFE Transmission 2007.5-2018 2wd
Valve Body Separator Plate Stops Internal Cross Leaks

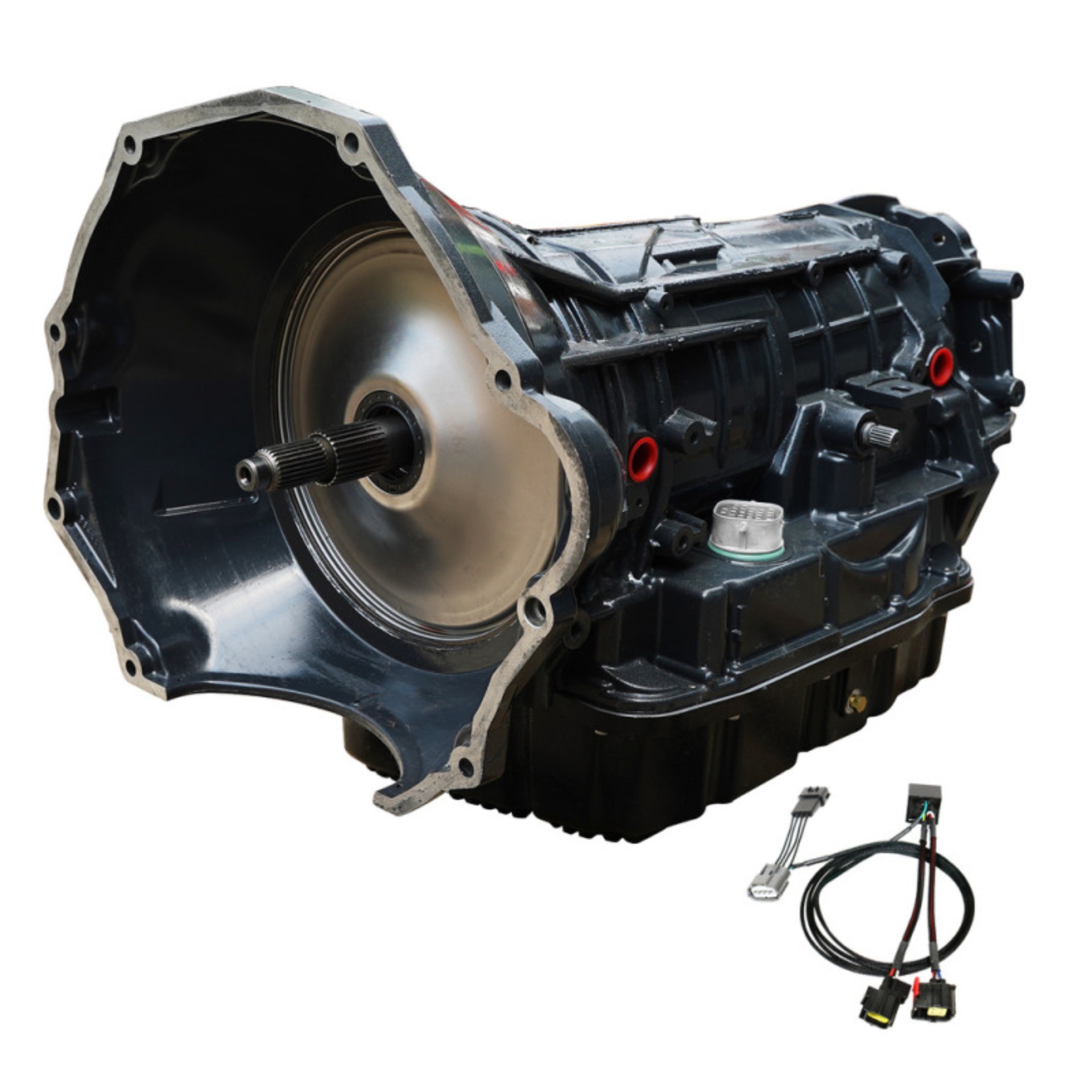

BD Diesel Transmission - 07.5 - 18 Dodge 68RFE 2WD
QT100 Pressure Plates For Increased Clutch Counts
TRANSMISSION 68RFE DODGE 2007-18 6.7 2WD
36 Month/150000 Mile Limited Warranty
Transmission; Complete; Stage 4;
Custom Big Stack overdrive shaft
Automatic Transmission Assembly
BD reinforced accumulator plate
New 4C billet spring retainer
No Race Abuse Covered
TRANSMISSION STAGE 4
Auto Trans Assembly
Transmission
