Transmission-Upgraded Valvebody, Upgraded governor solenoid, Upgraded governor pressure transducer (47RE/48RE) - Twice the burst pressure than stock. Increased line pressure to 190-200psi. No shuttle shifting problems, Modified manual valve for lube in all positions. Stock thrust bushings replaced with roller Torrington bearings. Clutch Count: DIRECT 6, Clutch Count: FORWARD 5, Clutch Count: OD 6, Clutch Count: OD DIRECT 10. High temp/energy Raybestos band. Billet band lever, billet band strut. Billet Input Shaft to take the 'snap' from rapid throttle and high horsepower. Billet 'Big' fine spline input shaft. Drilled intermediate shaft for increased lubrication. BD rigid aluminum heavy duty transmission pan. Pan adds 2qt extra oil capacity. Pan heat-dissipating fins keep temperature down. Magnetic drain plug. Increase the durability of your drivetrain. BD auxiliary full flow filter kit for extra protection. Cooler line case saver in every transmission. Every transmission is tested on a dyno. Torque Convertor- Enhanced Stall - Street/Towing applications. Machined pistons, HD springs absorb shock of engagement, Stamp forged 1-piece cover, Eliminates warpage from clutch heat, Taller cover can be rebuilt more often. Trapezoid teeth design, Engineered tighter tolerances. Self-centering teeth design increases contact decreases wear and chatter. Thrust bearings - not plastic thrust washers. Riveting process ensures alignment & eliminates vibration or embrittlement from welding. Cast stator designs maximizes torque. New sprag components ensure long term durability. Reduced overall weight by 12lbs compared to competitors. Warranty-> Parts 36 Month/150,000 miles, Labor 12 Month 24000 Miles
When you purchase a BD transmission and torque converter package, you are getting a matched set that has been dyno tested together for ultimate performance, and reliability. Every transmission comes with BD's own Heavy Duty pan that adds extra fluid capacity. For towing, street or track, when it comes to a dependable transmission that will stand up to your diesel's power and torque demands, the clear choice is BD.
Transmission Kit; Complete Trans; Incl. Complete Torque Converter; Enhanced Stall; Stage 4;
Heavy duty snap ring and blow-off valve to prevent runaway pressure damaging case

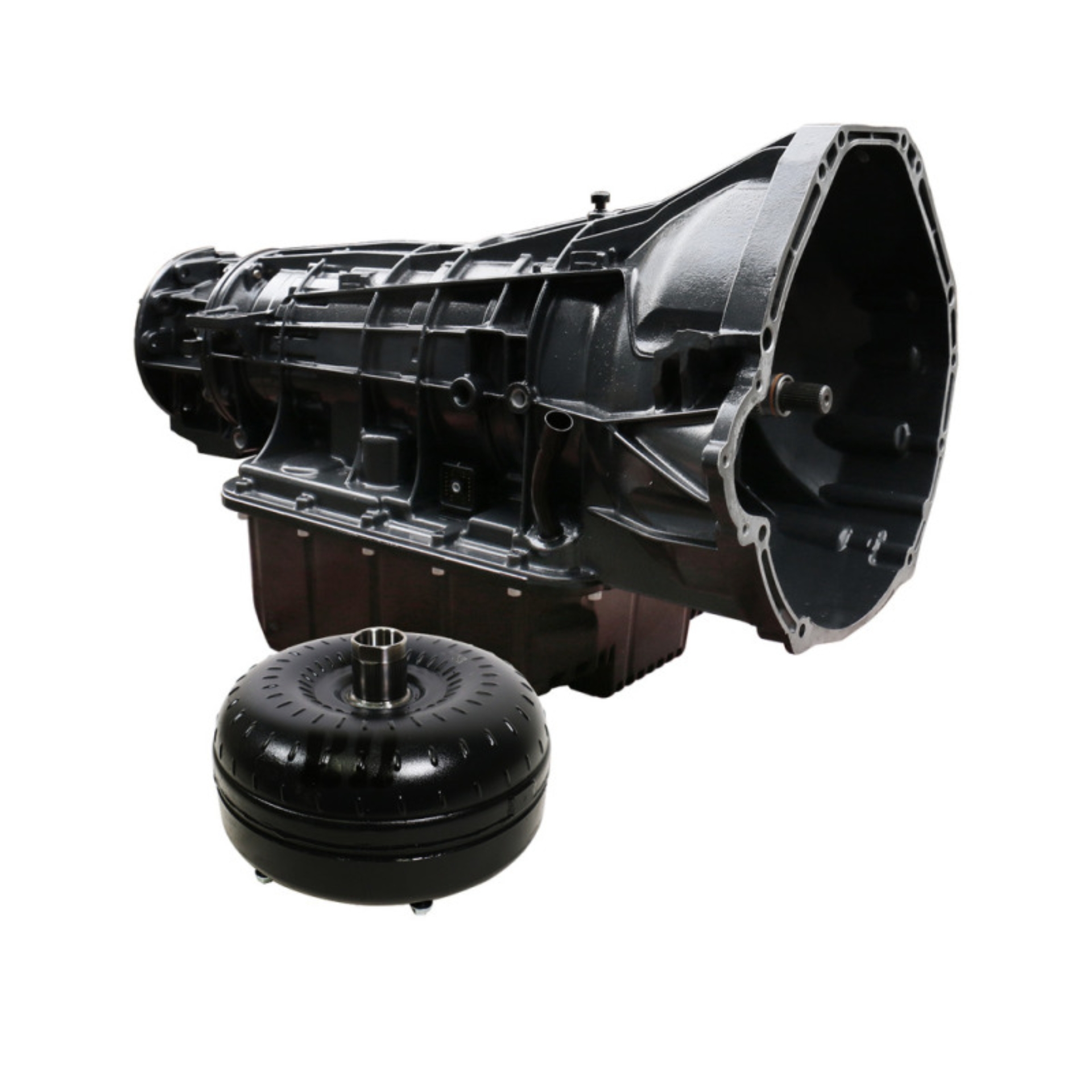

BD Diesel Ford F250 2003-2004 6.0L 4wd 5R110 Transmission And Converter Package
BD TowMaster Ford 5R110 Transmission & Converter Package - 2003-2004 4wd
BD TowMaster Ford 5R110 Trans & Converter Package 2003-2004 4wd
Replace plastic pressure plugs in valve body with aluminum
BD aluminum HD deep pan, increases oil capacity by 6qt
Clutch Count: INTERMEDIATE 5 (67% increase over stock)
Clutch Count: OVERDRIVE 5 (67% increase over stock)
Up to triple the amount of lock-up clutch material
Clutch Count: DIRECT 6 (20% increase over stock)
Enhanced Stall - Street/Towing applications
Lower rpm response than the stock converter
Increase The Durability Of Your Drivetrain
Torque multiplying cast aluminum stators
TRANS PACKAGE FORD 2003-2004 5R110 4WD
Less heat and better fuel economy
Aluminum HD Deep Transmission Pan
Each transmission is dyno tested
Automatic Transmission Assembly
Torque Convertor Enhanced Stall
Stamp-forged steel front cover
Stamped Forged 1 Piece Cover
Clutch Count: COAST CLUTCH 3
Clutch Count: LOW REVERSE 6
More Efficient Operation
Clutch Count: FORWARD 4
No Race Abuse Covered
Upgraded Sump Filter
Auto Trans Assembly
Reworked Front Pump
Furnace Brazed Fins
Furnace-brazed fins
TRANS PKG STAGE 4
TORQUE CONVERTOR:
Transmission Kit
TRANSMISSION:
