Transmission-Upgraded Valvebody, Increased line pressure to 190-200psi. Stock thrust bushings replaced with roller Torrington bearings. Clutch Count: DIRECT 5, Clutch Count: FORWARD 5, Clutch Count: OD 6, Clutch Count: OD DIRECT 10. High temp Raybestos band. Billet band lever, billet band strut. Billet Input Shaft to take the 'snap' from rapid throttle and high horsepower. BD rigid aluminum heavy duty transmission pan. Pan adds 2qt extra oil capacity. Pan heat-dissipating fins keep temperature down. Magnetic drain plug. Increase the durability of your drivetrain. BD auxiliary full flow filter kit for extra protection. Cooler line case saver in every transmission. Every transmission is tested on a dyno. Torque Convertor- Enhanced Stall. Torque Multiplying cast aluminum stators. Lower RPM Response than the stock converter. More efficient operation, less heat and better fuel economy. Stamp-forged steel front cover, furnace brazed fins, up to triple the mount of lockup clutch material. Warranty- 36 Month/150,000 Miles on Parts, 12 Month/24000 miles on Labor.
When you purchase a BD transmission and torque converter package, you are getting a matched set that has been dyno tested together for ultimate performance, and reliability. Every transmission comes with BD's own Heavy Duty pan that adds extra fluid capacity. For towing, street or track, when it comes to a dependable transmission that will stand up to your diesel's power and torque demands, the clear choice is BD.
Transmission Kit; Complete Trans; Incl. Auxiliary Filter Kit; Incl. Complete Torque Converter; Enhanced Stall; Stage 4;

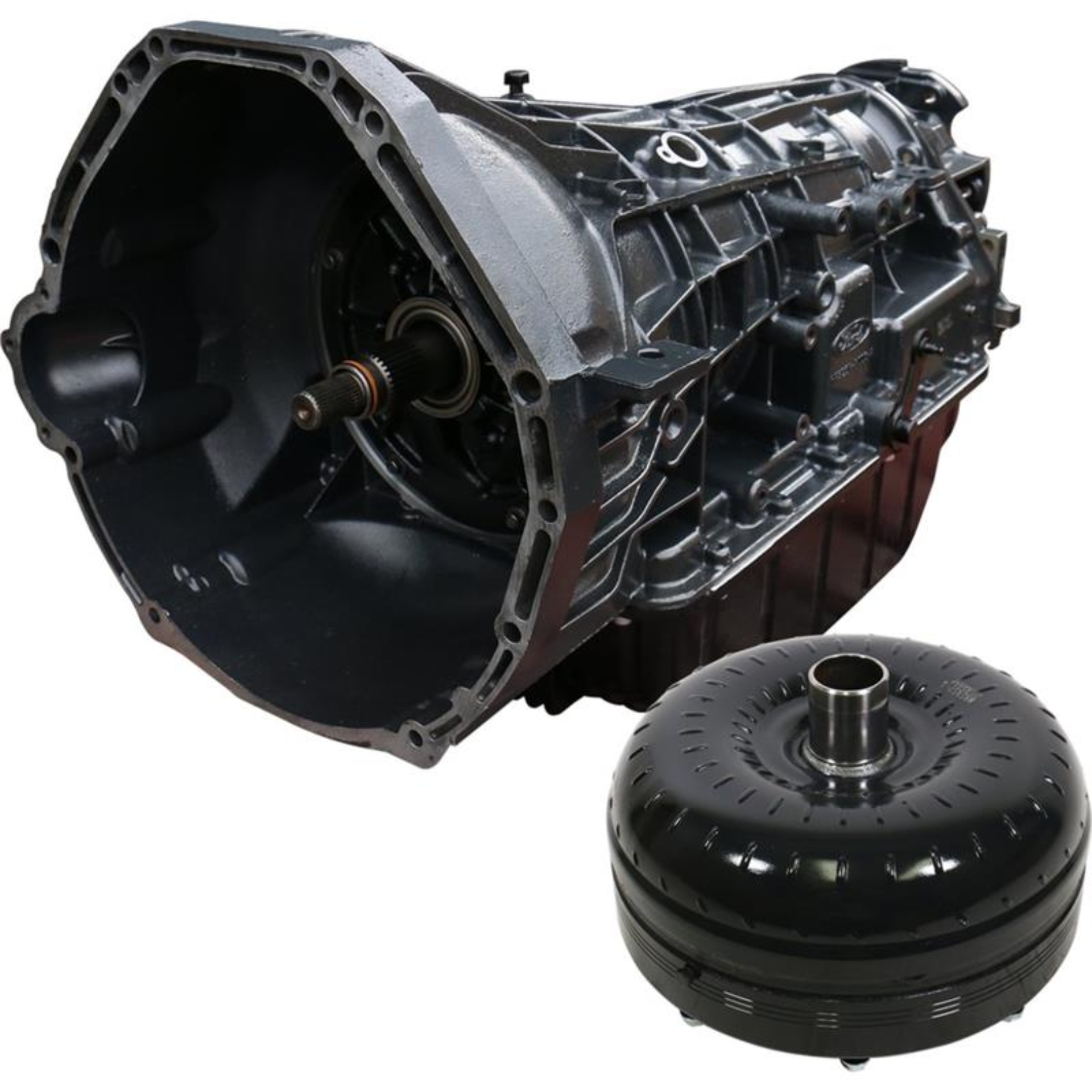

BD TowMaster Ford 5R110 Transmission & Converter Package - 2008-2010 6.4L Power Stroke 4wd
Heavy duty snap ring and blow-off valve to prevent runaway pressure damaging case
BD TowMaster Ford 5R110 Trans & Converter Pkg 2008-2010 6.4L Power Stroke 4wd
Improvements made to increase cooling and lubrication of the clutch plates
HD Damper assembly absorbs close to twice the stock capacity shock load
BD Diesel Ford 08-10 6.4L 4WD 5R110 Transmission & Converter Package
Replace plastic pressure plugs in valve body with aluminum
Clutch Count: INTERMEDIATE 5 (67% increase over stock)
BD aluminum HD deep pan, increases oil capacity by 6qt
Clutch Count: OVERDRIVE 5 (67% increase over stock)
Modified stator enhances torque multiplying effect
Clutch Count: DIRECT 6 (20% increase over stock)
Lower rpm response than the stock converter
Enhanced Stall - Street/Towing applications
Increase The Durability Of Your Drivetrain
High Yield Strength forged machined piston
TRANS PACKAGE FORD 2008-2010 5R110 4WD
Three high performance clutch surfaces
Furnace-brazed pump and turbine fins
Aluminum HD Deep Transmission Pan
Less heat and better fuel economy
Each transmission is dyno tested
Automatic Transmission Assembly
Torque Convertor Enhanced Stall
Stamp-forged steel front cover
Stamped Forged 1 Piece Cover
Clutch Count: COAST CLUTCH 3
Clutch Count: LOW REVERSE 6
More Efficient Operation
Clutch Count: FORWARD 4
No Race Abuse Covered
Upgraded Sump Filter
Auto Trans Assembly
Reworked Front Pump
Furnace Brazed Fins
TRANS PKG STAGE 4
TORQUE CONVERTOR:
Transmission Kit
TRANSMISSION:
