When you purchase a BD Transmission and Torque Converter package, you are getting a matched set that has been dyno tested together for ultimate performance, and reliability. Every transmission comes with BD's own Heavy Duty pan that adds extra fluid capacity and case strength. For towing, street or track, when it comes to a dependable transmission that will stand up to your diesel's power and torque demands, the clear choice is BD.
When you purchase a BD transmission and torque converter package, you are getting a matched set that has been dyno tested together for ultimate performance, and reliability. Every transmission comes with BD's own Heavy Duty pan that adds extra fluid capacity. For towing, street or track, when it comes to a dependable transmission that will stand up to your diesel's power and torque demands, the clear choice is BD.
BD TorqueMaster Chevy Allison 1000 Transmission & Converter Package c/w Billet Input & Triple Torque - 2004.5-2006 LLY 5-speed 4wd
Transmission Kit; Complete Trans; Incl. Triple Disc Converter; Enhanced Stall; Stage 5;

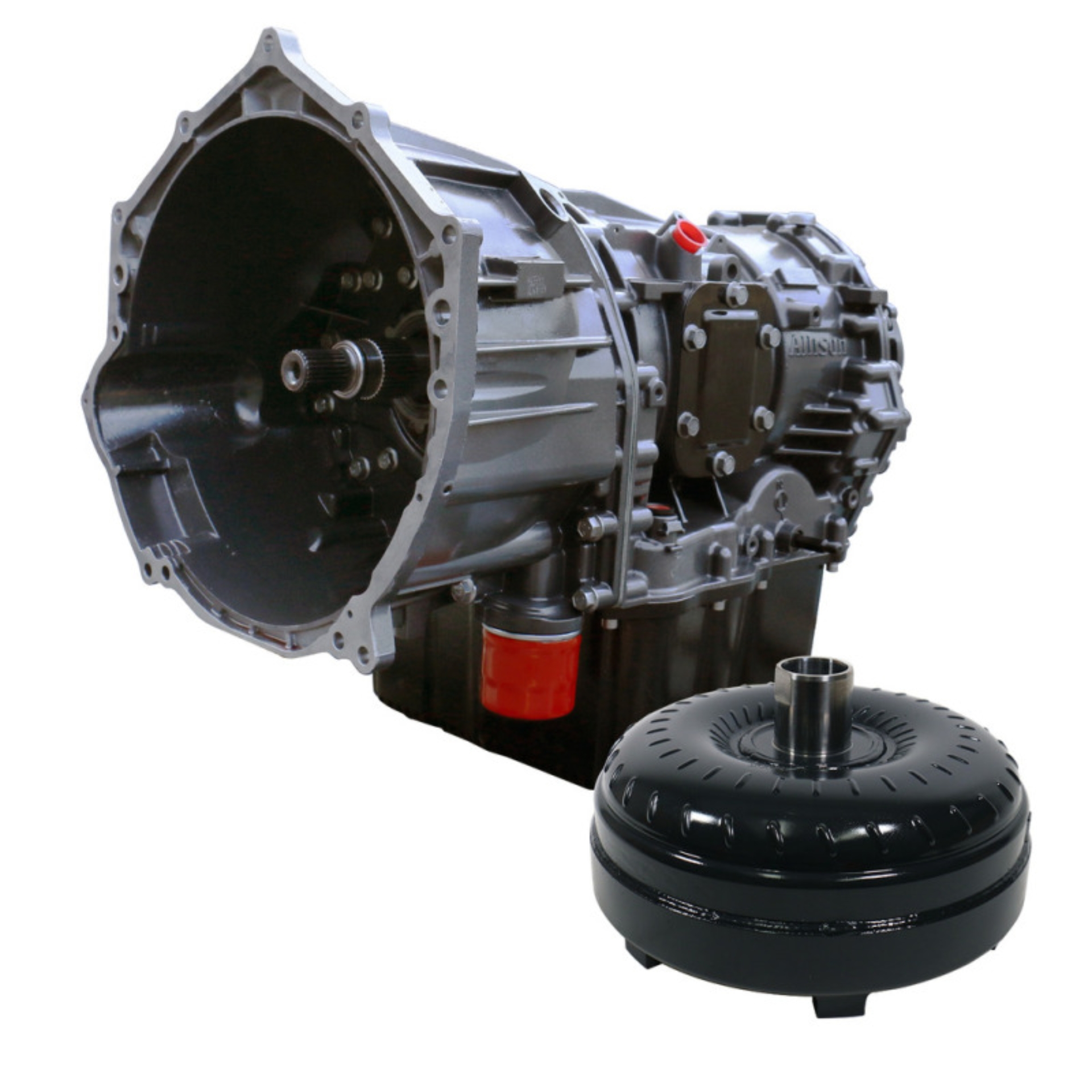

BD Diesel Duramax Allison Transmission & Converter Package - Chevy 2004.5-2006 LLY 4WD
Riveted piston ensures alignment & eliminates vibration or embrittlement from welding
Self-centering trapezoid teeth design increases contact decreases wear and chatter
Billet Input Shaft to take the "snap" from rapid throttle and high horsepower
BD TorqueMaster Chevy Allison Trans & Converter Package 2004.5-2006 LLY 4wd
BD Aluminum HD deep transmission pan, increases oil capacity by 3.5qt
Furnaced brazed turbine fins for improved fluid coupling efficiency
New A & B trim valves deliver full line pressure to the clutches
Reduced overall weight by 12lbs compared to competitors
New convertor lock up valve to boost lock-up pressures
Clutch Count: C2 7 clutches (17% increase over stock)
Clutch Count: C3 7 clutches (75% increase over stock)
Clutch Count: C1 8 clutches (14% increase over stock)
Clutch Count: C4 7 clutches (17% increase over stock)
Clutch Count: C5 7 clutches (17% increase over stock)
New sprag components ensure long term durability
Thrust bearings - not plastic thrust washers
Enhanced Stall - Street/Towing applications
Increase The Durability Of Your Drivetrain
TRANS PACKAGE CHEVY 2004.5-2006 LLY 4WD
Taller cover can be rebuilt more often
HD springs absorb shock of engagement
Cast stator designs maximizes torque
Eliminates warpage from clutch heat
Aluminum HD Deep Transmission Pan
Each transmission is dyno tested
Automatic Transmission Assembly
Torque Convertor Enhanced Stall
High energy GPZ(TM) frictions
Engineered tighter tolerances
Stamped Forged 1 Piece Cover
High Energy Clutch Material
Stamp forged 1-piece cover
More Efficient Operation
Increased Clutch Count
Trapezoid teeth design
No Race Abuse Covered
Revised oil circuits
Auto Trans Assembly
Furnace Brazed Fins
TRANS PKG STAGE 5
TORQUE CONVERTOR:
Transmission Kit
TRANSMISSION:
Triple Disc
