Transmission-Upgraded Valvebody, Upgraded governor solenoid, Upgraded governor pressure transducer (47RE/48RE) - Twice the burst pressure than stock. Increased line pressure to 190-200psi. No shuttle shifting problems, Modified manual valve for lube in all positions. Stock thrust bushings replaced with roller Torrington bearings. Clutch Count: DIRECT 6, Clutch Count: FORWARD 5, Clutch Count: OD 6, Clutch Count: OD DIRECT 10. High temp/energy Raybestos band. Billet band lever, billet band strut. Billet Input Shaft to take the 'snap' from rapid throttle and high horsepower. Billet 'Big' fine spline input shaft. Drilled intermediate shaft for increased lubrication. BD rigid aluminum heavy duty transmission pan. Pan adds 2qt extra oil capacity. Pan heat-dissipating fins keep temperature down. Magnetic drain plug. Increase the durability of your drivetrain. BD auxiliary full flow filter kit for extra protection. Cooler line case saver in every transmission. Every transmission is tested on a dyno. Torque Convertor- Enhanced Stall. Torque Multiplying cast aluminum stators. Lower RPM Response than the stock converter. More efficient operation, less heat and better fuel economy. Stamp-forged steel front cover, furnace brazed fins, up to triple the mount of lockup clutch material. Warranty- 36 Month/150,000 Miles on Parts, 12 Month/24000 miles on Labor.
When you purchase a BD transmission and torque converter package, you are getting a matched set that has been dyno tested together for ultimate performance, and reliability. Every transmission comes with BD's own Heavy Duty pan that adds extra fluid capacity. For towing, street or track, when it comes to a dependable transmission that will stand up to your diesel's power and torque demands, the clear choice is BD.
Transmission Kit; Complete Trans; Incl. Billet Input Shaft/Auxiliary Filter/2 QT Extra Capacity Pan; Incl. Complete Torque Converter; Enhanced Stall; Stage 5;

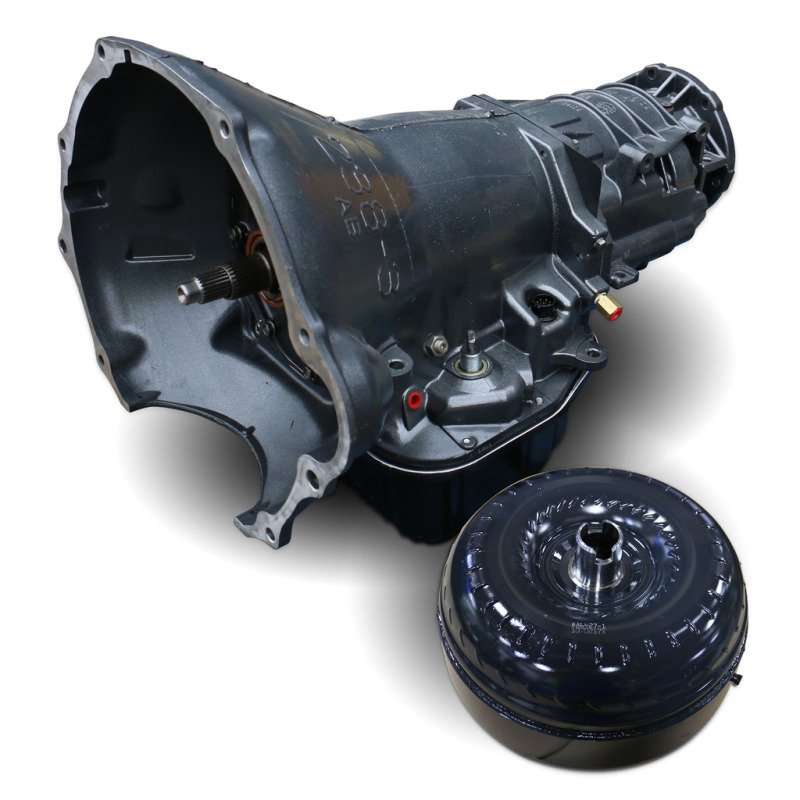

BD TorqueMaster Dodge 47RE Transmission & Converter Package - 2000-2002 4wd c/w Auxiliary Filter & Billet Input
BD Diesel Dodge 47RE Transmission & Converter Package - 2000-2002 4wd c/w Billet Input
Riveted piston ensures alignment & eliminates vibration or embrittlement from welding
Self-centering trapezoid teeth design increases contact decreases wear and chatter
Billet Input Shaft to take the "snap" from rapid throttle and high horsepower
Furnaced brazed turbine fins for improved fluid coupling efficiency
BD TorqueMaster Dodge 47RE Trans & Converter Package 2000-2002 4wd
Upgraded governor solenoid - Twice the burst pressure than stock
Stock thrust bushings replaced with roller Torrington bearings
Reduced overall weight by 12lbs compared to competitors
BD auxiliary full flow filter kit for extra protection
Drilled intermediate shaft for increased lubrication
Upgraded governor pressure transducer (47RE/48RE)
New sprag components ensure long term durability
Pan heat-dissipating fins keep temperature down
Modified manual valve for lube in all positions
BD rigid aluminum heavy duty transmission pan
Cooler line case saver in every transmission
Thrust bearings - not plastic thrust washers
Enhanced Stall - Street/Towing applications
Increase the durability of your drivetrain
Torque Convertor Has Machined Positions
Not warranted for Race or Sled Pull use
TRANS PACKAGE DODGE 2000-2002 47RE 4WD
Every transmission is tested on a dyno
Taller cover can be rebuilt more often
Increased line pressure to 190-200psi
HD springs absorb shock of engagement
Upgraded Governor Pressure Transducer
Cast stator designs maximizes torque
Eliminates Warpage From Clutch Heat
Automatic Transmission Assembly
Pan adds 2qt extra oil capacity
High temp/energy Raybestos band
Engineered Tighter Tolerances
No Shuttle Shifting Problems
Stamped Forged 1 Piece Cover
Upgraded Governor Solenoid
Stamp forged 1-piece cover
Clutch Count: OD DIRECT 10
Clutch Count: FORWARD 5
Upgraded 48RE sunshell
Clutch Count: DIRECT 6
Trapezoid Teeth Design
No Race Abuse Covered
Upgraded Valve body
Auto Trans Assembly
Magnetic drain plug
Billet barrel strut
Clutch Count: OD 6
TRANS PKG STAGE 5
TORQUE CONVERTOR:
Billet band lever
Transmission Kit
Aluminum HD Pan
TRANSMISSION:
Triple Disc
