When you purchase a BD transmission and torque converter package, you are getting a matched set that has been dyno tested together for ultimate performance, and reliability. Every transmission comes with BD's own Heavy Duty pan that adds extra fluid capacity. For towing, street or track, when it comes to a dependable transmission that will stand up to your diesel's power and torque demands, the clear choice is BD.
When you purchase a BD transmission and torque converter package, you are getting a matched set that has been dyno tested together for ultimate performance, and reliability. Every transmission comes with BD's own Heavy Duty pan that adds extra fluid capacity. For towing, street or track, when it comes to a dependable transmission that will stand up to your diesel's power and torque demands, the clear choice is BD.
Performance Transmission but with the added touch of a Billet Input Shaft to take the "snap" from rapid throttle and high horsepower
BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum
Special tuning required for 2019-up applications for increased line pressure. Line pressure controller not included.
Custom bonded gasket valve body separator plate increases line pressure while stopping internal cross leaks
BD TorqueMaster Dodge 68RFE Transmission & Converter Package - 2019-2022 4wd c/w Billet Input Shaft
Transmission Kit; 68RFE Transmission; Stage 5; Incl. Billet Input Shaft/Converter Package;

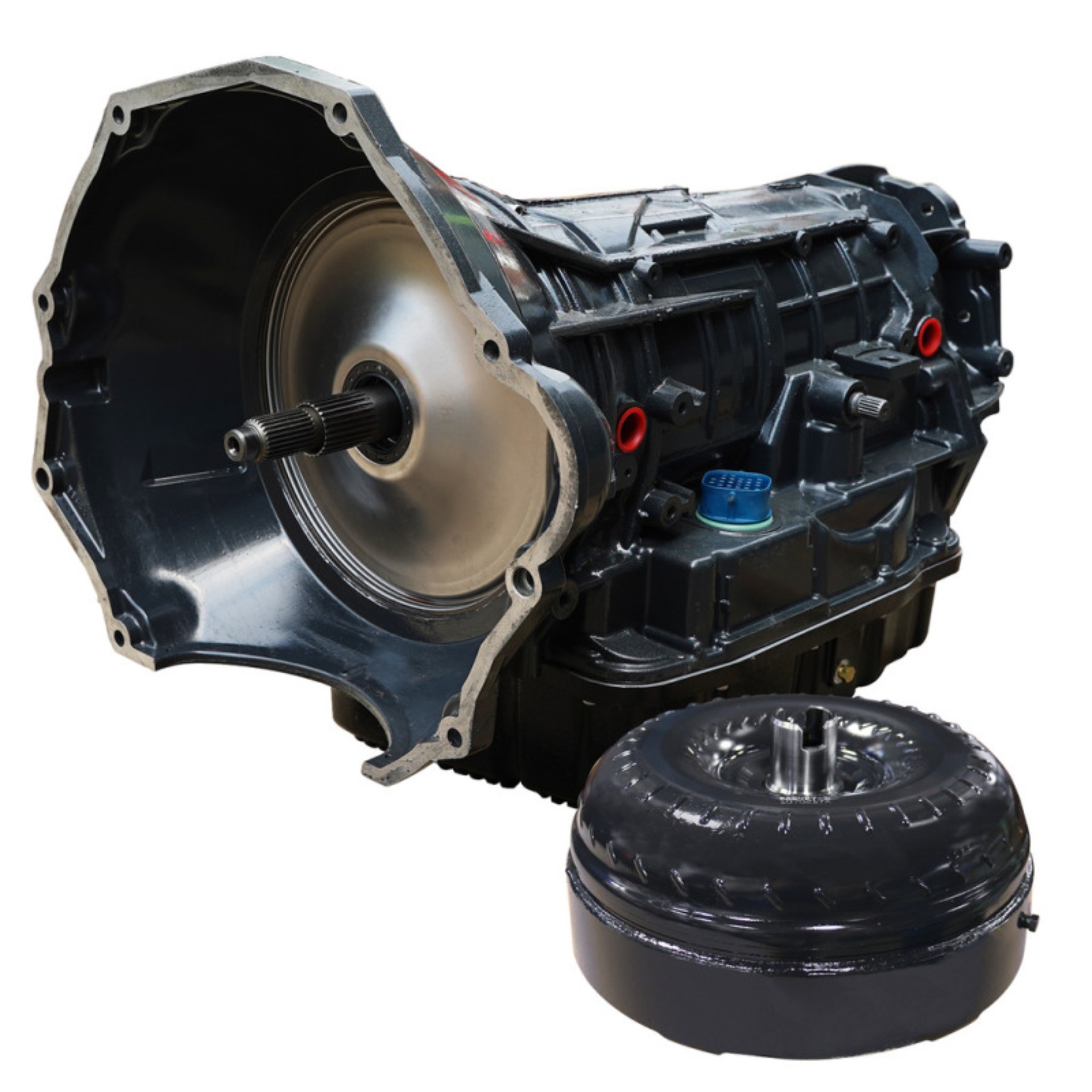

BD Diesel Dodge 68RFE Trans & Converter Stg 5 Pkg Dodge 2019-2022 4wd c/w Billet Input
Riveted piston ensures alignment & eliminates vibration or embrittlement from welding
BD Deep sump oil pan adds extra fluid and cooling capacity while reducing case flex
Self-centering trapezoid teeth design increases contact decreases wear and chatter
Steel girdle added to 2C piston to allow for more clutches and broader apply area
Hard anodized valve body and new solenoid pack installed in every unit
BD TorqueMaster Dodge 68RFE Trans & Converter Package 2019-2022 4wd
Furnaced brazed turbine fins for improved fluid coupling efficiency
Heavy Duty Cam And Roller Design Low Reverse One Way Clutch
BD Durable QT100 Pressure Plates For Increase Clutch Counts
Over Drive clutches 33% increase & 2C clutches 33% increase
Heavy duty cam & roller design low reverse one way clutch
Reduced overall weight by 12lbs compared to competitors
New sprag components ensure long term durability
Valve Body And Solenoid Installed In Every Unit
Thrust bearings - not plastic thrust washers
Enhanced Stall - Street/Towing applications
TRANS PACKAGE 68RFE DODGE 2019-2022 4WD
Taller cover can be rebuilt more often
HD springs absorb shock of engagement
Cast stator designs maximizes torque
Eliminates warpage from clutch heat
Custom Big Stack Overdrive Shaft
Automatic Transmission Assembly
Custom Bonded Gasket Valve Body
Steel Girdle Added To 2C Piston
BD Reinforced Accumulator Plate
New 4C Billet Spring Retainer
Engineered tighter tolerances
Stamp forged 1-piece cover
Trapezoid teeth design
No Race Abuse Covered
Auto Trans Assembly
TRANS PKG STAGE 5
TORQUE CONVERTOR:
Transmission Kit
TRANSMISSION:
Triple Disc
