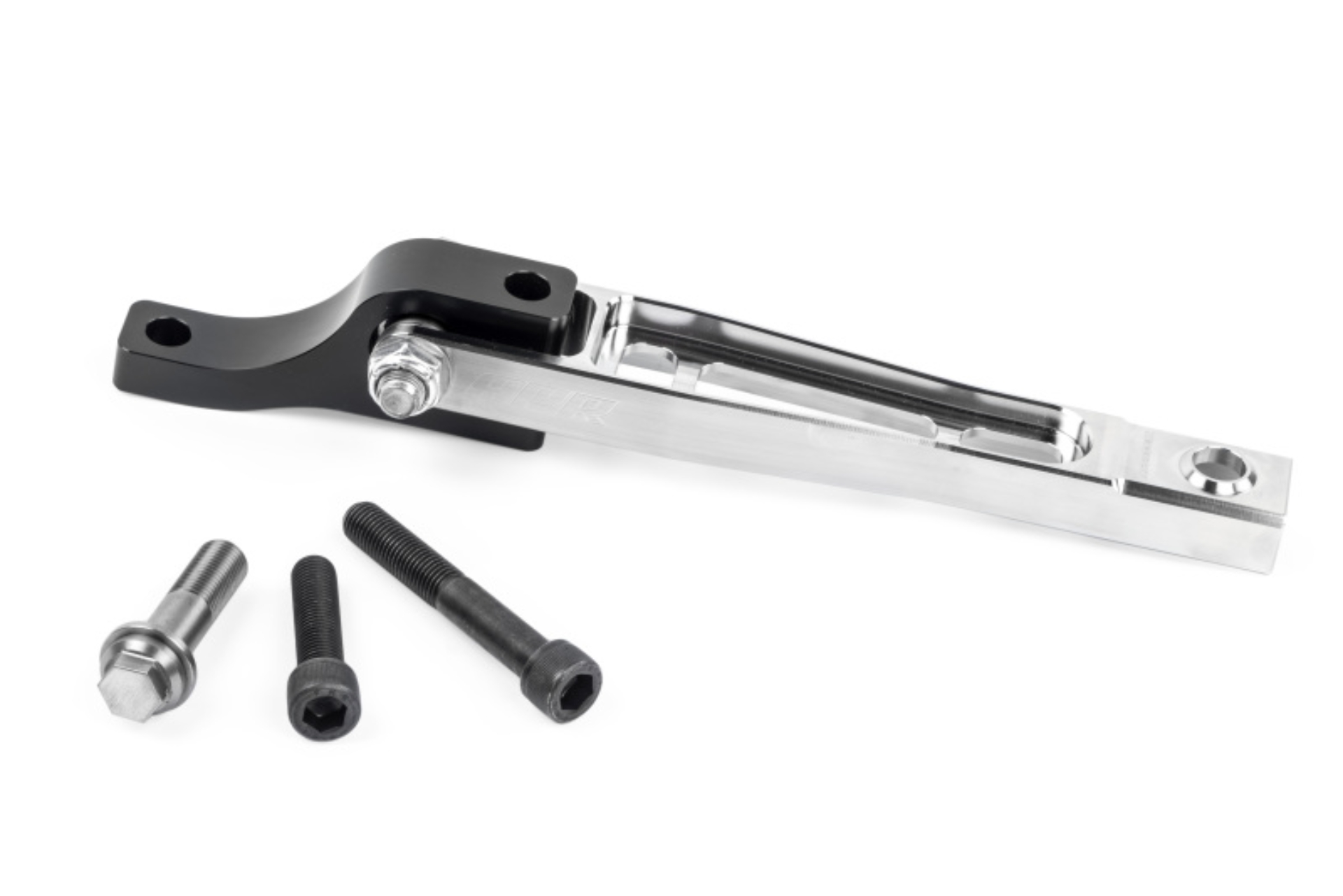

The APR Pendulum mount replaces the factory mount with a new, thick, billet-aluminum and billet-stainless-steel two-piece design, featuring a PTFE-lined spherical bearing and new bolts. The system stiffens the driveline to improve shift quality and power transition. It is easy to install, addresses all concerns with the factory setup and includes all necessary hardware to bolt on and enjoy!
The front and rear pieces replace the factory cast aluminum and stamped steel pieces with precisely machined, billet-aluminum and billet-stainless-steel pieces that are strong.
The aluminum piece is anodized black and the stainless piece is electropolished to provide corrosion resistance and the APR logo is laser etched on each side.
Expect a sportier feel during acceleration, deceleration and gear changes without an excessive increase in NVH when paired with the factory sub-frame mount.
The system is easy to install, doesn't require dropping the sub-frame and is compatible with the factory and factory-like modified sub-frame mounts.
By removing the factory rubber bushing, the APR system reduces slop in the driveline to improve shifts, and transmission of power to the ground.
The bearing is fully-serviceable, features a heat-treated race and precision-ground ball, with a self-sealing and self-lubricating PTFE lining.
The APR system includes non-one-time-use bolts for their strength, quality and longevity over the factory bolts.
As such, the APR mount uses a spherical bearing, made possible by upgrading the rear mounting hardware.
Spherical bearings offer far less unwanted movement over rubber and polyurethane inserts.
The factory bolts are one-time-use, and must be replaced when installing a new mount.
Fits Audi RS3 17-24, TT RS Quattro 18-22; Volkswagen Arteon 19-21
APR 17-20 Audi RS3 (MQB 7 Speed DQ500 & 8 Speed AQ450) Mount Kit
Aluminum Pendulum Mount MQB (7 Speed DQ500 and 8 Speed AQ450)
Billet-aluminum and billet-stainless-steel construction
Full install directions are included with each system.
Reduces transmission movement
DOGBONE MOUNT KIT MQB DQ500
APR Billet Stainless-Steel
Spherical bearing
Replacement bolts
Easy to install
Mount
