BD Diesel Performance is unique among its peers in that it designs, manufactures and distributes a wide range of products specifically engineered for performance diesel applications. Located in Abbotsford, British Columbia, Canada, BD's state-of-the-art facility covers 65,000 square feet, and employs 60 plus highly-trained individuals. The BD name became recognized in 1989, when the company introduced the first exhaust brake for the burgeoning diesel pick-up truck market. BD's roots, however, actually date back to 1972, when Valley Fuel Injection, Ltd. first opened its doors. Today, Valley Fuel Injection and BD Diesel Performance are one, with eight specialty divisions that focus on diesel power train components: Fuel Injection Calibration Department, Exhaust Brake Manufacturing, Electronic Circuit Design and Assembly, Transmission and Torque Converter Design and Remanufacturing, Turbocharger Design, Installation and Research and Development. BD's comprehensive approach to the diesel performance aftermarket ensures not only quality products, but educated dealers and satisfied customers. Thank you for your interest in BD Diesel Performance!
Are you a looking to rebuild your own transmission and needing some specialty parts to match your application? BD offers a range of rebuild parts kits featuring the same parts we use in our own performance transmissions for the seasoned builder to complete the job. All kits include the basic rebuild parts and gaskets and have the added touches that range from stock HP up to our Stage 4 Master Kit - which is pretty well everything we put in our own transmission rebuilds. Not all multi-disc converters are created equal and with BD's ProForce 3D, less is more. Our in-house CNC machined billet cover is designed to prevent warping and improper balancing. With our cover design, we were able to increase strength while maintaining the factory height. We have engineered the clutch piston and damper assembly for increased strength, while retaining smooth and reliable vibration damping. With self-centering trapezoid clutch teeth design, our clutch packs ensure proper alignment and less wear resulting a longer converter life cycle.
BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum
Stage 4 Performance Build-It Transmission Kit; Incl. Basic Rebuild Parts/Gaskets/Hardware; w/Torque Converter;
Custom bonded gasket valve body separator plate increases line pressure while stopping internal cross leaks
Riveted piston ensures alignment & eliminates vibration or embrittlement from welding
Pressure Control module delivers up to 250psi clutch apply pressure at full throttle
Self-centering trapezoid teeth design increases contact decreases wear and chatter
Stiffer Billet Intermediate Reaction Plate, Billet Over Drive/Rev Reaction Plate
Qty 3: 2C Clutch Friction, 2C Clutch Steel, 4C Clutch Friction, 4C Clutch Steel
Seal - Solenoid Pack Connector, 4wd Output Shaft, 2wd Output Shaft, Input Shaft
Dynamically adjusts hydraulic apply pressures based on turbo boost/engine load
Over Drive clutches 17% increase and Under Drive clutches 20% increase
Furnace brazed turbine fins for improved fluid coupling efficiency

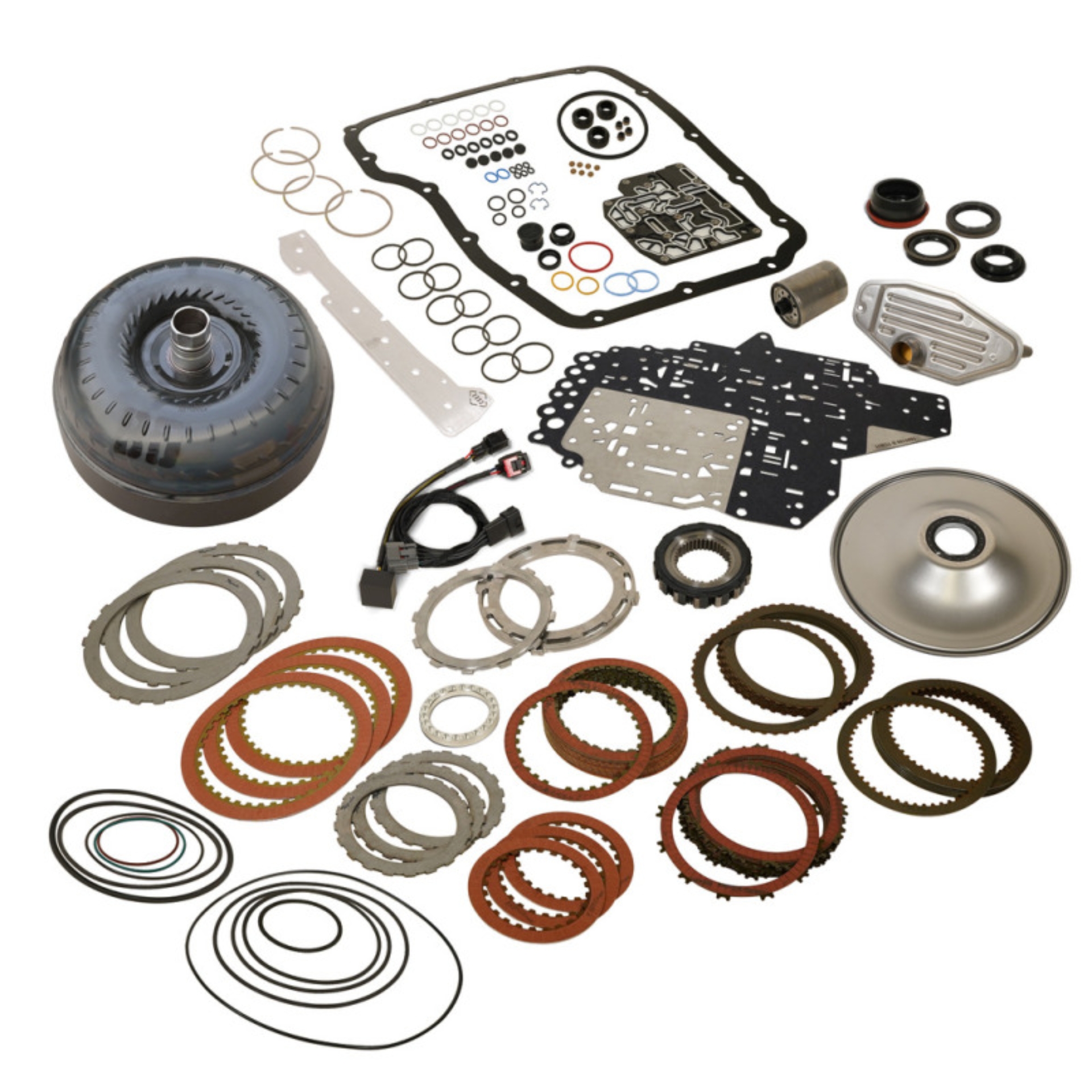

BD Diesel 07.5-18 Dodge 68RFE Stage 4 Build-it w/Torque Converter
BD Build-it Dodge 68RFE kit 2007.5-18 Stage 4 w/Torque Converter
Seal Kit - 2-4C, Input Drum, Solenoid Pack, Internal, External
Heavy duty accumulator plate to prevent accumulator blowout
Reduced overall weight by 12lbs compared to competitors
Billet OD/Reverse Selector Plate, OD/UD Reaction Plate
Qty 7: Reverse Clutch Friction, Reverse Clutch Steel
New sprag components ensure long term durability
Gasket Kit - Oil Cooler, Oil Pan, Solenoid Pack
Stage 4 Performance Build-It Transmission Kit
Thrust bearings - not plastic thrust washers
Qty 15: OD Clutch Friction, OD Clutch Steel
Enhanced Stall - Street/Towing applications
BUILD-IT STG 4 W/TC DODGE 2007-18 68RFE
Taller cover can be rebuilt more often
HD springs absorb shock of engagement
Cast stator designs maximizes torque
Automatic Transmission Overhaul Kit
Eliminates warpage from clutch heat
Billet 4C Spring Retaining Ring
Upgraded One Way Clutch/Sprag
Engineered tighter tolerances
Stamp forged 1-piece cover
Qty 2: Check Balls 1/4in
Increased clutch count
Trapezoid teeth design
Filter - Pan, Spin On
BUILD-IT STG 4 W/TC
O-Ring - pump Cover
TORQUE CONVERTER:
BUILD-IT KIT:
A/TRebuildKt
Pump Cover
