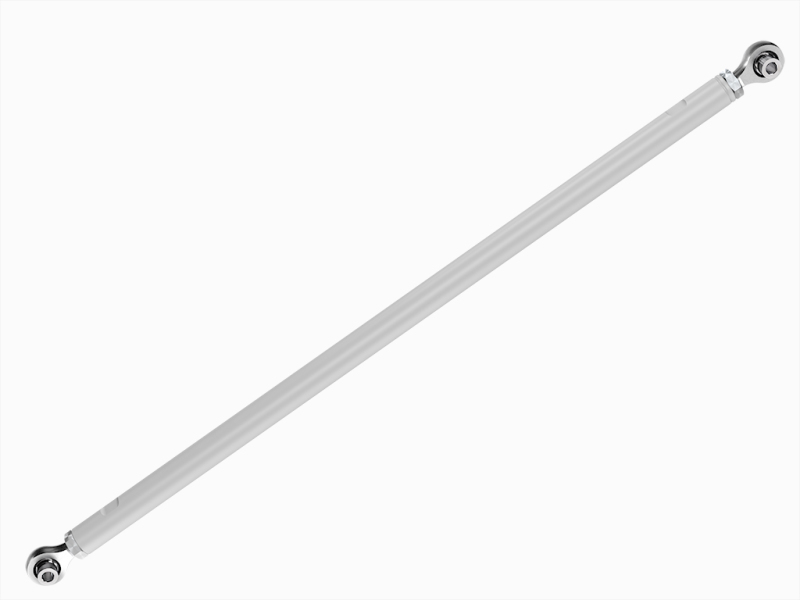

The ICON Billet Rear Adjustable Track Bar helps center the axle of your lifted 2022-2026 Toyota Tundra, 2023-2026 Toyota Sequoia, 2024-2026 Toyota Tacoma, 2024-2026 Toyota Land Cruiser 250 Series, 2025-2026 Toyota 4Runner, or 2024-2026 Lexus GX550. Threaded rod ends allow easy “on-vehicle” fine adjustment of track bar length without requiring removal or disassembly of the track bar. Simply loosen the jam nuts then rotate the bar, using the machined wrench flats, to adjust link length. This allows for easy correction of axle location and dialing in precise tracking whenever adjustments are made to ride height. Additionally, the use of FK Rod End bearings eliminates the rubber bushings found in the stock track bar, eliminating bind and deflection during aggressive driving and greatly improving rear end articulation and the vehicle's overall handling characteristics. This track bar is CNC machined from solid 6061 aluminum bar and anodized to match the look of ICON's billet upper and lower links for a high-end appearance besides high performance. Hit the trail with the confidence of knowing your suspension components are covered by ICON’s Limited Lifetime Warranty.
The ICON Billet Rear Adjustable Track Bar helps center the axle of your lifted 2022-UP Toyota Tundra while freeing up suspension articulation. Massive PTFE-lined FK Rod Ends help to yield the maximum travel and articulation. Use of right- and left-handed rod end threads allows easy “on-vehicle” fine adjustment of track bar length without requiring removal or disassembly of the track bar. Simply loosen the jam nuts then rotate the bar, using the machined wrench flats, to adjust link length. This allows for easy correction of axle location and dialing in precise tracking whenever adjustments are made to ride height. The track bar is CNC machined from solid 6061 aluminum bar, and anodized to match the look of ICON's billet upper and lower links. Hit the trail with the confidence of knowing your suspension components are covered by ICON’s Limited Lifetime Warranty.
The ICON Adjustable Track Bar use rod ends to allow easy “on-vehicle” adjustment of track bar length without removal or disassembly of the track bar. This allows for easy correction of axle location when adjustments are made to ride height.
APPLICATION NOTE #310: Compatible with 0-2” of rear lift over stock on rear coil equipped Tundras or 0-4" of rear lift over stock on rear air equipped Tundras
APPLICATION NOTE #311: Compatible with 0-4" of rear lift over stock on non-TRD Sequoia or 0-2" of rear lift on TRD Sequoia
APPLICATION NOTE #313: Compatible with 0-3” of rear lift over stock on Land Cruiser 250 Series, 4Runner, and GX550
TECH NOTE: Compatible with 0-4" of rear lift over stock on rear air equipped Tundras
APPLICATION NOTE #164: Will not fit Tacoma submodels equipped with rear leaf springs
Heavy duty PTFE-lined FK Rod Ends offer minimal deflection and maximum articulation
APPLICATION NOTE #312: Compatible with 0-2” of rear lift over stock on Tacomas
22-26 TUNDRA/23-26 SEQUOIA/24-26 TACO/LC250/GX550/25-26 T4R BLT ADJ TRACK BAR
Satin anodized finish to match appearance of ICON rear upper and lower links
Helps to free up bind during rear suspension travel and articulation
2022-UP TOYOTA TUNDRA BILLET REAR ADJUSTABLE TRACK BAR KIT
ICON 2022+ Toyota Tundra Billet Rear Adj Track Bar Kit
On-vehicle adjustable for precise track alignment
Covered by ICON’s Limited Lifetime Warranty
22-UP TUNDRA BILLET REAR ADJ TRACK BAR KIT
22-UP TUNDRA REAR TRACK BAR KIT
CNC machined 6061 aluminum bar
Vehicle specific design
Suspension Track Bar
REAR TRACK BAR KIT
54202
