The 4-link bracket kit is an essential component of the ICON 2017-2022 Ford Super Duty 4-Link Conversion System. This 4-Link system not only gives your Ford Super Duty an aggressive look, it enhances the articulation of the front suspension by eliminating bushing bind and improves handling of the truck by maintaining consistent caster angles through the entirety of the front suspension travel range. The large, deflective radius arm bushings are replaced with competition grade, PTFE lined spherical bearings in each link. This harder surface minimizes deflection to further increase the overall handling characteristics for maximum predictability and suspension responsiveness. Additionally, the ICON double adjusters in the lower links allows tuning of caster angle while the links are installed on the vehicle, easing the front-end alignment process.
This 4-Link System not only gives your truck an aggressive look, it enhances the articulation of the front suspension and improves handling of the truck by eliminating the large radius arm bushing and replacing it with competition grade spherical bearings in each link. This harder surface minimizes deflection to increase the over all handling characteristics of the truck. The lower links in the system include ICON’s patented pinch bolt housing which allows for on truck adjustability.
The ICON 4-Link system not only gives your Ford Super Duty an aggressive look, it enhances the articulation and improves handling of the truck by maintaining consistent caster angles and eliminating bushing bind in the stock radius arms.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
4-Link system maintains consistent caster angles through suspension travel for superior handling characteristics
TECH NOTE: Requires ICON 4-Link Arms Part numbers 164501 & 164502 to complete installation.
Allows on-vehicle caster adjustment via ICON double adjusters in lower links
Requires ICON 4-Link Arms Part # 164501 & 164502 to complete installation.
Brackets are fabricated from CNC laser cut and brake-formed steel plate
Fabricated components covered under ICON's Limited Lifetime Warranty
100% Bolt-on system - no cutting or welding necessary for install
TECH NOTE: Only fits 2017-2022 Ford Super Duty 4WD models
Improves front end articulation and overall drivability
Corrosion resistant semi-gloss black powder coat finish

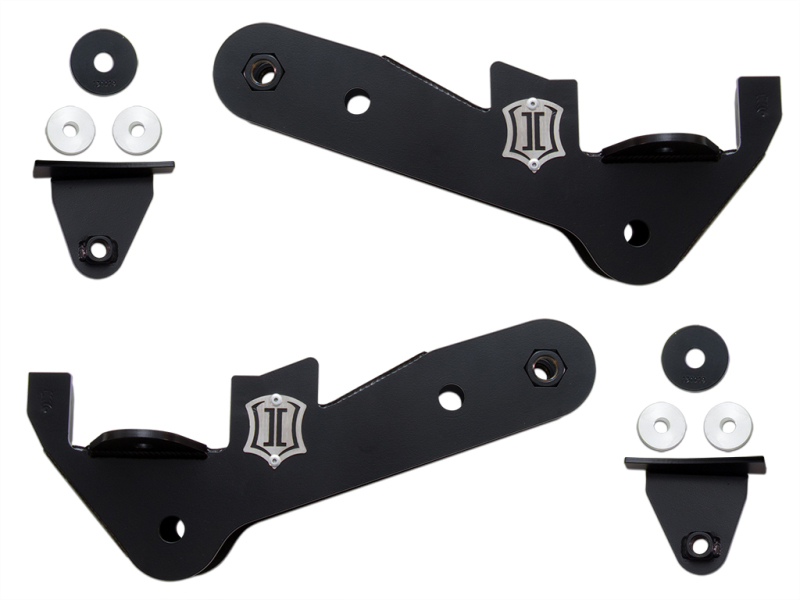

ICON 2017+ Ford Super Duty 4 Link Frame Bracket Kit
2017-UP FORD SUPER DUTY 4 LINK FRAME BRACKET KIT
TECH NOTE: Compatible with 2.5"-7" of front lift
Suspension Control Arm Link Mount Kit
17-UP FSD 4 LINK FRAME BRACKET KIT
17-22 FSD 4 LINK FRAME BRACKET KIT
17-UP FSD 4 LINK BRACKET KIT
4-LINK BRACKET KIT
4 LINK MOUNT KIT
164504
