Fire Sleeve solves the problem of heat and abrasions damaging fuel, transmission and brake lines and is a fireproof solution. Constructed from a high temperature resistant braided glass material, woven into a sleeve and heavily coated with 100% iron oxide silicone rubber, Fire Sleeve thermal insulator sleeve provides the ultimate in heat insulation and protection from direct heat up to 500°F. Includes a 16-inch length of black Fire Tape, an adhesive-free, self-adhering tape, to finish off ends of Fire Sleeve or when joining two Fire Sleeves together while presenting a clean and professional look. Insulates wiring, hoses, oil / brakes / transmission lines & more Use for bundling & protecting hoses, electrical wiring, etc. Withstands 2000°F of intermittent heat Includes 16 inches of black Fire Tape Size: 1 inch x 36 inches Fitment Chart AN Conversion Chart AN Size Metal Tube O.D. Thread Size 2 1/8 in. 5/16 24 SAE 3 3/16 in. 3/8 24 SAE 4 1/4 in. 7/16 20 SAE 5 5/16 in. 3/8 18 SAE 6 3/8 in. 9/16 18 SAE 8 1/2 in. 3/4 16 SAE 10 5/8 in. 7/8 14 SAE 12 3/4 in. 1-1/16 12 SAE 16 1 in. 1-5/16 12 SAE 20 1-1/4 in. 1-5/8 12 SAE 24 1-1/2 in. 1-7/8 12 SAE 28 1-3/4 in. 2-1/4 12 SAE 32 2 in. 2-1/2 12 SAE Fire Sleeve Application Chart Part# Name Line Size* 10470 3/8 in. Fire Sleeve 3AN4AN6AN** 10472 5/8 in. Fire Sleeve 6AN8AN 10474 1 in. Fire Sleeve 10AN12AN16AN**5/8 in. Heater Hose3/4 in. Heater Hose *Braided Kevlar line was used in testing. You may notice a slight difference in size if you have Braided Stainless Steel lines. **Tight fit: If you have fittings on your line, you may need to order one size up. You can achieve between 1/16 in. and 1/8 in. stretch out of our material. This may help on installs with fittings already on the lines.
Fire Sleeve solves the problem of heat and abrasions damaging fuel, transmission and brake lines and is a fireproof solution. Constructed from a high temperature resistant braided glass material, woven into a sleeve and heavily coated with 100% iron oxide silicone rubber, Fire Sleeve thermal insulator sleeve provides the ultimate in heat insulation and protection from direct heat up to 500F. Includes a 16-inch length of black Fire Tape, an adhesive-free, self-adhering tape, to finish off ends of Fire Sleeve or when joining two Fire Sleeves together while presenting a clean and professional look. Insulates wiring, hoses, oil / brakes / transmission lines & more Use for bundling & protecting hoses, electrical wiring, etc. Withstands 2000F of intermittent heat Includes 16 inches of black Fire Tape Size: 1 inch x 36 inches
One 36 inch length of Fire Sleeve with a 1 inch inside diameter and one 1 inch by 3 foot roll of silicone tape.
010474; fire; sleeve; tape; kit; silicone; rubber; wire; tube; hose; heat; protection; insulation
Withstands 500 Degrees F Continuous/2000 Degrees F Intermittent Heat
Use For Bundling And Protecting Hoses/Electrical Wiring etc.
Insulates Wiring/Hoses/Oil/Brake/Transmission Lines And More
Burn Protection During Under Hood Repairs And Maintenance
Fire Sleeve/Tape Kit™; 1 in. Inner Diameter x 36 in.;
DEI Fire Sleeve and Tape Kit 1in I.D. x 3ft

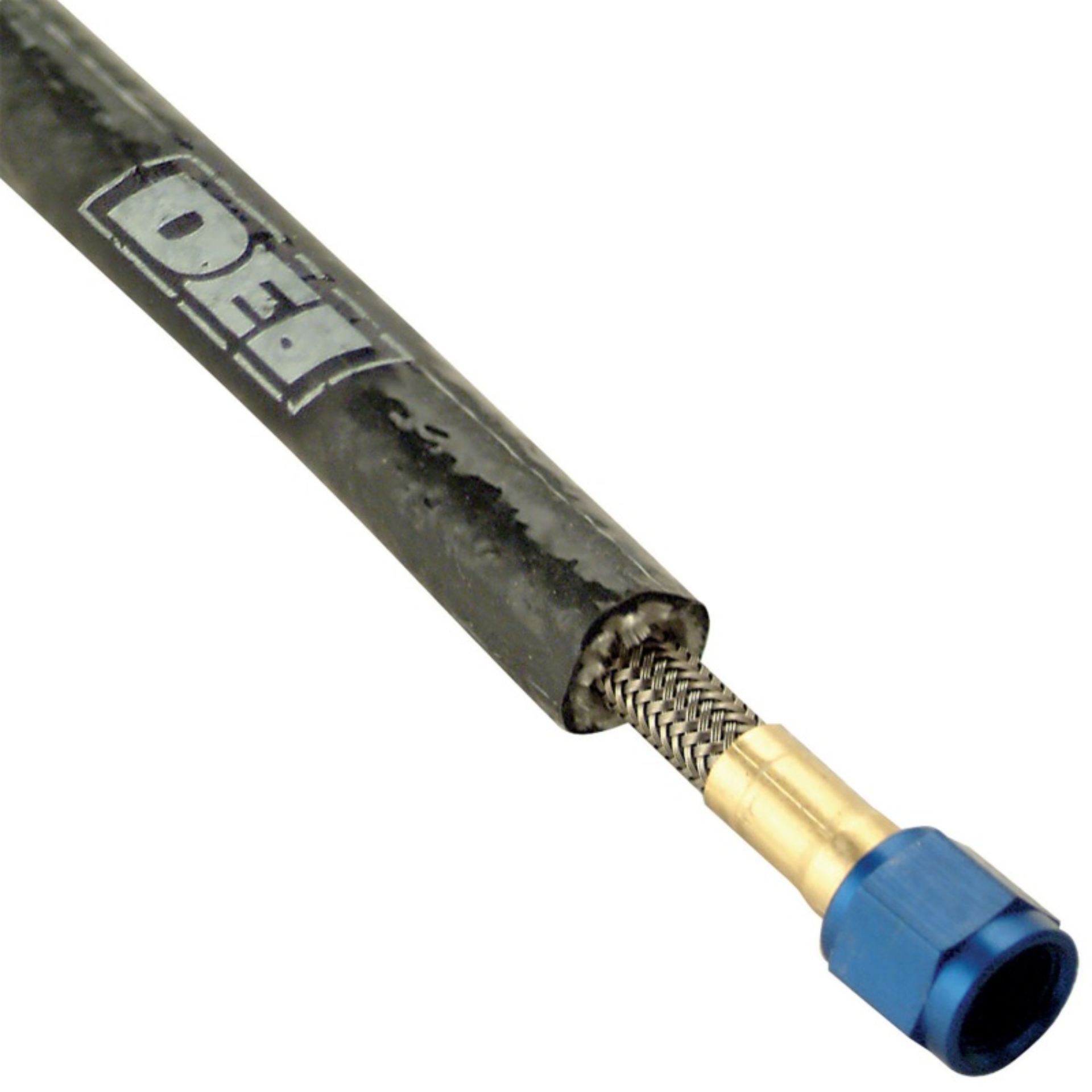

Fire Sleeve(TM) & Tape Kit - 1" ID x 36"
Includes 16 In. Length Of Fire Tape
1 in. x 3 ft Length Of Fire Sleeve
Fire Sleeve & Tape Kit 1in x 36in
Fire Sleeve & Tape Kit 1 IDx36
Fire Sleeve/Tape Kit™
INSULATOR SLEEVE 1in.
Heat Shrink Sleeve
Heat Shrink Tubing
Universal
