The PRO-TRUCK-LIFT STAGE 2 System shares the same rear components (lift springs, sport shocks, air bag delete) as our STAGE 1 system with an upgrade in adjustability up front. The front 2.0 coilovers were developed utilizing our extended-travel mono tube design and variable force valving that delivers control during on-road transit and compliance for maximum traction on the trails.
Front Adjustable Threaded Spring Perch to Accommodate Increased Loads and Maximum Clearance. ERO Off-Road Race Spring Equipped and Compatible.
Front out of the box height is set to be level with OE rear spring. Preload will need to be added to be level with Eibach rear spring.
Anodized 6061-T6 Billet Aluminum Coilover Mounts, 46mm Piston, Monotube Design with Nitrogen Filled Variable Force Valving.
Individually Dyno Tested for Matched Performance and Reliability. Heavy Duty Bushing System also Cycle Tested.
Exact lift heights may vary depending on exact packages and weight distributions of vehicle
Do not exceed the max called out lift height, poor ride quality will result.
Stage 2 system featuring Pro-Truck-Coilover 2.0's + Rear Sport Shocks
Excludes Vehicles equipped with Adaptive Variable Suspension (AVS)

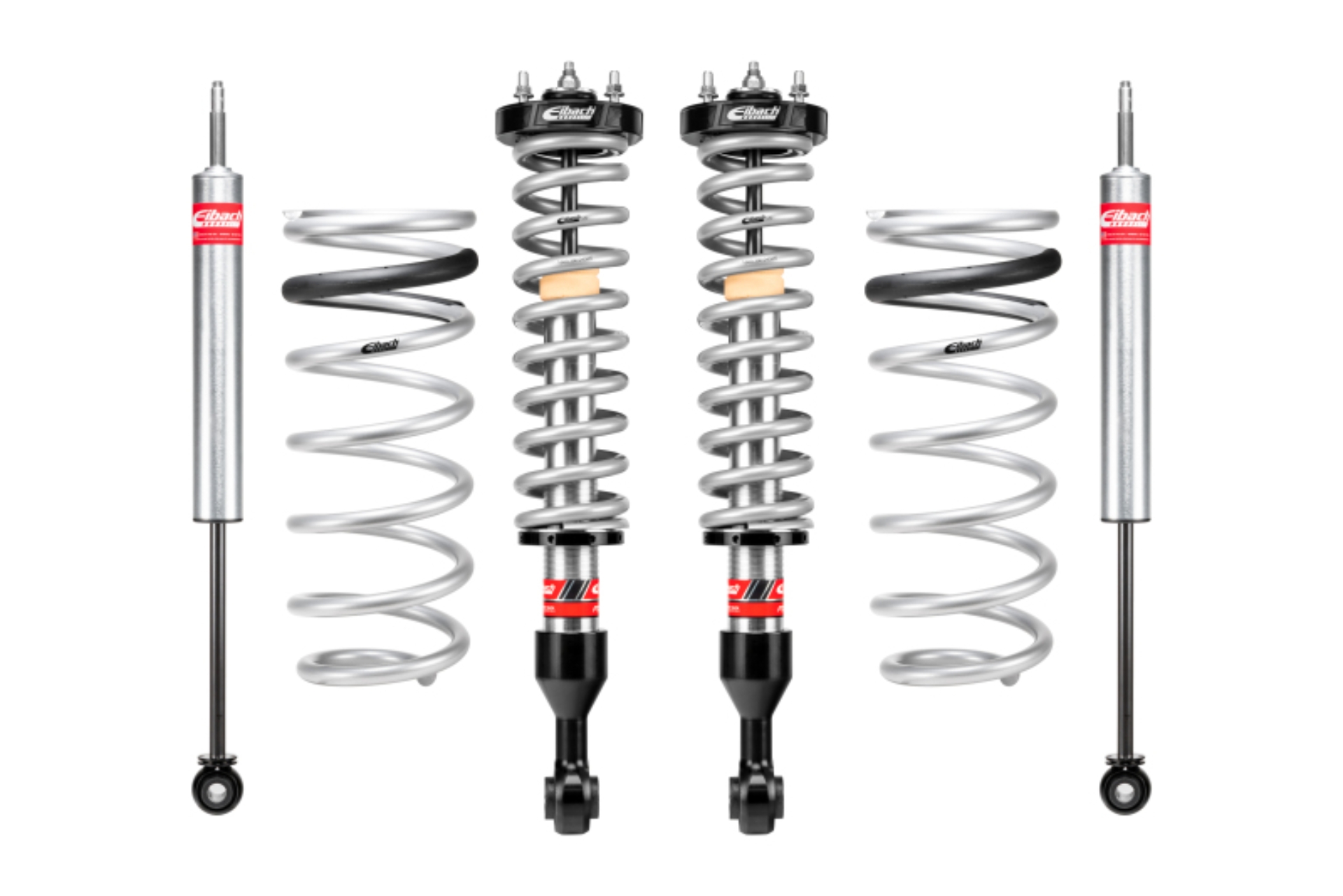

Eibach 24-25 Lexus GX550 Premium Pro-Truck Lift Kit - Stage 2
Engineered, Tested and Manufactured by Eibach in the U.S.A.
Pair of Front Coilovers + Rear Shocks
Coilover Spring and Shock Assembly
Stage 2 Lift Kit
