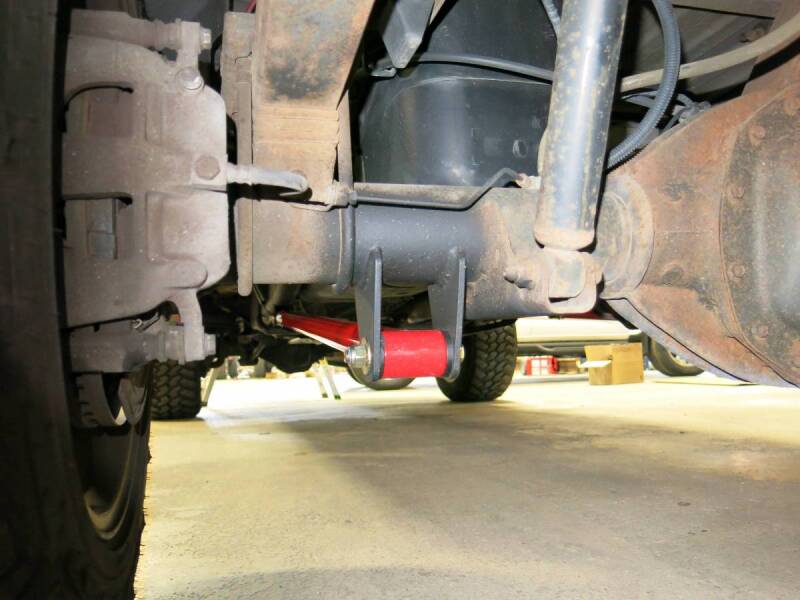

Traction bars are a necessary upgrade when increasing the horsepower on your diesel truck to prevent the axle from twisting which can lead to broken u-joints, driveshafts, and even twisted axle housings. Our traction bar brackets weld on to the bottom of the axle tube and weld to the frame on the front end. We use a high quality RockJock rebuild-able and grease-able Johnny Joint heim connection at the frame to allow for adjustment of torsion on the axle or if you raise/lower the rear of your truck. At the axle connection we use a heavy duty Poly Urethane Bushing for decreased noise and vibration which is common complaint if a solid heim is used on both ends. Grade 8 hardware connects the bars to the mounts on the frame and axle. We complete our traction bar kit with our professional in house powder coat process in your color choice and comes standard with a epoxy Primer base coat before the final color which increases corrosion resistance by more than ten times compared to just your standard powder single coat application.
If you have extended cab long bed, or crew cab long bed truck use part number WCF100855. If you have a Lift Kit and your REAR lift Block is taller than 5" or your total lift height is 6" or greater, use part number WCF100855. If your truck is on a big lift, please measure from your axle mounting point to your frame mounting point to ensure the bar length will work properly for your application before placing your order.
For 1999-2010 Ford and 1994-2024 Dodge HD Leaf Spring Rear Suspension Trucks. Not compatible with 2014-2024 Ram 2500 trucks equipped with rear coil springs / linked suspension setups.
This kit includes 60" long bars for Regular Cab Long Bed, Extended Cab Short Bed and Crew Cab Short Bed Models
Wehrli Custom Fab Traction Bar Kit, 60 in., 99-10 Ford / 94-24 RAM, Univ RCLB/CCSB/ECSB, Candy Teal
Durable Custom Powder Coat Finish with Epoxy Primer Base Coat for Superior Corrosion Resistance
Wehrli 99-10 Ford / 94-22 RAM Univ RCLB/CCSB/ECSB 60in. Traction Bar Kit - Candy Teal
Traction Bar KT, 60 in., 99-10 Ford/94-24 RAM, Univ RCLB/CCSB/ECSB, Candy Teal
For Regular Cab Long Bed, Extended Cab Short Bed and Crew Cab Short Bed Models
LIFETIME WARRANTY against bending or breaking (to original purchaser)
2011-2024 Ford F-250 and F-350 Please see WCF100388 and WCF100399
Traction Bars 60" Weld On Univ Candy Tea

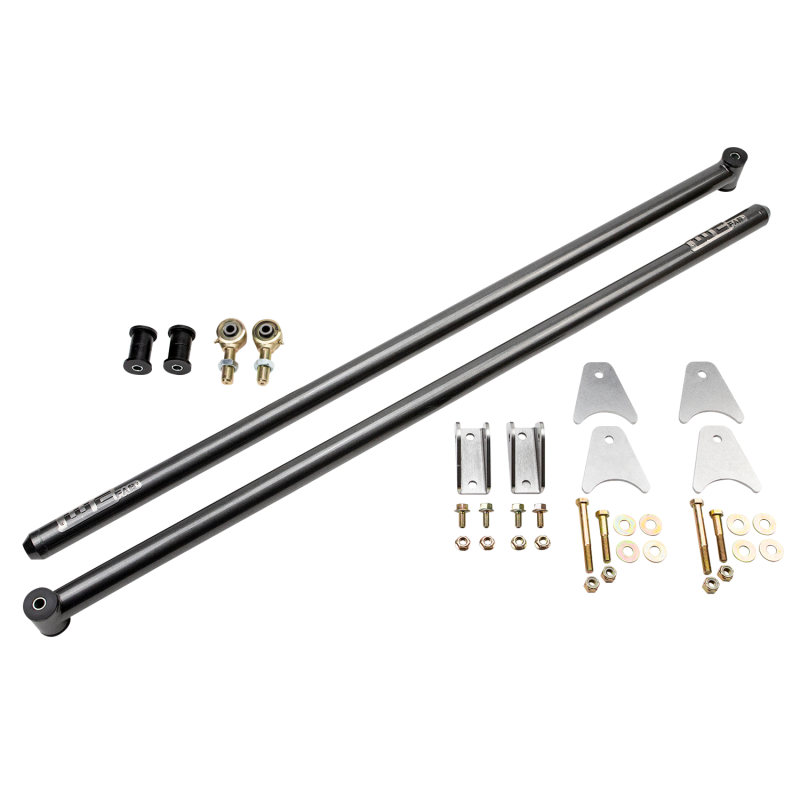

Axle and Frame side weld on mounts
Suspension Traction Bar
RockJock Johnny Joints
TracBars 60 Weld CT
60" Heavy Duty Bars
Grade 8 Hardware
Poly Bushings
Made in USA
