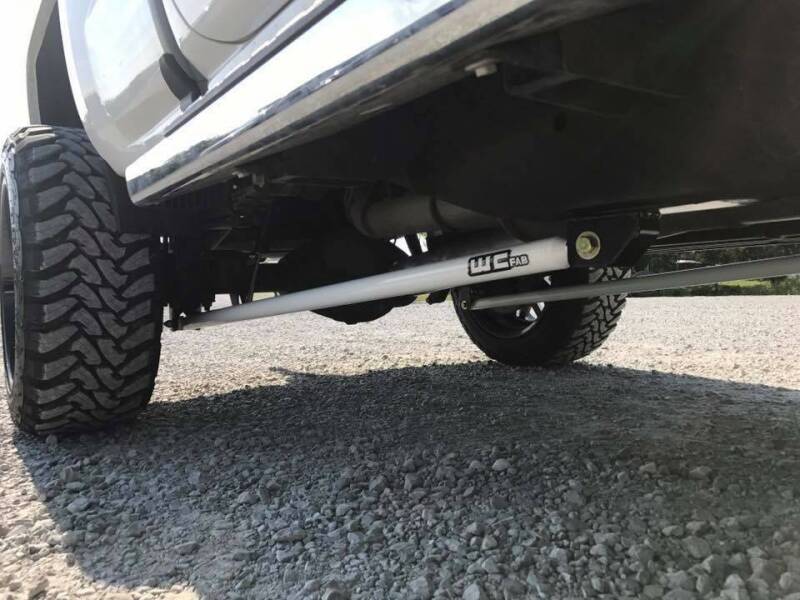

Built in house at WCFab carrying a LIFETIME WARRANTY against bending or breaking (to original purchaser). Traction bars are a necessary upgrade when increasing the horsepower on your diesel truck to prevent the axle from twisting which can lead to broken u-joints, driveshafts, and even twisted axle housings. Our traction bar brackets bolt on to the bottom of the axle tube via the axle u-bolts and weld to the frame on the front end. We use a high quality Currie Enterprise rebuild-able and grease-able "Johnny Joint" heim connection at the frame to allow for adjustment of torsion on the axle or if you raise/lower the rear of your truck. At the axle connection we use a heavy duty Poly Urethane Bushing for decreased noise and vibration which is common complaint if a solid heim is used on both ends. Grade 8 hardware connects the bars to the mounts on the frame and axle. We complete our traction bar kit with our professional in house powder coat process in your color choice and comes standard with a ZINC Primer base coat before the final color which increases corrosion resistance by more than ten times compared to just your standard powder single coat application.
If you have a regular cab long bed, extended cab short bed, or crew cab short bed truck, use part number WCF100851. If you have a Lift Kit and your U-Bolts face up instead of down like a factory, use Traction Bar Kit WCF100855. If your truck is on a big lift, please measure from your axle mounting point to your frame mounting point to ensure the bar length will work properly for your application before placing your order.
Durable Custom Powder Coat Finish with Epoxy Primer Base Coat for Superior Corrosion Resistance
Wehrli Custom Fab Traction Bar Kit, 68 in., 11-19 Chevy & GMC Duramax ECLB/CCLB, Gloss White
This kit includes 68" long bars for Extended Cab Long Bed and Crew Cab Long Bed Models
Wehrli 11-19 Chevy & GMC Duramax ECLB/CCLB 68in. Traction Bar Kit - Gloss White
Traction Bar Kit, 68 in., 11-19 Chevy & GMC Duramax ECLB/CCLB, Gloss White
LIFETIME WARRANTY against bending or breaking (to original purchaser)
For Extended Cab Long Bed and Crew Cab Long Bed Models
Traction Bars 68in. 11-19 GM HD Gl White
This kit is for 2011-2019 GM HD Trucks
Frame side weld on mounts
Axle side bolt on mounts
Suspension Traction Bar
RockJock Johnny Joints
68" Heavy Duty Bars
TracBrs 68 11-19 GW
Grade 8 Hardware
Poly Bushings
Made in USA
