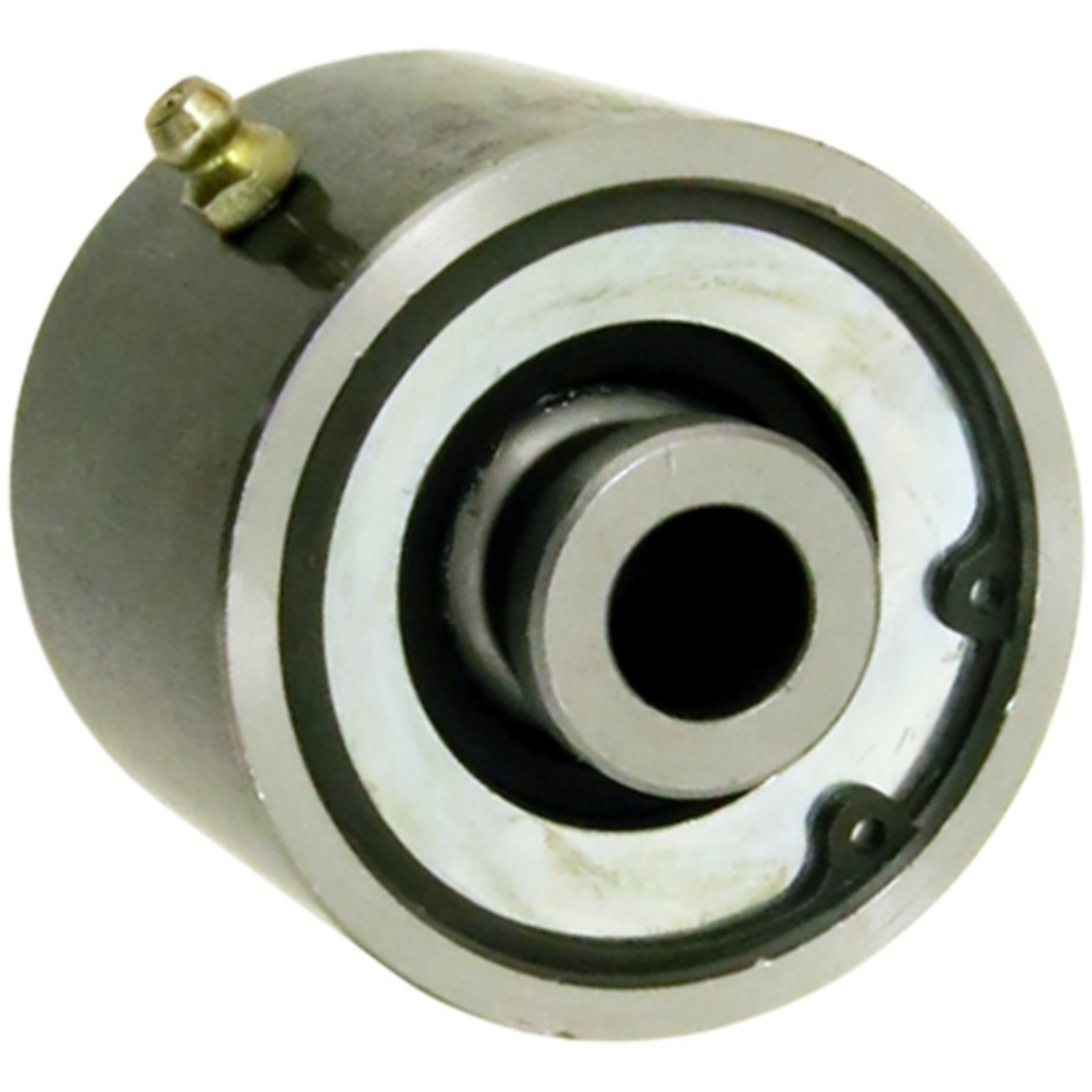

RockJock ROK Johnny Joints Suspension Arms & Components - CE-9110NP-14

RockJocks narrow style weld-on Johnny Joints for fabricators and suspension system builders offer up to 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. The narrow style outer shell is weldable .180 in. wall machined DOM tubing that is fitted with a zerk fitting for greasing. This specific joint is a 2 1/2 in. o.d. and features a 2.365 in. mounting width and a .5625 in. thru bolt hole.

RockJock Johnny Joint Rod End 2 1/2in Narrow Weld-On 2.365in X .562in Ball Ext. Greased

Johnny Joint® Rod End; 2.5 Narrow Rod End; No Bolt;

Johnny Joint® Rod End

Johnny Joint®

SuspLinkArmJt
