RockJock ROK Johnny Joints Suspension Arms & Components - CE-9113N

RockJocks narrow forged Johnny Joints for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint is a 2 1/2 in. diameter, fitted with a zerk fitting for greasing, 2 1/4 in. of 1 in.-14 right hand threads on the shank, and a 2.625 in. mounting width ball with a .562 in. thru bolt hole. Finished in gold zinc plating.

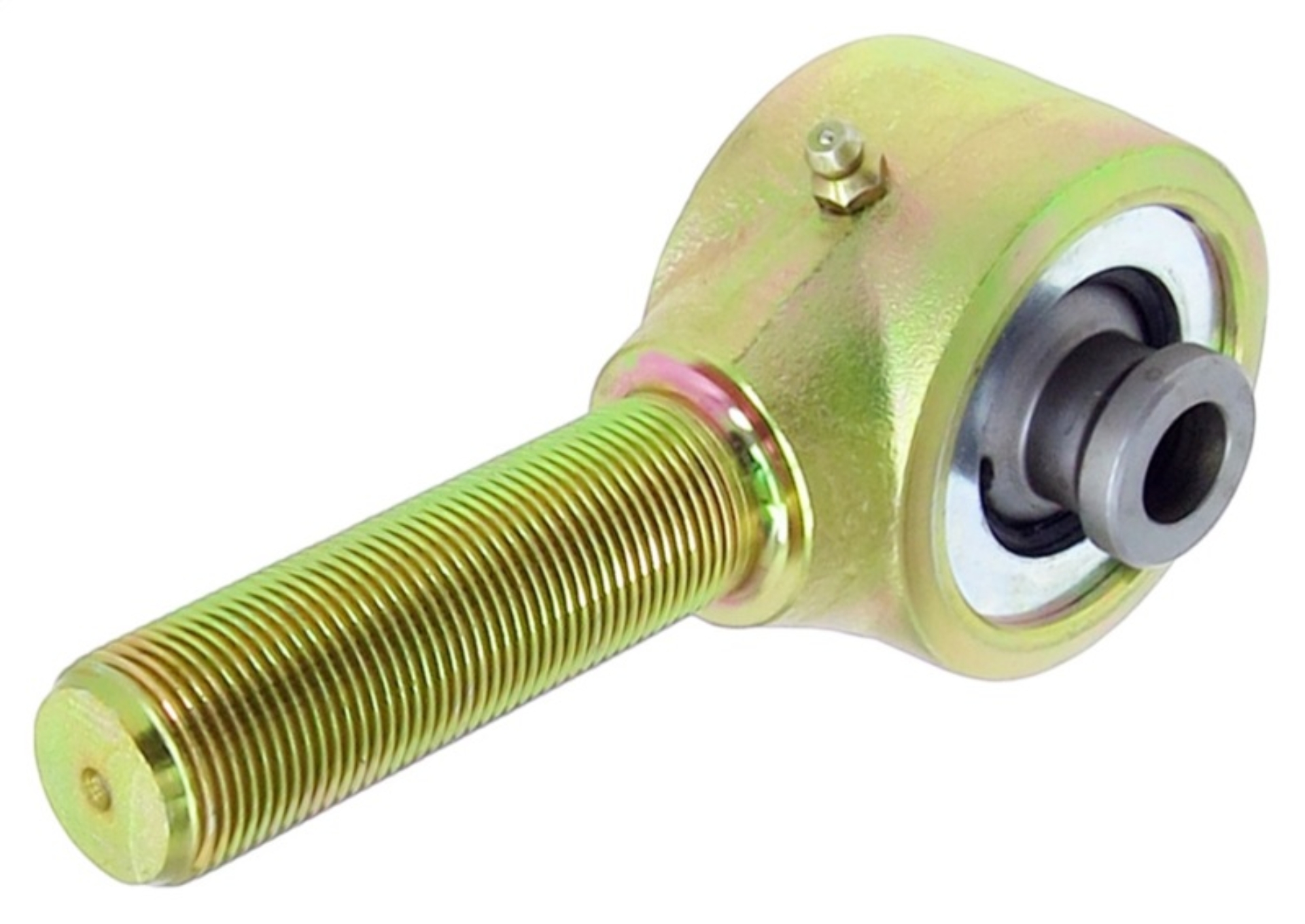

RockJock Johnny Joint Rod End 2 1/2in Forged 2.625in X .562in Ball 1in-14 RH Thread Ext. Greased

Johnny Joint® Rod End; 2.5 in.; w/1 in. RH Thread/9/16 in. X 2.625 in. Ball;

Narrow Forged Johnny Joint®

Johnny Joint® Rod End

SuspLinkArmJt
