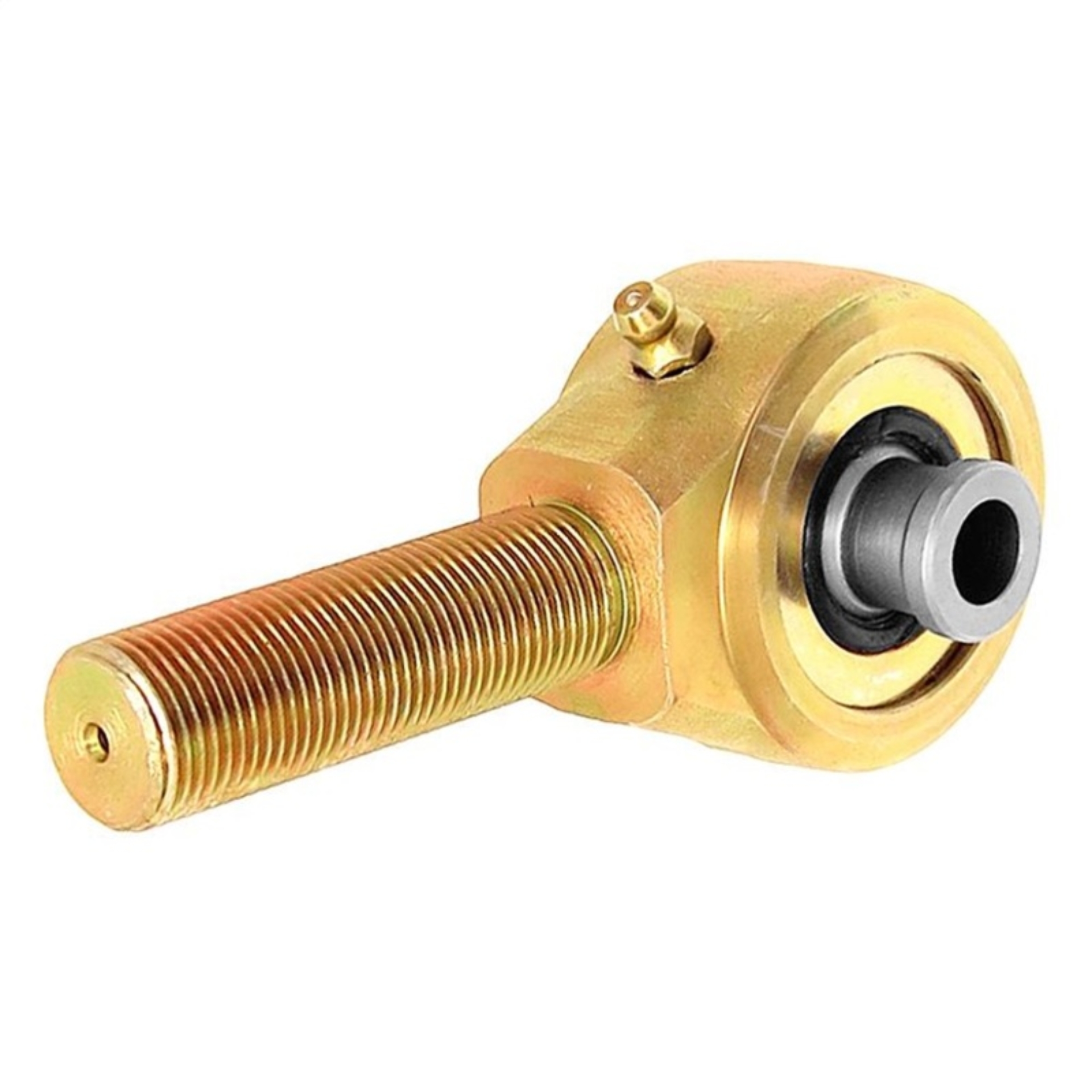

RockJock Johnny Joint 2in Narrow Rod End (3/4in RH Thread 1.750in x .641in Ball)

RockJocks narrow forged Johnny Joints for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint features a narrow 2 in. diameter joint body, fitted with a zerk fitting for greasing, 2.3 in. of 3/4 in.-16 right hand threads on the shank, and a 1.750 in. mounting width ball with a .641 thru bolt hole. Finished in gold zinc plating.

Johnny Joint® Rod End; 2 in.; Narrow Forged; 1.750 in. X .641 in. Ball; 3/4 in.-16 RH Threads; Externally Greased;

RockJock Johnny Joint 2in Narrow Rod End (3/4in RH Thread 1.750in x .641in Ball)

Johnny Joint® Rod End

SuspLinkArmJt
