RockJock ROK Johnny Joints Suspension Arms & Components - RJ-330401-101

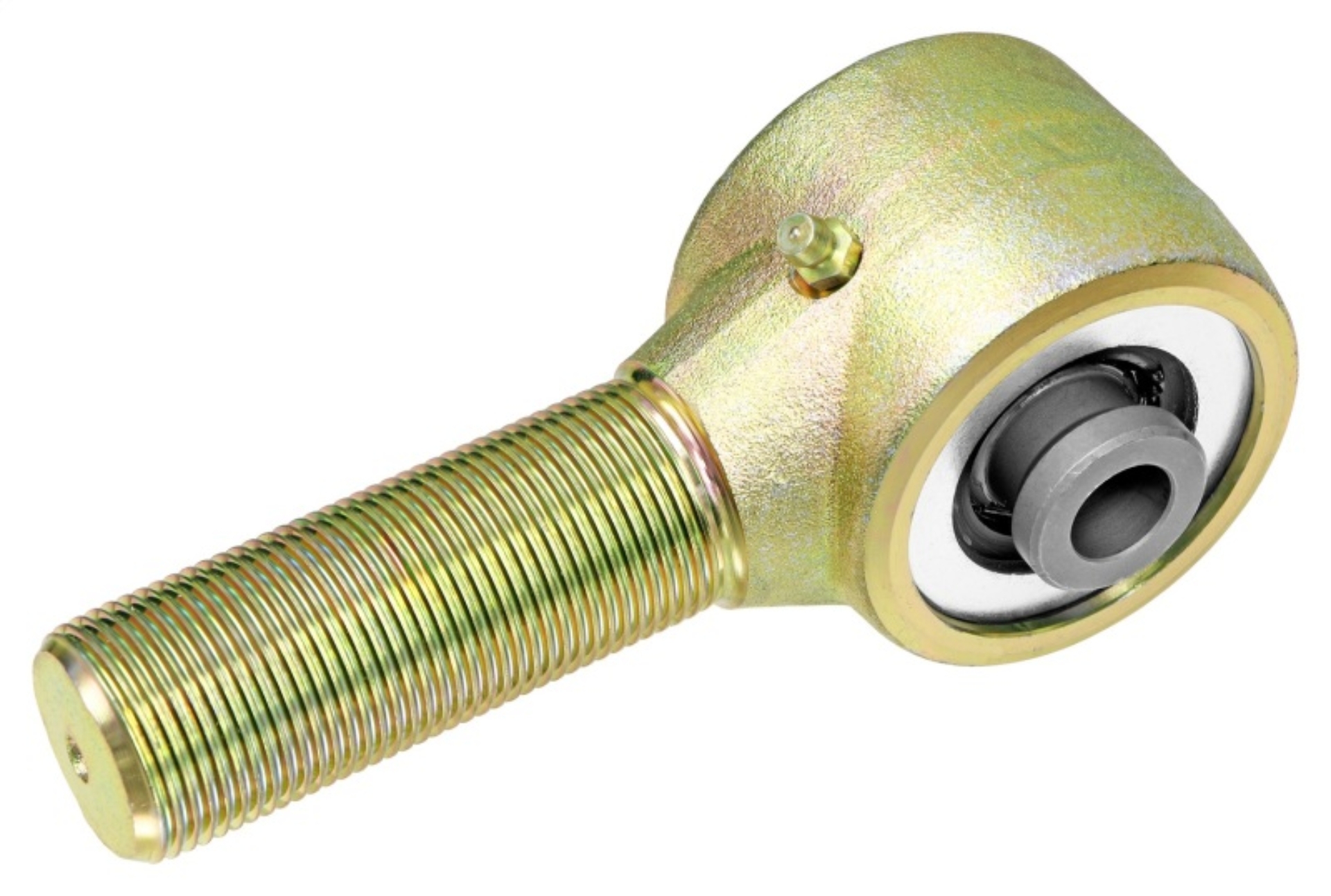

RockJocks forged Johnny Joints for fabricators and suspension system builders offer 30 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint is designed to fit the frame side of the 2021 and up Broncos rear control arms and feature a 2 1/2 in. diameter joint body, fitted with a zerk fitting for greasing, 2.3 in. of 1 1/4 in.-12 left hand threads on the shank, and a 74mm mounting width ball with a 16mm thru bolt hole. Finished in gold zinc plating.

RockJock 2021+ Bronco Rear Frame Johnny Joint 2 1/2in Forged 1 1/4in-12 LH Threads 74mm x 16mm Ball

Johnny Joint® Rod End; 2.5 in.; Forged; 1.25 in. 12 LH Threads; 74 mm x 16 mm Ball;

Johnny Joint® Rod End

SuspLinkArmJt
