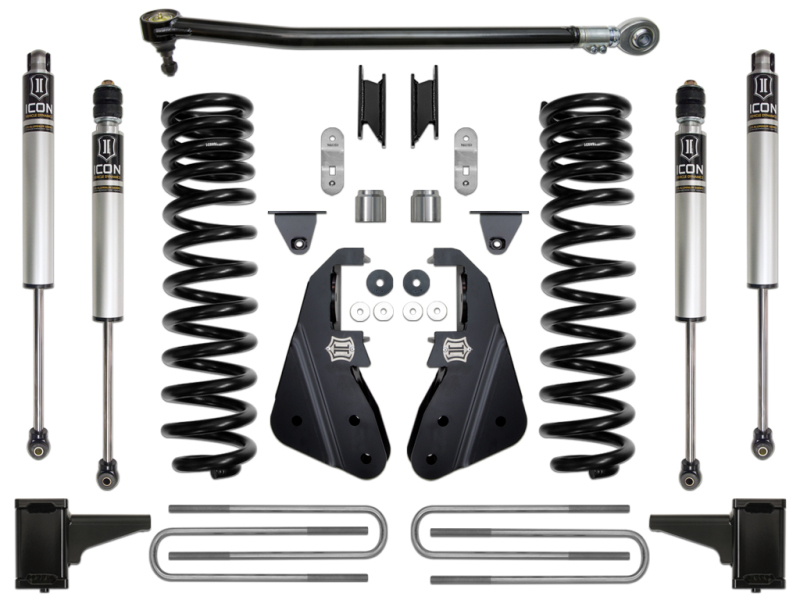

This ICON Vehicle Dynamics 4.5” suspension system is a great way to lift your 4WD 2017-2019 Ford F-250/F-350 Super Duty while drastically improving ride quality and performance. This entry level system is perfect for on-road and towing use, as well as mild off-road use like job site duty and washboard gravel roads. ICON's 4.5" Stage 1 System is comprised of dual rate coil springs, radius arm drop brackets, adjustable track bar, 5" block kit, and ICON 2.0 Aluminum Series front and rear shocks. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.
This ICON Vehicle Dynamics 4.5” suspension system is a great way to lift your 4WD 2017-2019 Ford F250/350 Super Duty while drastically improving ride quality and performance. This entry level system is perfect for on-road and towing use, as well as mild off-road use like job site duty and washboard gravel roads. ICON's 4.5" Stage 1 System is comprised of dual rate coil springs, radius arm drop brackets, adjustable track bar, 5" block kit, and ICON 2.0 Aluminum Series front and rear shocks. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.
TECH NOTE: Brake line kit (Part # 61110) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)
APPLICATION NOTE #31: ‘08 - Current Superduty Models With Gas Engines May Need Exhaust Modified To Clear Front Driveshaft
Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain
APPLICATION NOTE #8: THIS SYSTEM MAY REQUIRE A CARRIER BEARING DROP BRACKET KIT (33700)
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
Corrosion resistant anodized shock body with 5/8" shaft (2.0 Aluminum Series shocks)
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset
ICON shocks feature vehicle specific tune for superior performance and ride quality
Radius arm drop brackets correct geometry and caster for optimal alignment specs
FK Rod End bearings provide extended longevity and minimal deflection
2017-2019 FORD F-250/F-350 4.5" LIFT STAGE 1 SUSPENSION SYSTEM
APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY
ICON 2017+ Ford F-250/F-350 4.5in Stage 1 Suspension System
Approximately 50% increased front wheel travel over stock
Lifetime guarantee against coil spring breakage or sag
17-19 FORD F-250/F-350 4.5" STAGE 1 SUSPENSION SYSTEM
Fits 2017-2019 F-250 / F-350 4WD applications
Shocks are fully rebuildable and revalvable
17-19 FORD F-250/F-350 4.5 STG 1 SUSP
OEM Wheels & Tires Fitment: Yes
Ships in multiple boxes
Suspension Lift Kit
SUSPENSION SYSTEM
