These upper links are an essential component of the ICON 2005-2022 Ford Super Duty 4-Link Conversion System. This 4-Link system not only gives your Ford Super Duty an aggressive look, it enhances the articulation of the front suspension by eliminating bushing bind and improves handling of the truck by maintaining consistent caster angles through the entirety of the front suspension travel range. The large, deflective radius arm bushings are replaced with competition grade, PTFE lined spherical bearings in each link. This harder surface minimizes deflection to further increase the overall handling characteristics for maximum predictability and suspension responsiveness. Additionally, the ICON double adjusters in the lower links allows tuning of caster angle while the links are installed on the vehicle, easing the front-end alignment process.
This 4-Link System not only gives your truck an aggressive look, it enhances the articulation of the front suspension and improves handling of the truck by eliminating the large radius arm bushing and replacing it with competition grade spherical bearings in each link. This harder surface minimizes deflection to increase the over all handling characteristics of the truck. The lower links in the system include ICON’s patented pinch bolt housing which allows for on truck adjustability.
The ICON 4-Link system not only gives your Ford Super Duty an aggressive look, it enhances the articulation and improves handling of the truck by maintaining consistent caster angles and eliminating bushing bind in the stock radius arms.
TECH NOTE: Requires ICON 4-Link brackets depending on year range: part number 164500, 164503, or 164504, and ICON lower links, part number 164502, for complete installation.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Requires ICON 4-Link brackets, part # 164500, 164503, or 164504 and ICON lower links part # 164501 for complete installation.
4-Link system maintains consistent caster angles through suspension travel for superior handling characteristics
Upper links are constructed from CNC machined 2” x .188” wall DOM steel tubing
Allow on-vehicle caster adjustment via ICON double adjusters in lower links
Fabricated components covered under ICON's Limited Lifetime Warranty
TECH NOTE: Only fits 2005-2022 Ford Super Duty 4WD models
Corrosion resistant semi-gloss black powder coat finish

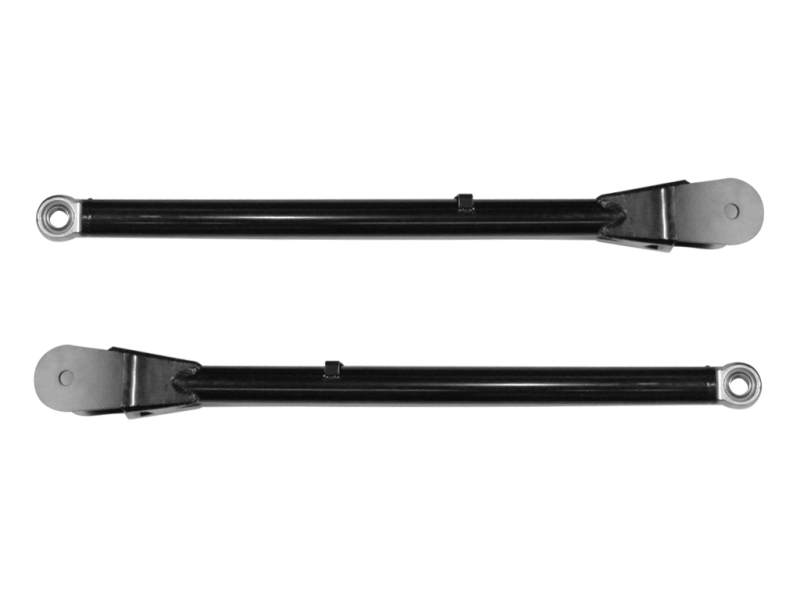

ICON 2005+ Ford Super Duty Rear Fixed Front Upper Links
Improves front end articulation and overall drivability
PTFE lined FK spherical bearings eliminate deflection
TECH NOTE: Compatible with 2.5"-7" of front lift
2005-UP FORD SUPER DUTY FRONT UPPER LINKS
05-UP FSD FRONT UPPER LINKS
05-22 FSD FRONT UPPER LINKS
Suspension Control Arm Kit
FSD FRONT UPPER LINKS
FSD UPPER LINKS
164501
