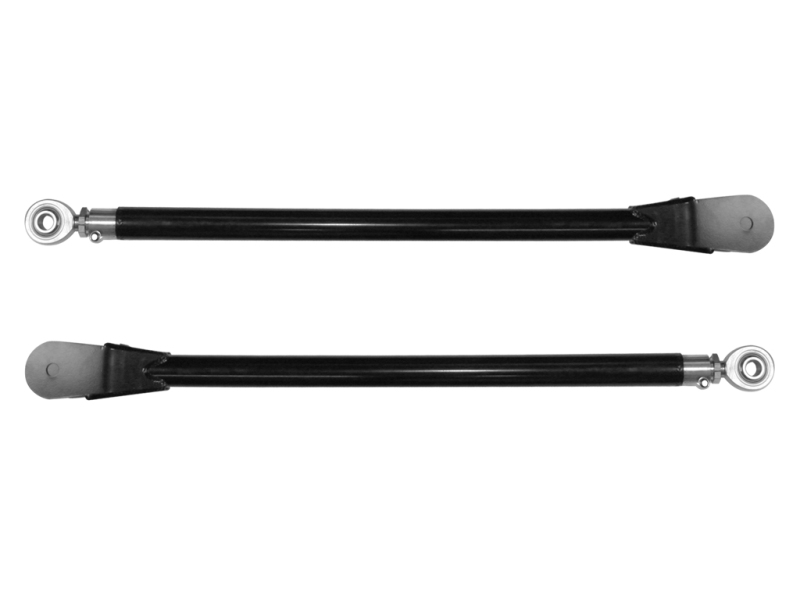

These lower links are an essential component of the ICON 2005-2026 Ford Super Duty 4-Link Conversion System. This 4-Link system not only gives your Ford Super Duty an aggressive look, it enhances the articulation of the front suspension by eliminating bushing bind and improves handling of the truck by maintaining consistent caster angles through the entirety of the front suspension travel range. The large, deflective radius arm bushings are replaced with competition grade, PTFE lined spherical bearings in each link. This harder surface minimizes deflection to further increase the overall handling characteristics for maximum predictability and suspension responsiveness. Additionally, the ICON double adjusters in the lower links allows tuning of caster angle while the links are installed on the vehicle, easing the front-end alignment process.
This 4-Link System not only gives your truck an aggressive look, it enhances the articulation of the front suspension and improves handling of the truck by eliminating the large radius arm bushing and replacing it with competition grade spherical bearings in each link. This harder surface minimizes deflection to increase the over all handling characteristics of the truck. The lower links in the system include ICON’s patented pinch bolt housing which allows for on truck adjustability.
The ICON 4-Link system not only gives your Ford Super Duty an aggressive look, it enhances the articulation and improves handling of the truck by maintaining consistent caster angles and eliminating bushing bind in the stock radius arms.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
APPLICATION NOTE #488: 2017-2022 models require ICON 4-Link brackets part number 164504 and ICON upper links part number 164501 for complete installation.
APPLICATION NOTE #486: 2005-2010 models require ICON 4-Link brackets part number 164500 and ICON upper links part number 164501 for complete installation.
APPLICATION NOTE #487: 2011-2016 models require ICON 4-Link brackets part number 164503 and ICON upper links part number 164501 for complete installation.
APPLICATION NOTE #489: 2023-2026 models require ICON 4-Link brackets part number 64053 and ICON upper links part number 64052 for complete installation.
Requires ICON 4-Link brackets, part # 164500, 164503, or 164504 and ICON upper links part # 164502 for complete installation.
4-Link system maintains consistent caster angles through suspension travel for superior handling characteristics
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
Lower links are constructed from CNC machined 2” x .188” wall DOM steel tubing
Allow on-vehicle caster adjustment via ICON double adjusters in lower links
Fabricated components covered under ICON's Limited Lifetime Warranty
APPLICATION NOTE #485: Compatible with 2.5"-7" of front lift
ICON 2005+ Ford Super Duty Front Lower Adjustable Link Kit
Improves front end articulation and overall drivability
Corrosion resistant semi-gloss black powder coat finish
PTFE lined FK spherical bearings eliminate deflection
Recommended Aftermarket Tires: Up to 37" x 12.50"
2005-UP FORD SUPER DUTY FRONT LOWER LINKS
APPLICATION NOTE #1: Only fits 4WD models
Factory Wheels & Tires Fitment: Yes
05-UP FSD FRONT LOWER LINKS
05-26 FSD FRONT LOWER LINKS
Suspension Control Arm Kit
FSD FRONT LOWER LINKS
FSD LOWER LINKS
164502
