I-beam Race Spindle and 2.25" Front Hub Upgrade Kit - Ford

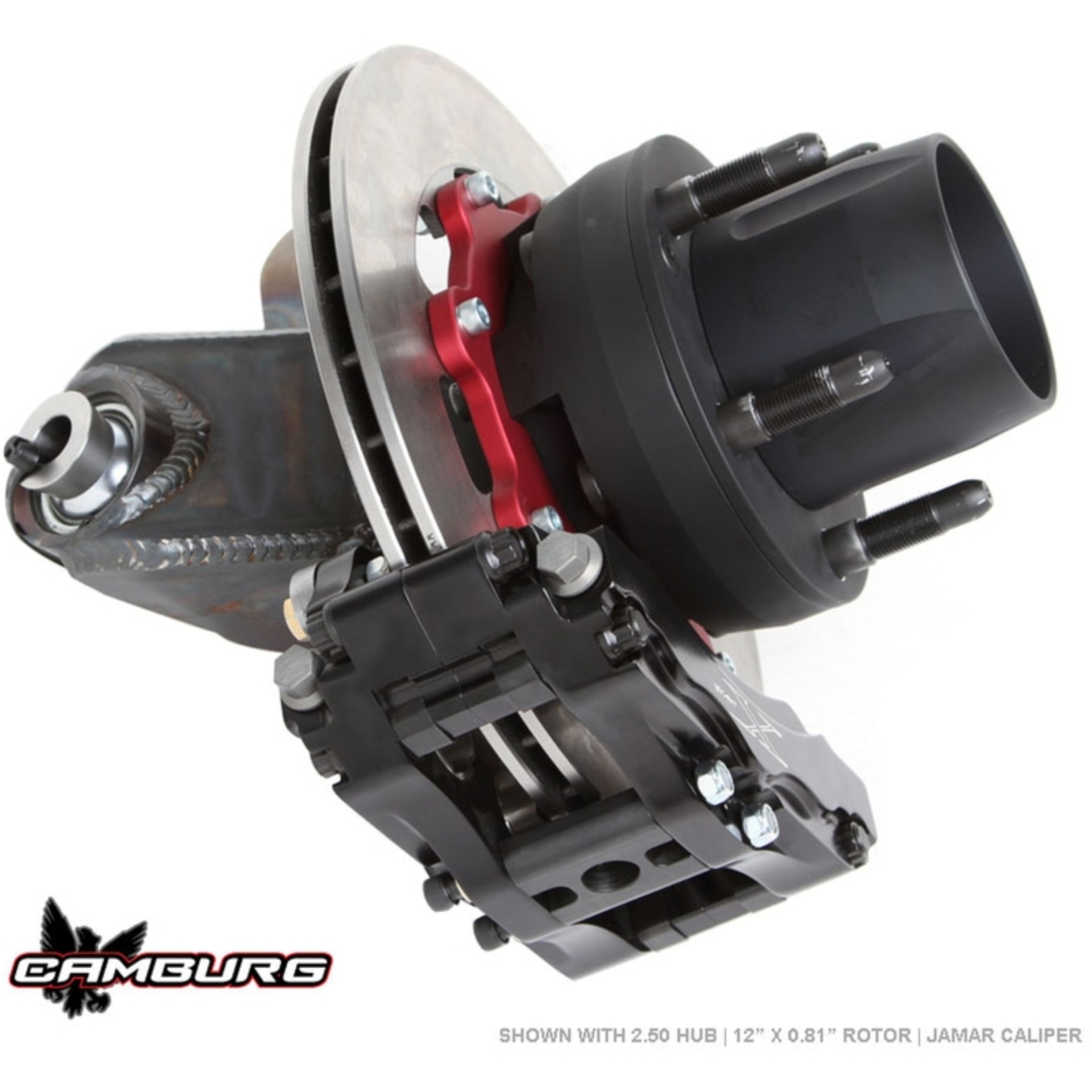

These new race spindles replace the weak link in the front suspension, NO STOCK BALL JOINTS! We replace the upper and lower ball-joints with 1" FK uniballs with heat treated stainless steel spacers and 3/4" through bolts. Minor fabrication/machining to the I-beam end will be needed and we recommend double shearing the uniballs. These are designed for the standard RWD beam end, not a 4WD Dana 44 beam conversion. We also build 1.5" of lift into these for better ground clearance. You will need to convert your steering to use a FK 7/8" JMX heim joint. We can mix and match many different hub and brake combinations with this design to suit your needs and budget. Standard they come with our 2.25 hubs and 12" Wilwood rotors and superlite 4 piston calipers. You need wheels that are setup for 5/8" wheel studs and have a 4.25" center-bore. Fabricated spindles 2.25 race hubs Wilwood 12" x 1.25 rotors Superlite 4 piston calipers and nbsp;.

Camburg Ford F-150 2wd '87-96 I-beam Race Spindle and 2.25" Front Hub Upgrade Kit

Camburg Ford F-150 2wd 87-96 I-beam Race Spindle & 2.25 Front Hub Upgrade Kit

I-beam Race Spindle and 2.25" Front Hub Upgrade Kit - Ford

I-beam Race Spindle and 2.25" Front Hub Upgrade Kit

Need further assistance? Call 1-714-848-8880.

Disc Brake Spindle Set And Hardware Kit

Camburg Spindle Kit

Fabricated spindles

Wilwood brake kit

4130 Chromoly

Spindle Kit

BrkHdwKit
