With conventional steering stabilizers, turning in one direction creates an increase in pressure inside the stabilizer as the shaft occupies more volume in the body and displaces the oil. The repercussion is a push or pull steering force felt by the driver as the stabilizer attempts to return to its neutral state. To overcome this unidirectional force, dual opposing stabilizers are often used, but this requires additional mounting hardware and space. The Factory Race Series 2.0 Stabilizer ATS utilizes an Adjustable Through Shaft (ATS) architecture that eliminates shaft fluid displacement throughout the stabilizer’s entire travel in both directions. The external piggyback reservoir provides additional fluid capacity and utilizes an Internal Floating Piston (IFP) to separate the fluid from the nitrogen gas charge to eliminate cavitation. For increased control that can be tailored to any driving style and setup, an external adjuster provides 24 clicks of adjustment to fine tune the feel. The result is highly customizable and consistent damping of unwanted steering feedback in a single, bolt-on stabilizer.
Uncompromised performance through FOX’s patented internal bypass technology delivers the feel of near-endless suspension travel. Exclusive internal bypass technology allows oil to flow around the piston at some points of the stroke – while creating humongous pressure at other points – supporting the vehicle like no other product can. Floating through terrain is accomplished with FOX’s ride zone – combining a race-developed shock piston, internal bypass and Dual Speed Compression adjustment – allowing fine tuning for weight, terrain and speed. Dominate any terrain with the brute strength of 3- and 2.5-inch aluminum bodies, cactus cooler reservoirs and 7/8” shafts with redundant seals, all proven in the harshest of environments under the toughest of conditions.
Eliminates fluid displacement, delivering neutral and consistent damping of unwanted steering feedback
17-ON Ford Superduty ATS Stabilizer, 8.1" Trav, 22.19" Ext, Through-Shaft,
Application specific valving to maximize performance.

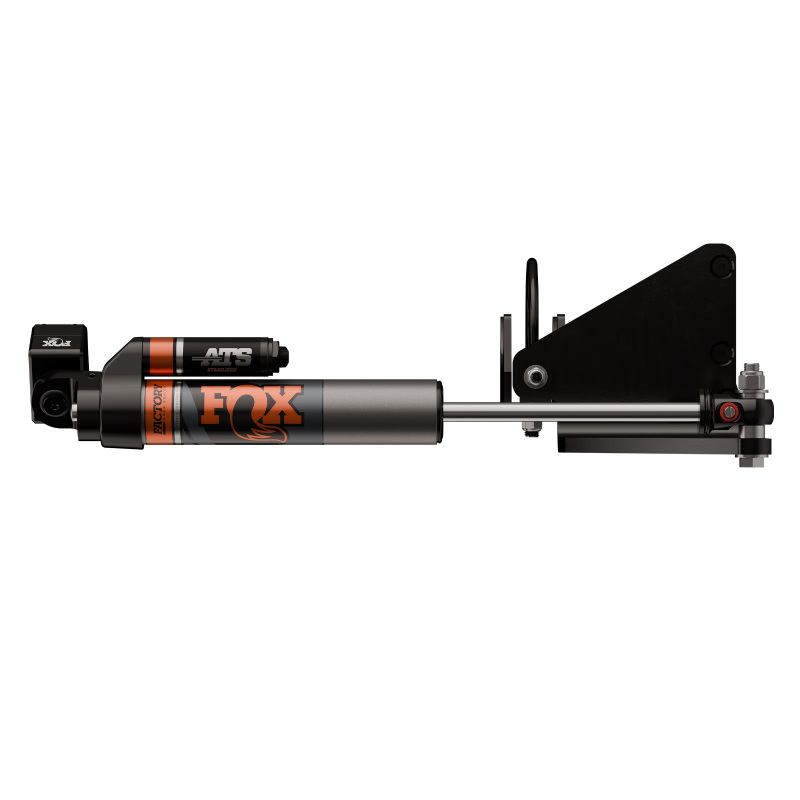

Fox 17-22 Ford Super Duty ATS Stabilizer w/ Bracket
Performance Tuned For Vehicle Specific Application
Aluminum Body Dissipates Heat Faster Than Steel
Black Anodized CNC Machined Aluminum Components
External Reservoir With Compression Adjuster
FACTORY RACE SERIES 2.0 ATS STABILIZER
FOX 2.0 FACTORY SERIES ATS STABILIZER
Adjustable Through Shaft Stabilizer
Steering Stabilizer
2.0 Stabilizer
