ICON's exclusive Compression Damping Electronic Valves are included for actively dialing in your suspension performance. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.
These 3.0 Series Shocks are designed as an OEM shock replacement, making installation a simple and straightforward bolt-on affair. Compatible with rear lift heights from 0-1.5” over stock on Tundra or up to 3" of rear lift on Sequoia, allowing for the fitment of larger, more aggressive wheel and tire combinations. First class ICON manufacturing processes and quality components are used to ensure these shocks function to their maximum potential without issue.
3.0 Series shocks boast 50% more piston surface area compared to 2.5 Series shocks. This translates into increased stability and vehicle control at the extremes of off-road use, with benefits also making themselves apparent in on-road driving conditions. Increased internal oil volume and more external surface area compared to 2.5 Series Shocks offer improved heat dissipation and resistance to shock fade under hard use.
ICON's 3.0 Series Rear Shocks with CDEV for 2022-2026 Toyota Tundra/2023-2026 Toyota Sequoia are designed to take the off-road capability of the truck to new levels by increasing wheel travel by up to 20% and significantly improving the damping ability of the rear shocks, while being compatible with rear lift heights up to 1.5" over stock on Tundra or up to 4" of rear lift on Sequoia.
ICON VS 3.0 Series shocks are designed and built to give your vehicle maximum performance off-road and a smooth ride on the street. They feature remote reservoirs and are 100% rebuildable/revalveable. CDCV allows for damping adjustment.
APPLICATION NOTE #23: Compatible with 0-4” of rear lift on Sequoias without TRD Off Road package or 0-2" of rear lift on Sequoias equipped with TRD Off Road package and Sequoia TRD Pro.
ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
APPLICATION NOTE #19: Compatible with 0-3.5” of rear lift on Tundras equipped with rear OE Load-leveling Rear Height Control Air Suspension
APPLICATION NOTE #17: Compatible with 0-1.5” of rear lift on non-TRD Tundras or 0-1" lift on TRD Tundras equipped with rear coil springs
APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles
APPLICATION NOTE #198: An iOS operated device is required to run ICON Intelligent Control app
APPLICATION NOTE #204: Also requires installation of applicable IIC kit and CDEV front shocks
Compatible with up to 1.5” of rear lift on most Tundra models or 3" of lift on Sequoia
PTFE lined spherical bearings for extended longevity and minimal deflection
Vehicle specific design and tuning for superior shock damping and control
3.0” Body diameter for increased oil volume and larger piston area
CNC machined 6061 aluminum components with a black anodized finish

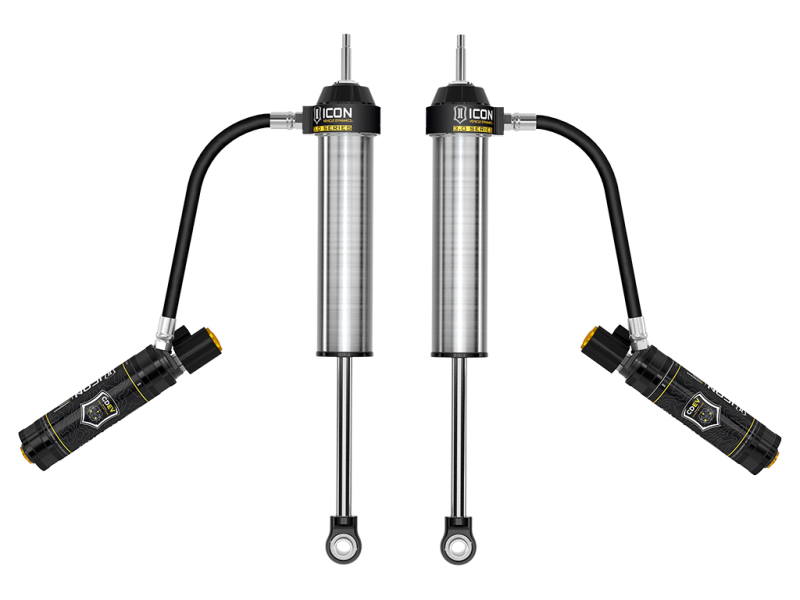

ICON 22-23 Toyota Tundra Rear 3.0 Series Shocks VS RR CDEV - Pair
22-26 TUNDRA 0-1.5"/23-26 SEQUOIA 0-4" REAR 3.0 VS RR CDEV PAIR
7/8” diameter induction hardened, chrome plated shock shafts
20% increase in rear suspension travel compared to stock
Corrosion resistant CAD plated steel shock bodies
Fully Rebuildable and Re-tunable
Suspension Shock Absorber Set
SHOCK ABSORBER PAIR
57845EP
