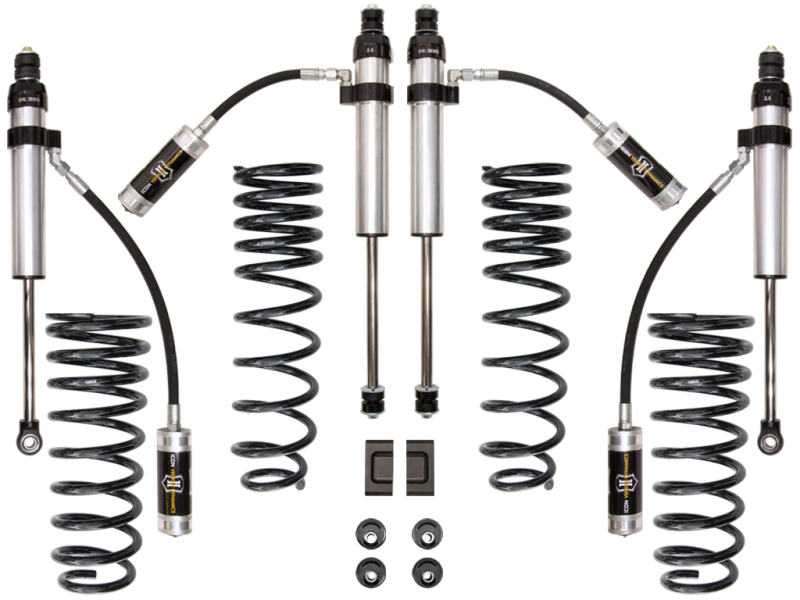

After an in-depth R&D process, ICON engineers have developed a 3” suspension system for the 80 Series that is aimed to improve on-road handling characteristics while also maximizing the Land Cruiser’s off-road potential. This Stage 2 system includes ICON-designed dual rate coil springs, caster correction bushings, sway bar relocation components, all bracketry and hardware required for install, and ICON Vehicle Dynamics 2.5 Aluminum Series remote reservoir shocks that feature a vehicle specific valving for optimized ride quality and balanced damping front to rear. The 2.5" remote reservoir shocks front and rear ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during extended off-road use. This ICON Stage 2 System is the perfect suspension system for drivers seeking a quality on-road ride with outstanding off-road performance under extreme use.
TECH NOTE: ICON’s advertised lift heights are based around a typical 80 Series build which usually includes added weight of accessories such as heavier front bumper/winch and heavier rear bumper/spare tire. Lift heights may be higher than advertised if installed on a stock weighted vehicle.
APPLICATION NOTE #71: ANY KIT WITH PART #57802P/CP IN IT WITH STOCK REAR COIL SPRINGS VEHICLE WILL RIDE IN BUMP ZONE OF SHOCK. STOCK OR SOME AFTERMARKET COIL SPRINGS MAY COME UNSEATED AT FULL DROOP.
2.5 Aluminum Series front and rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
ICON-engineered dual rate coil springs provide exceptional on-road ride quality and outstanding off-road performance
Vehicle specific tuned 2.5 Series front and rear shocks offer superior shock damping and control
100% bolt-on design means no drilling, cutting or welding necessary for install
1991-1997 TOYOTA LAND CRUISER 80 SERIES 3" LIFT STAGE 2 SUSPENSION SYSTEM
ICON 91-97 Toyota Land Cruiser 80 Series 3in Stage 2 Suspension System
Recommended Aftermarket Wheels: 17x8.5 with 4.63” Backspace
91-97 LAND CRUISER 80 SERIES 3" STAGE 2 SUSPENSION SYSTEM
Approximately 40% increased front wheel travel over stock
Approximately 35% increased rear wheel travel over stock
6061 aircraft grade aluminum CNC machined components
APPLICATION NOTE #150: SHOCKS ARE FULLY SERVICEABLE
2.5 body remote reservoir shocks with 7/8" shafts
91-97 LC80 3" STAGE 2 SUSPENSION SYSTEM
OEM Wheels & Tires Fitment: Yes
Suspension Lift Kit
SUSPENSION SYSTEM
3” lift height
