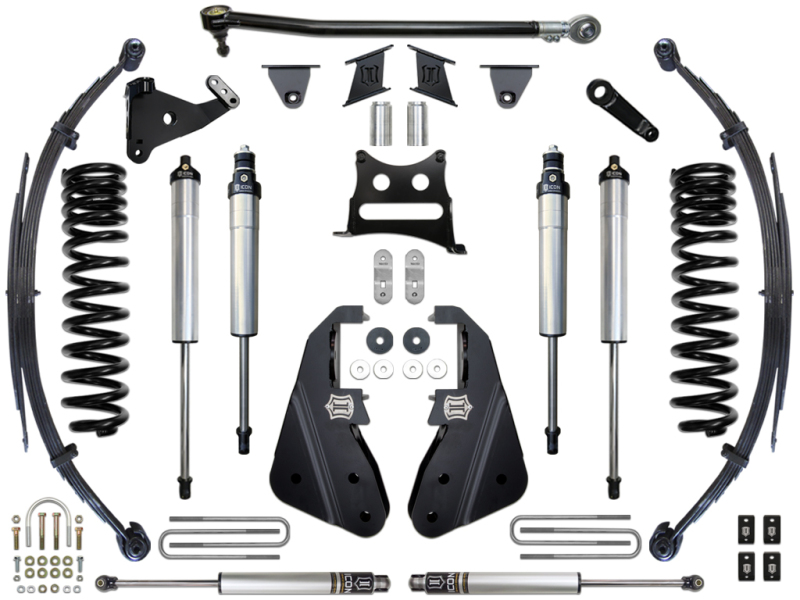

This ICON Vehicle Dynamics 7” suspension system is a great way to lift your 4WD 2017-2022 Ford F-250/F-350 Super Duty while drastically improving ride quality and performance. This suspension system is perfect for on-road and off-road use including towing, job site duty, and general off-road adventure. ICON's 7" Stage 2 System is comprised of dual rate coil springs, progressive leaf springs, radius arm drop brackets, adjustable track bar, dual opposing steering stabilizer kit, ICON 2.5 Aluminum Series internal reservoir front and rear shocks, plus all of the necessary hardware for installation. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.
This ICON Vehicle Dynamics 7” suspension system is a great way to lift your 4WD 2017-UP Ford F250/350 Super Duty while drastically improving ride quality and performance. This suspension system is perfect for on-road and off-road use including towing, job site duty, and general off-road adventure. ICON's 7" Stage 2 System is comprised of dual rate coil springs, progressive leaf springs, radius arm drop brackets, adjustable track bar, dual opposing steering stabilizer kit, ICON 2.5 Aluminum Series internal reservoir front and rear shocks, plus all of the necessary hardware for installation. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.
TECH NOTE: Brake line kit (Part # 61110) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)
TECH NOTE: 2020-2022 Super Duty models equipped with Tremor package will have front lift height of 6.75" over stock. May require taller rear blocks with springs to sit level.
TECH NOTE: 2020-2022 Super Duty models without Tremor package will have front lift height of 7.75" over stock. May require taller rear blocks with springs to sit level.
2.5 Aluminum Series front qand rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
APPLICATION NOTE #31: ‘08 - Current Superduty Models With Gas Engines May Need Exhaust Modified To Clear Front Driveshaft
Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
APPLICATION NOTE #57: FACTORY BLOCK MUST BE USED IN CONJUNCTION WITH ICON LEAF SPRINGS FOR TRUCK TO SIT LEVEL
ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain
APPLICATION NOTE #118: OEM STABILIZER DOES NOT WORK WITH REQUIRED DRAG LINK FLIP ON THIS KIT
APPLICATION NOTE #8: THIS SYSTEM MAY REQUIRE A CARRIER BEARING DROP BRACKET KIT (33700)
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
TECH NOTE: 2017-2019 Super Duty models will have front lift height of 7" over stock.
Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
ICON shocks feature vehicle specific tune for superior performance and ride quality
Radius arm drop brackets correct geometry and caster for optimal alignment specs
Progressive leaf springs improve ride quality without reducing towing capacity
FK Rod End bearings provide extended longevity and minimal deflection
APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY
2017-2022 FORD F-250/F-350 7" LIFT STAGE 2 SUSPENSION SYSTEM
2017-UP FORD F-250/F-350 7" LIFT STAGE 2 SUSPENSION SYSTEM
ICON 2017+ Ford F-250/F-350 7in Stage 2 Suspension System
Approximately 50% increased front wheel travel over stock
Lifetime guarantee against coil spring breakage or sag
17-UP FORD F-250/F-350 7" STAGE 2 SUSPENSION SYSTEM
17-22 FORD F-250/F-350 7" STAGE 2 SUSPENSION SYSTEM
Fits 2017-2022 F-250 / F-350 4WD applications
Shocks are fully rebuildable and revalvable
17+ FORD F-250/F-350 7" STAGE 2 SUSP SYS
17-22 FORD F-250/F-350 7" STG 2 SUSP SYS
OEM Wheels & Tires Fitment: Yes
Ships in multiple boxes
Suspension Lift Kit
SUSPENSION SYSTEM
