ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks with CDEV are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. This RXT rear shock features a side-mount eyelet making it shorter in collapsed length, longer at extension, and still fit in the factory mounting location, allowing for additional wheel travel when paired with ICON Multi-Rate Leaf Springs. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks with CDEV are 100% rebuildable and 100% revalveable.
Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.
ICON 2.5 Aluminum Series shocks with CDEV are designed to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune.
ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
ICON exclusive side mounted "RXT" rod ends allow for increased shaft travel and compatibility with vehicle's stock shock mounting points
One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
APPLICATION NOTE #198: An iOS operated device is required to run ICON Intelligent Control app
APPLICATION NOTE #204: Also requires installation of applicable IIC kit and CDEV front shocks
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
APPLICATION NOTE #244: ICON Multi-Rate Leaf Springs Part # 158505 required for installation
TECH NOTE: Compatible with 0-2.625" of rear lift provided by ICON Multi-Rate Leaf Springs
PTFE lined spherical bearings and application specific mounting hardware
TECH NOTE: Not compatible with 2005-2015 2WD 5-Lug Toyota Tacoma models
APPLICATION NOTE #185: Will not fit 2WD Tacoma with 5 wheel lug studs

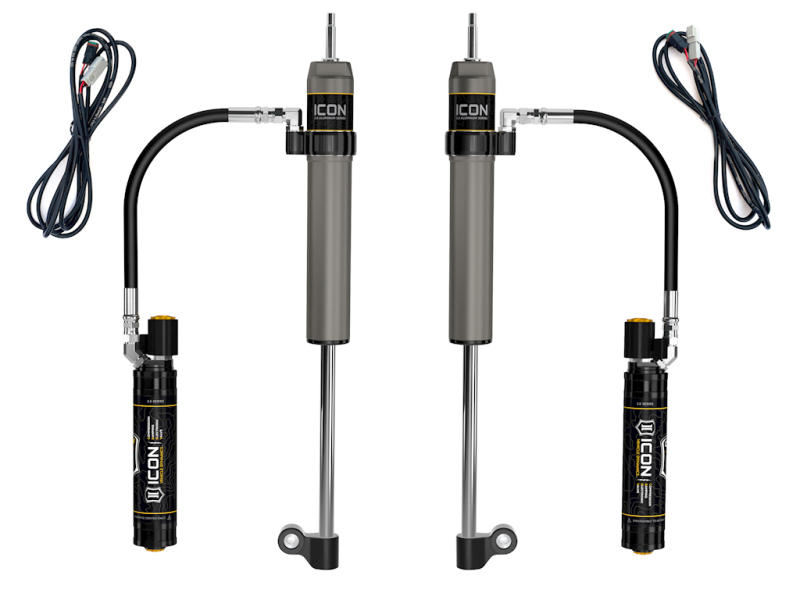

ICON 2016+ Toyota Tacoma Rear 2.5 Series Shocks VS RR CDEV - Pair
7/8” diameter induction hardened, chrome plated shock shaft
2005-UP TACOMA RXT REAR 2.5 REMOTE RESERVOIR CDEV SHOCK PAIR
Nitrogen charged monotube design with piggyback reservoir
6061 aircraft grade aluminum CNC machined components
05-23 TACOMA RXT REAR 2.5 VS RR CDEV PAIR
05-UP TACOMA RXT REAR 2.5 RR CDEV PAIR
05-UP TACOMA RXT 2.5 RR CDEV PAIR
Suspension Shock Absorber Set
SHOCK ABSORBER PAIR
RXT SHOCKS W/ CDEV
100% Revalveable
100% Rebuildable
57826EP
