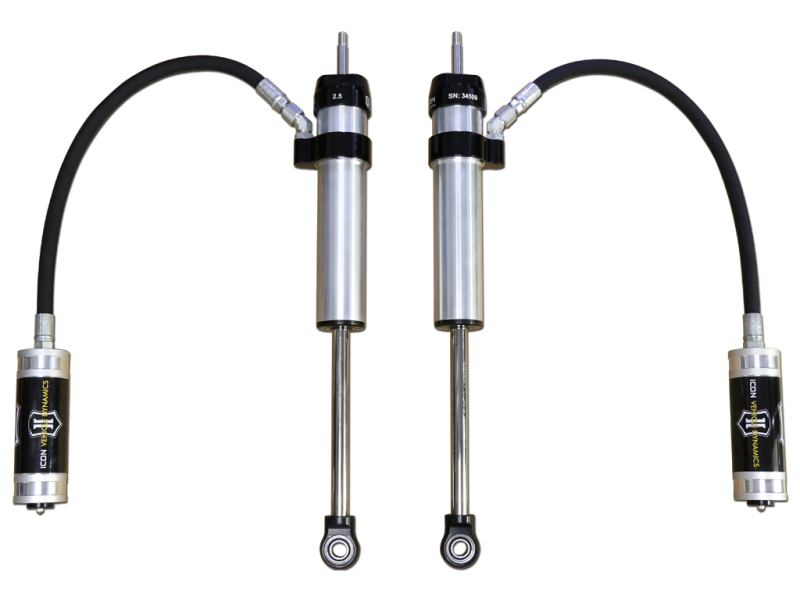

ICON 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) or the Omega Series bypass shocks.
TECH NOTE: Will not fit models with factory rear air suspension. Vehicles equipped with rear air suspension require rear coil conversion, ICON part number 56110, and rear coil springs, ICON part number 52700 or 52800.
ICON VS 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. They feature remote reservoirs and are 100% rebuildable/revalveable.
All ICON 2.5 Aluminum Series Piggyback and Remote Reservoir shocks can be upgraded to ICON’s Compression Damping Control Valve (CDCV)
One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
TECH NOTE: Vehicles equipped with Kinetic Dynamic Suspension System (KDSS) also require ICON rear track bar part numer 54200
ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
2007-2014 FJ CRUISER/2003-UP 4RUNNER/2003-UP GX470/460 1-3" LIFT REAR 2.5 VS REMOTE RESERVOIR SHOCK PAIR
One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
ICON 2007+ Toyota FJ / 2003+ Toyota 4Runner 1-3in Rear 2.5 Series Shocks VS RR - Pair
PTFE lined spherical bearings and application specific mounting hardware
7/8” diameter induction hardened, chrome plated shock shaft
Nitrogen charged monotube design with piggyback reservoir
TECH NOTE: Compatible with 1-3" of rear lift over stock
07-UP FJ/03-UP 4RNR/03-UP GX 1-3" REAR 2.5 VS RR PAIR
07-23 FJ/03-24 4RNR/03-23 GX 1-3" REAR 2.5 VS RR PAIR
6061 aircraft grade aluminum CNC machined components
07-14 FJ/03-UP T4R/GX 1-3 REAR 2.5 PAIR
Suspension Shock Absorber Set
REAR SHOCK ABSORBERS
SHOCK ABSORBER PAIR
100% Rebuildable
100% Revalveable
57810P
