ICON’s 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. With a truly vehicle-specific design, these shocks are configured specifically for each application in both length and damping tune. Featuring ICON exclusive rod ends with side mounted eyelets, these "RXT" shocks maximize the capabilities of the suspension platform by allowing for increased shaft travel compared to traditional shock absorbers while remaining fully bolt on into the vehicle's factory shock mounts. One-piece impact extruded aluminum cylinders offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Like all ICON shock absorbers, these 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON’s unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal “Bump Zone” that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom-out conditions and controls the suspension effectively when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.
ICON’s 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. With a truly vehicle-specific design, these shocks are configured specifically for each application in both length and damping tune. Featuring one-piece impact extruded aluminum cylinders, these 2.5 Aluminum Series shocks offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Like all ICON shock absorbers, these 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON’s unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal “Bump Zone” that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom-out conditions and controls the suspension effectively when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. If you are looking for a more user defined tune, consider looking into the Omega Series bypass shocks.
ICON 2.5 Aluminum Series shocks are designed for outstanding performance off-road and a smooth ride on the street. With vehicle-specific design, these shocks are configured specifically for each application in both length and damping tune.
ICON exclusive side mounted "RXT" rod ends allow for increased shaft travel and compatibility with vehicle's stock shock mounting points
One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
APPLICATION NOTE #244: ICON Multi-Rate Leaf Springs Part # 158505 required for installation
TECH NOTE: Compatible with 0-2.625" of rear lift provided by ICON Multi-Rate Leaf Springs
PTFE lined spherical bearings and application specific mounting hardware
APPLICATION NOTE #185: Will not fit 2WD Tacoma with 5 wheel lug studs
ICON Multi-Rate Leaf Springs Part # 158505 required for installation

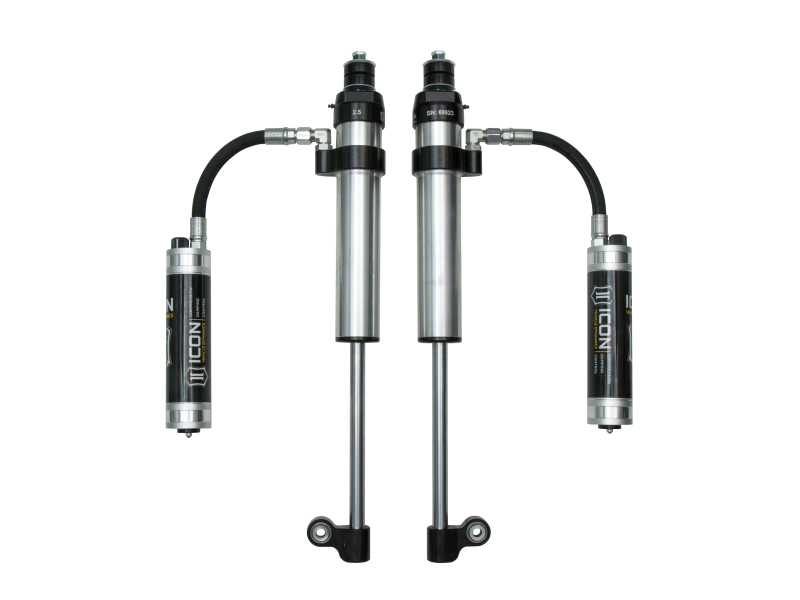

ICON 2005+ Toyota Tacoma RXT Rear 2.5 Series Shocks RR CDCV - Pair
7/8” diameter induction hardened, chrome plated shock shaft
2005-UP TACOMA RXT REAR 2.5 REMOTE RESERVOIR CDCV SHOCK PAIR
Nitrogen charged monotube design with remote reservoir
6061 aircraft grade aluminum CNC machined components
Double-sealed Schrader caps reduce risk of damage
05-UP TACOMA RXT REAR 2.5 RR CDCV PAIR
05-23 TACOMA RXT REAR 2.5 RR CDCV PAIR
Suspension Shock Absorber Set
SHOCK ABSORBER PAIR
RXT SHOCKS W/ CDC
100% Rebuildable
100% Revalveable
57826CP
