ICON’s 2.5 Aluminum Series shocks shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Featuring one-piece impact extruded aluminum cylinders, these 2.5 Aluminum Series shocks offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Like all ICON'S Shock Absorbers, 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restri cts oil flow into the reservoir which creates 10 levels of compression damping force ranges. If you are looking for a more user defined tune, consider looking into the Omega Series bypass shocks.
ICON’s 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Featuring one-piece impact extruded aluminum cylinders, these 2.5 Aluminum Series shocks offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Like all ICON'S Shock Absorbers, 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.
ICON’s 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune.
APPLICATION NOTE #253: Distance to bump stops must be reduced by at least 2" to prevent damage to shocks/shock mounts. This can be accomplished with lift blocks or bump stop spacers.
One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
PTFE lined spherical bearings and application specific mounting hardware

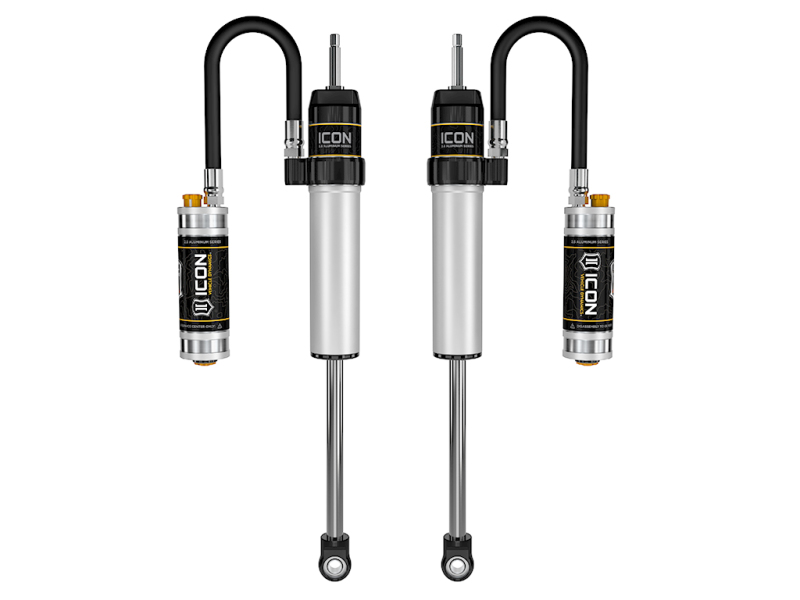

ICON 2005+ Toyota Tacoma 6in Rear 2.5 Series Shocks VS RR CDCV - Pair
APPLICATION NOTE #185: Will not fit 2WD Tacoma with 5 wheel lug studs
05-UP TACOMA 6" LIFT REAR 2.5 VS REMOTE RESERVOIR CDCV SHOCK PAIR
7/8” diameter induction hardened, chrome plated shock shaft
TECH NOTE: Compatible with 2-4" of rear lift over stock
Nitrogen charged monotube design with remote reservoir
6061 aircraft grade aluminum CNC machined components
05-UP TACOMA 6" REAR 2.5 VS RR CDCV PAIR
05-23 TACOMA 6" REAR 2.5 VS RR CDCV PAIR
05-UP TACO 6" REAR 2.5 VS RR CDCV
Suspension Shock Absorber Set
REAR SHOCK ABSORBERS
SHOCK ABSORBER PAIR
100% Rebuildable
100% Revalveable
57806CP
