ICON Omega Series Bypass shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in length but allow the user to customize the ride characteristics to their liking through adjustment of the bypass valves. Like all ICON shock absorbers, Omega Series shocks are 100% rebuildable and 100% revalveable. ICON’s use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal “Bump Zone” that when used, creates a significant increase in damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON Bypass Valve is an externally adjustable valve that restricts oil flow through the bypass tube and provides 28 settings of compression and rebound adjustment with no tools required.
ICON Omega Bypass shocks are designed to give your vehicle outstanding performance on and off-road. They are configured specifically for each application and allow the user to customize the ride through adjustment of the bypass valves.
ICON's Bypass Valve technology allows adjustment of compression and rebound damping with high resolution across the entire adjustment range
One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
Internal “Bump Zone” increases damping force to provide more control as the shock approaches full compression
Hand adjustable bypass valves with 28 detented settings at quarter turn increments for precise suspension tuning
One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
Polyurethane bushings and forged steel mounting stems for OE factory type fitment
PTFE lined spherical bearings and application specific mounting hardware

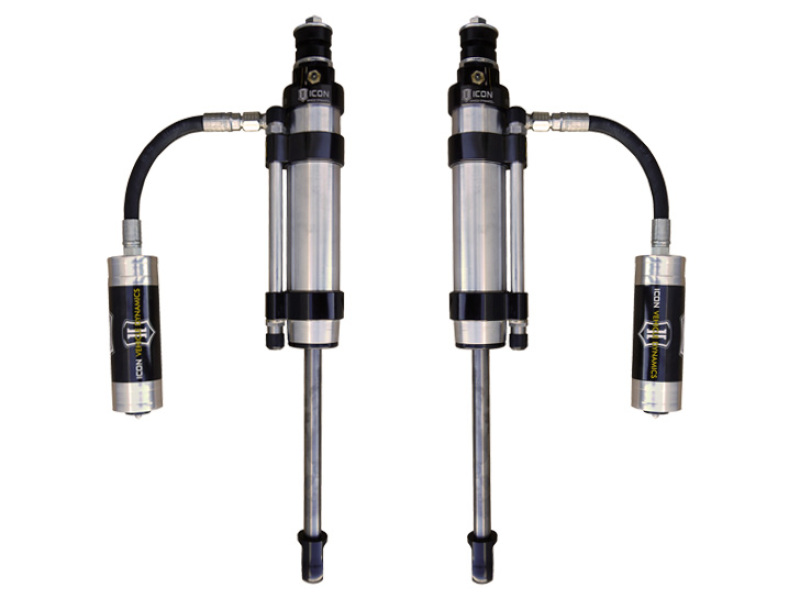

ICON 2005+ Toyota Tacoma 0-1.5in Rear 2.5 Omega Series Shocks RR - Pair
APPLICATION NOTE #185: Will not fit 2WD Tacoma with 5 wheel lug studs
2005-UP TACOMA 0-1.5" LIFT REAR 2.5 OMEGA REMOTE RESERVOIR SHOCK PAIR
7/8” diameter induction hardened, chrome plated shock shaft
TECH NOTE: Compatible with 0-1.5" of rear lift over stock
6061 aircraft grade aluminum CNC machined components
Bypass tubes are replaceable in the event of damage
05-UP TACOMA 0-1.5" REAR 2.5 OMEGA RR PAIR
05-23 TACOMA 0-1.5" REAR 2.5 OMEGA RR PAIR
05-UP TACOMA 0-1.5" REAR 2.5 OMEGA PAIR
Suspension Shock Absorber Set
SHOCK ABSORBER PAIR
TACOMA REAR OMEGA
100% Revalveable
100% Rebuildable
59905P
