ICON Vehicle Specific (V.S.) 2.5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. If you are looking for a more user defined tune, consider looking into the Omega Series bypass shocks.
One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
CAD plated, precision machined 1026 DOM steel shock body for maximum durability and corrosion resistance

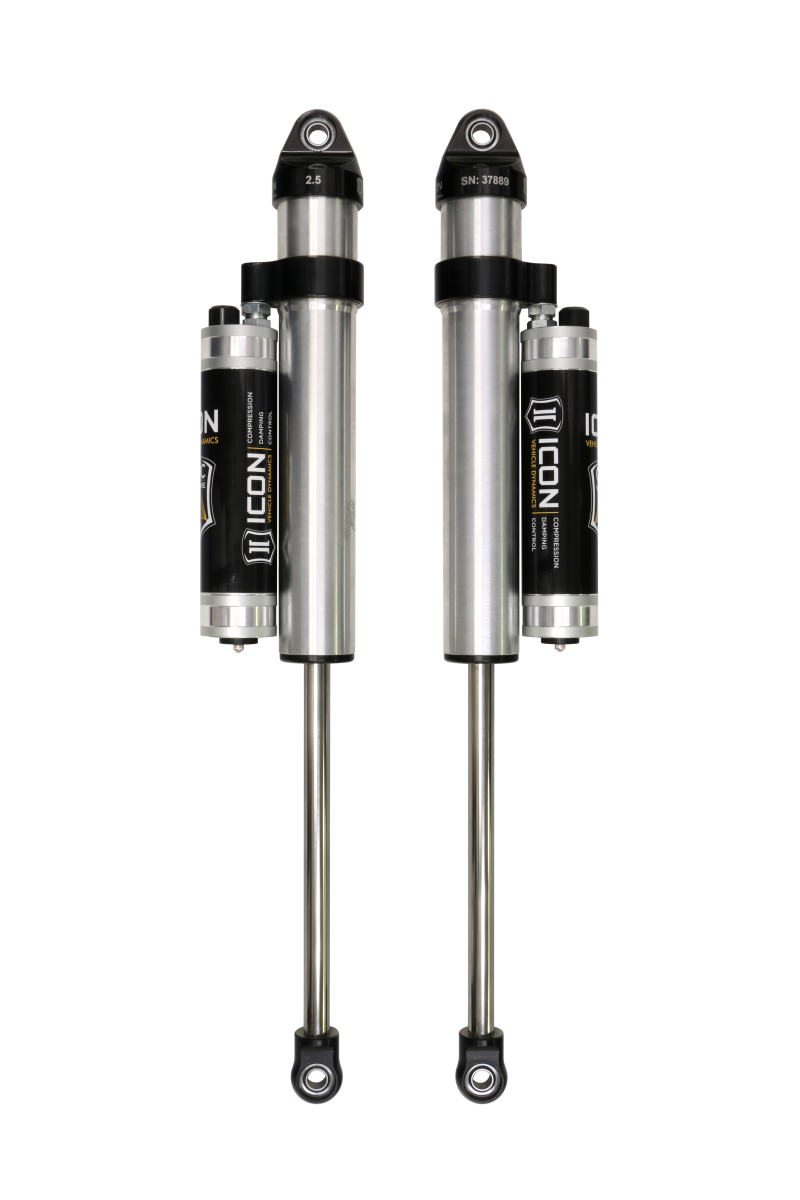

ICON 08-16 Ford F-250/F-350 Super Duty 4WD 4.5-9in Front Secondary 2.5 Series VS PB CDCV - Pair
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
2008-2016 FORD SUPER DUTY 4WD 4.5-9" LIFT FRONT SECONDARY 2.5 VS PIGGYBACK CDCV SHOCK PAIR
PTFE lined spherical bearings and application specific mounting hardware
7/8” diameter induction hardened, chrome plated shock shaft
Nitrogen charged monotube design with piggyback reservoir
08-16 FSD 4WD 4.5-9" FRONT SECONDARY 2.5 VS PB CDCV PAIR
6061 aircraft grade aluminum CNC machined components
08-16 FSD 4.5-9 FRNT SECNDRY VS PB CDCV
Suspension Shock Absorber Set
SECONDARY SHOCKS
100% Revalveable
100% Rebuildable
