ICON’s 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. With a truly vehicle-specific design, these shocks are configured specifically for each application in both length and damping tune. Featuring one-piece impact extruded aluminum cylinders, these 2.5 Aluminum Series shocks offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Like all ICON shock absorbers, these 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON’s unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal “Bump Zone” that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom-out conditions and controls the suspension effectively when compressing at high velocity. If you are looking for a more user-defined tune, consider looking into the Compression Damping Control Valve (CDCV) shocks.
All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON’s Compression Damping Control Valve (CDCV)
One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use

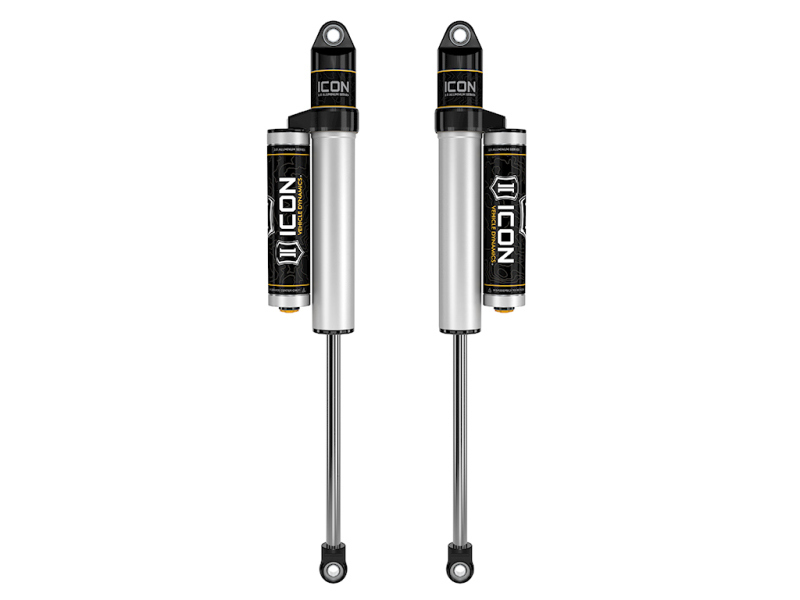

ICON 08-16 Ford F-250/F-350 Super Duty 4WD 4.5-9in Front Secondary 2.5 Series Shocks VS PB
PTFE lined spherical bearings and application specific mounting hardware
2008-2016 FSD 4WD 4.5-9" FRONT SECONDARY 2.5 VS PIGGYBACK SHOCK PAIR
7/8” diameter induction hardened, chrome plated shock shaft
Nitrogen charged monotube design with piggyback reservoir
6061 aircraft grade aluminum CNC machined components
Double-sealed Schrader caps reduce risk of damage
08-16 FSD 4WD 4.5-9" FRONT SECONDARY 2.5 VS PB
08-16 FSD 4.5-9 FRNT SECNDRY 2.5 VS PB
Suspension Shock Absorber Set
SECONDARY SHOCKS
100% Rebuildable
100% Revalveable
