ICON Vehicle Specific (V.S.) 2.5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. If you are looking for a more user defined tune, consider looking into the Omega Series bypass shocks.
ICON 2.5 Series shocks are configured specifically for each application in both length and damping tune. Piggyback reservoir improves cooling and creates an internal Bump Zone that when used creates an additional 20% of damping force.
One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
CAD plated, precision machined 1026 DOM steel shock body for maximum durability and corrosion resistance
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
PTFE lined spherical bearings and application specific mounting hardware

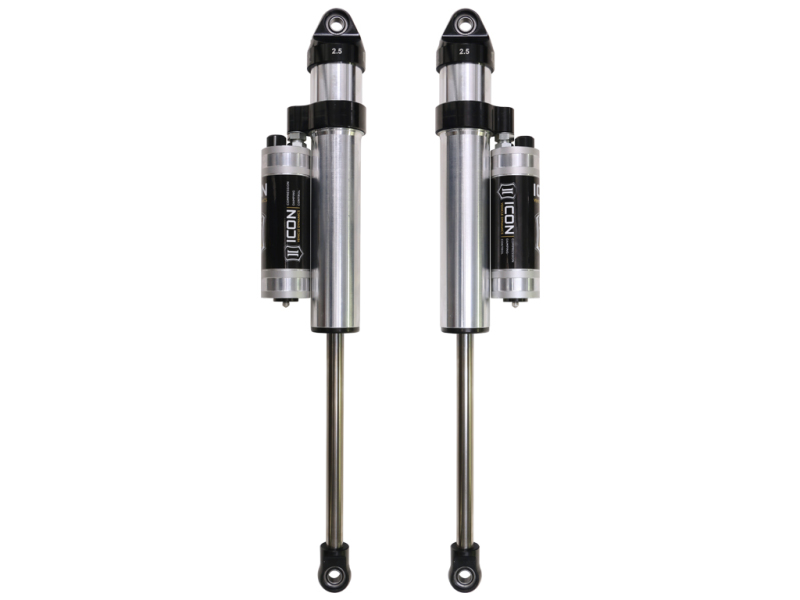

ICON 09-14 Ford F-150 6in Rear 2.5 Custom Shocks VS PB CDCV - Pair
7/8” diameter induction hardened, chrome plated shock shaft
2009-2014 F150 6" LIFT REAR 2.5 VS PIGGYBACK CDCV SHOCK PAIR
Nitrogen charged monotube design with piggyback reservoir
6061 aircraft grade aluminum CNC machined components
09-14 F150 6" REAR 2.5 VS PB CDCV UPKG PAIR
09-14 F150 6" REAR 2.5 VS PB CDCV PAIR
Suspension Shock Absorber Set
REAR SHOCK ABSORBERS
100% Revalveable
100% Rebuildable
97702CP-CB
