FOX Factory Race Series 3.0 Internal Bypass shocks for the 14th generation Ford F-150 deliver position-sensitive damping technology, Dual Speed Compression (DSC) adjustment, and high-speed ready performance in a bolt-on kit. Patented Internal Bypass technology allows for multiple zones of damping control. The result is a comfortable, confident ride with increased damping force through rough terrain. Internal bypass shocks produce more force progressively to control hard bottom-outs, prevent harsh top-outs, and provide an initial catch for landing. Shock fluid bypasses the main piston through aseries of bleed holes in the ride zone. As the shock extends past the ride zone in rebound or compression, the bleed holes terminate, forcing fluid through the main piston. The Factory Race Series shocks also stay cool by utilizing a Recirculating Reservoir Bridge. The bridge circulates shock fluid between the finned external reservoir and body using checked ports. Type III anodization prevents corrosion and wear of the 3-inch diameter aluminum bodies.The DSC adjuster allows you to dial in your F-150 for load, environment, and driving style.FOX Internal Bypass shocks deliver the support and confidence you need while driving Mach-3 through rugged terrain. Experience race-bred performance next time you leave the pavement.
Uncompromised performance through FOX’s patented internal bypass technology delivers the feel of near-endless suspension travel. Exclusive internal bypass technology allows oil to flow around the piston at some points of the stroke – while creating humongous pressure at other points – supporting the vehicle like no other product can. Floating through terrain is accomplished with FOX’s ride zone – combining a race-developed shock piston, internal bypass and Dual Speed Compression adjustment – allowing fine tuning for weight, terrain and speed. Dominate any terrain with the brute strength of 3- and 2.5-inch aluminum bodies, cactus cooler reservoirs and 7/8” shafts with redundant seals, all proven in the harshest of environments under the toughest of conditions.
Uncompromised performance through FOX s patented internal bypass technology delivers the feel of near-endless suspension travel. Exclusive internal bypass technology allows oil to flow around the piston at some points of the stroke - while creating humongous pressure at other points - supporting the vehicle like no other product can.Floating through terrain is accomplished with FOX s ride zone - combining a race-developed shock piston; internal bypass and Dual Speed Compression adjustment - allowing fine tuning for weight; terrain and speed.Dominate any terrain with the brute strength of 3-and 2.5-in. aluminum bodies; cactus cooler reservoirs and 7/8in. shafts with redundant seals; all proven in the harshest of environments under the toughest of conditions.

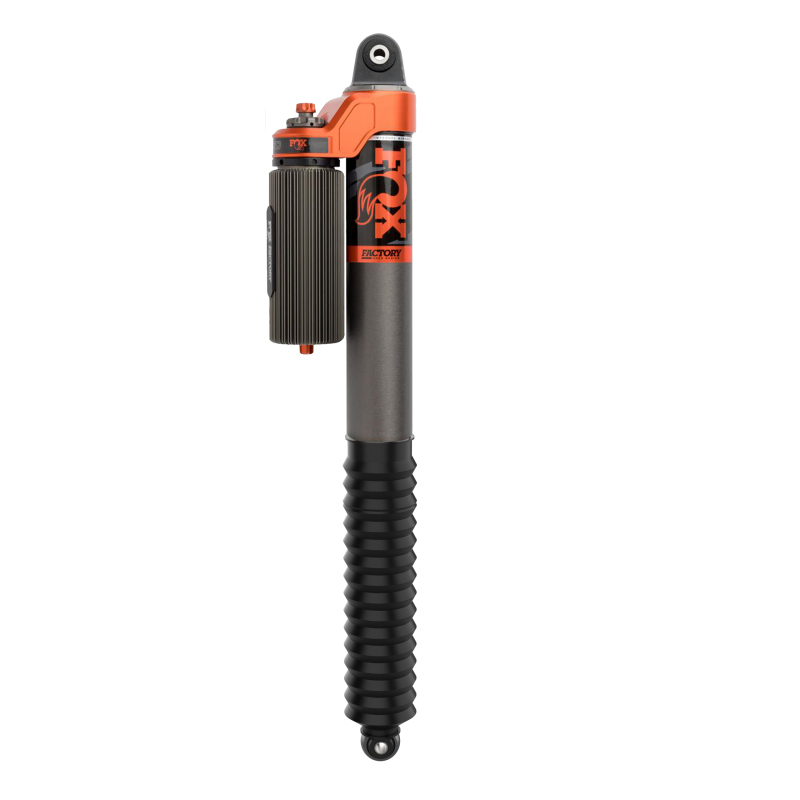

FOX 2021+ Ford F-150 0-1in Lift Rear Factory Race Series 3.0 Internal Bypass Piggyback Shock
FACTORY RACE SERIES 3.0 INTERNAL BYPASS PIGGYBACK (PAIR) - ADJUSTABLE
FACTORY RACE SERIES 3.0 INTERNAL BYPASS PIGGYBACK (PAIR)-ADJUSTABLE
Kit: 21-ON Ford F150; Rear; 3.0 Truck FRS; P/B; 0-1in. Lift; DSC
Kit: 21-ON Ford F150, Rear, 3.0 Truck FRS, P/B, 0-1” Lift, DSC
Application specific valving to maximize performance.
Finned External Reservoir System Dissipates Heat Fast
Black Anodized CNC Machined Aluminum Components
Quick Switch Compression And Rebound Adjusters
FOX 3.0 FACTORY PIGGYBACK SHOCKS
Suspension Shock Absorber Kit
3.0 Shocks
