FOX 2.5 Performance Series HTO shock is a bolt-on shock loaded with position-sensitive technology vehicle-specific valving and larger pistons to improve on and off-road performance. A type II anodized aluminum body efficiently dissipates heat and prevents corrosion. The 2.5-inch shock body features an internal floating piston (IFP) to separate the shock oil from the high-pressure nitrogen optimizing damping. Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement. HTO reduces harsh top-outs and increases comfort by forcing shock oil through a secondary shim stack to slow down shock shaft speed; HTO is particularly beneficial after installing heavier aggressive tires and applications lifted higher than OEM specification. Bolt-on 2.5 Performance Series HTO shocks to increase damping capacity and ride in comfort with position-sensitive rebound control.
Increase your vehicle's off-road capability by extending drop-out travel in most applications. Experience on-road comfort with performance-minded shock valving for a connected ride with less vehicle sway. Tuned specifically for your vehicle’s application._x000D__x000D_ _x000D__x000D_ Consistent and fade-resistant performance due to high-quality materials: aluminum bodies, race-developed main piston, and a true internal floating piston (IFP) to separate gas and oil._x000D__x000D_ _x000D__x000D_ Built-to-last, torture-tested and race-proven to give a lifetime of great rides. FOX products are built from aluminum, dissipating heat four times better than conventional materials. All FOX shocks are fully serviceable and resistant to corrosion and harsh environments.
Increase your vehicle s off-road capability by extending drop-out travel in most applications. Experience on-road comfort with performance-minded shock valving for a connected ride with less vehicle sway. Tuned specifically for your vehicle s application._x000D__x000D__x000D__x000D_Consistent and fade-resistant performance due to high-quality materials: aluminum bodies; race-developed main piston; and a true internal floating piston (IFP) to separate gas and oil._x000D__x000D__x000D__x000D_Built-to-last; torture-tested and race-proven to give a lifetime of great rides. FOX products are built from aluminum; dissipating heat four times better than conventional materials. All FOX shocks are fully serviceable and resistant to corrosion and harsh environments.

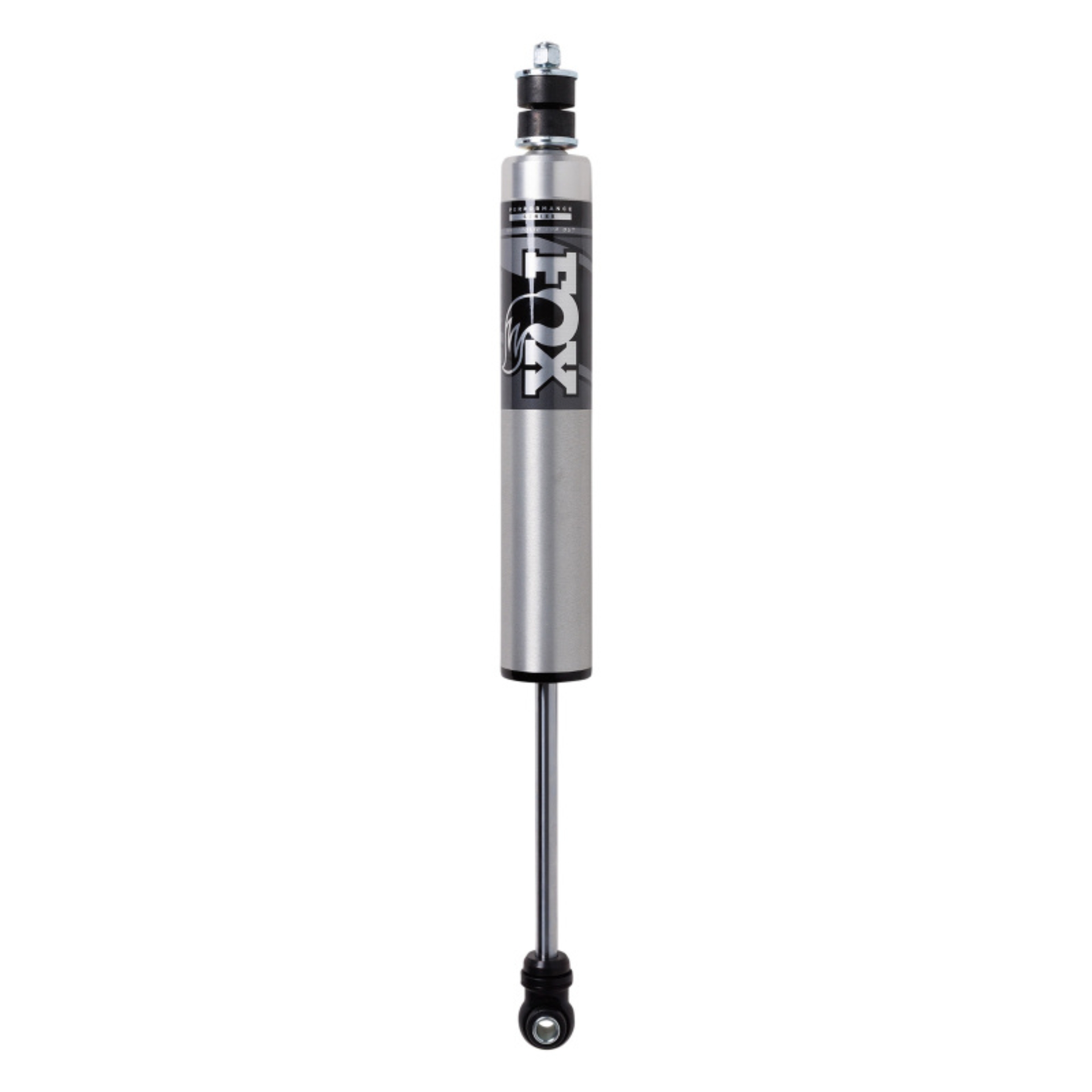

Fox 13+ Ram 3500 0-3in Lift Rear 2.5 Perf. Series IFP HTO Shock
14-ON Ram 3500; Rear; 2.5 Truck PS; IFP; 2-3.5in. Lift; HTO
14-ON Ram 3500, Rear, 2.5 Truck PS, IFP, 2-3.5” Lift, HTO
Application specific valving to maximize performance.
2.5 in. Impact Extruded 6061-T6 Aluminum Shock Body
2.5” Impact extruded 6061-T6 aluminum shock body
PERFORMANCE SERIES 2.5 SMOOTH BODY IFP HTO SHOCK
High-flow velocity-sensitive damping
FOX 2.5 PERFORMANCE SERIES HTO SHOCK
Type II clear-anodized body plating
Fully rebuildable and re-tunable
Internal floating piston (IFP)
Hydraulic Top Out (HTO) piston
Hydraulic Top Out [HTO] Piston
Application specific tune
Suspension Shock Absorber
5/8 in. Hard Chrome Shaft
5/8” hard chrome shaft
Corrosion resistant
2.5 Shock
